Help CenterHigh Precision Beverage Bottling Equipment Bottle Wahing Filling Corking Monoblock Machine
Related Products
-
SS 304 Beverage Bottling Equipment 4000BPH Pneumatic Electric Driven TypeNegotiableMOQ: 1 Set -
Wine Filling Line Juice Bottling Machine 0.2 Mpa - 0.4 Mpa Water PressureNegotiableMOQ: 1 Set
-
Automatic Plastic Can Washing Filling Capping Machine for Beverage ProductionNegotiableMOQ: 1 Set
-
Aluminum Bottle Beverage Filling Production Line EquipmentNegotiableMOQ: 1 Set
-
Compact 330ml-500ml PET Bottle Filling & Labeling EquipmentNegotiableMOQ: 1 Set
Condition: |
New |
Packaging Type: |
Glass Bottles |
Automatic Grade: |
Automatic |
Voltage:: |
AC220V Or AC380V |
Power: |
3.5Kw. |
Filling Volume:: |
0-1000ml,5000ml |
Filling Speed: |
2000-3000bph |
High Precision Beverage Bottling Equipment Bottle Filling
Price term: EXW Jinan, China. It is valid within 20 days.
Payment: 30%TT in advance, 70%TT before shipment.
Delivery: 50 work days.
The above quotation is based on the machines, not include the conveyors.
After–sales service:
We guarantee the quality of the main parts within 12 months. If the main parts go wrong without artificial factors within one year, we will freely provide them or maintain them for you. After one year, if you need to change parts, we will kindly provide you with the best price or maintain it in your site. Whenever you have technical question in using it, we will freely do our best to support you.
Installation and training:
We provide training if the technical engineers of the buyer coming to our company. If the buyer needs our engineer to install and training at buyer's spot, the buyer should pay for the visa cost, air ticket, and accommodation and salary, etc. The engineer’s salary is 120USD per day and the technician’s salary is 80USD per day.
Part Two. Equipments Introduction

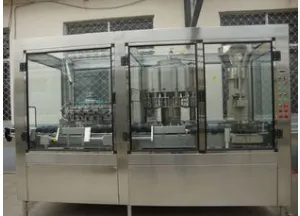

1. Wine Rinsing-Filling-Screw Capping Monoblock Machine
This negative pressure filling machine is used for filling wine. It integrates the washing, filling, screw capping functions on the same machine. The entire process works automatically, used for glass bottle. The filling way adopts new type of negative pressure filling way to make the filling speed faster and more stable. Compared with the same specifications of the machine which is higher production, more benefit. The machine adopts advanced OMRON PLC to control the machine and run automatically, used in the bottle-entering chains inverter speed regulation, and the host frequency converter to cooperate with each other into bottles of operation is more stable and reliable. Photoelectric detects of all parts of operation condition, a high degree of automation, easy operation. No doubt that is the most ideal equipment for the winery factory.
This machine consists of the following main components: (see chart 1)
(1) Transmission mechanism
(2) Into the bottle of institutions
(3) Blunt bottles of institutions
(4) Blunt bottle-filling turn bottle institutions
(5) Filling institutions
(6) Filling –screw capping turn bottles of institutions
(7) Screw capping institutions
(8) Richard covers institutions
(9) Output bottles of institutions
(10) frame
Technology parameter:
Number |
Name |
Parameter |
1 |
Model |
GD-CGFB14/12/4 |
2 |
Rinsing heads |
14 |
3 |
Filling heads |
12 |
4 |
Screw capping heads |
4 |
5 |
Production capacity |
500-1000BPH |
6 |
Overall dimension |
2100*1400*2500(mm) |
7 |
Bottle type |
Diameter:Φ50mm—Φ115mm Height:60mm—320mm |
Send Inquiry to This Supplier
