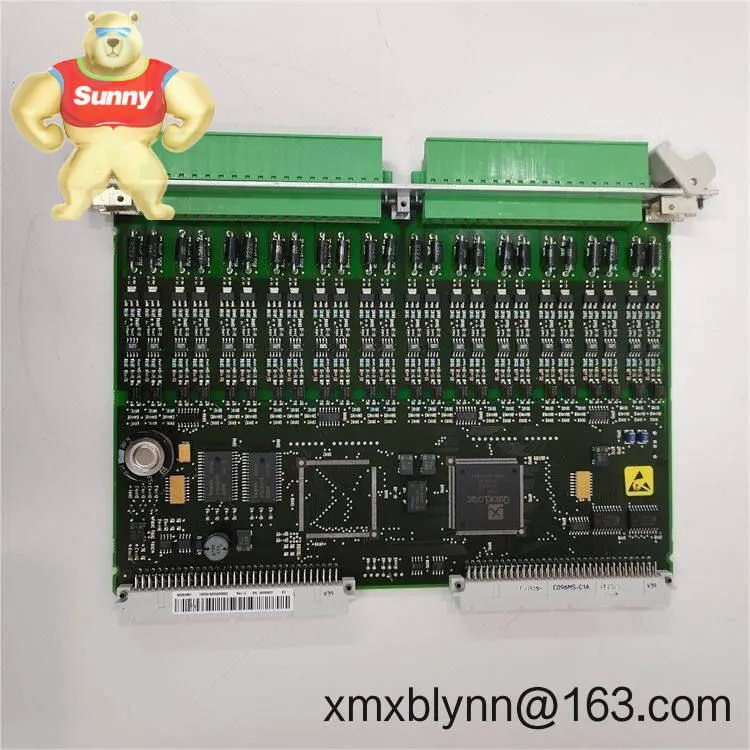

Help CenterABB 500BIM01 (1MRB150024R00026) – Binary Input Module for ABB 500-series Drive/Control Systems
Related Products
-
ABB 500BIO01 (1MRB200060/E) – Binary I/O Module for UNITROL-based Excitation and Turbine ControlNegotiableMOQ: 1 Combo -
ABB 500BOM01 (1MRB150023R0002) – Binary Output Module for ABB 500-platform Drives and Control CabinetsNegotiableMOQ: 1 Combo
-
ABB 500CMP04 HE401314/0001 – Control Processor Board for ABB DC Drive SystemsNegotiableMOQ: 1 Combo
-
ABB 500CPU03 (1HDF700003R5122) – Central CPU Module for ABB 500‑Series Control SystemsNegotiableMOQ: 1 Combo
-
ABB 500CSP04 (1MRB150051R2) – CSP Control Board for ABB 500‑series DC DrivesNegotiableMOQ: 1 Combo
The ABB 500BIM01, ordering code 1MRB150024R00026, is a binary input module designed for ABB 500-series platforms—commonly seen on legacy ABB DC drive systems and related industrial control frames. In most cases it provides opto‑isolated 24 VDC digital inputs to the host controller, making it a straightforward drop‑in for maintenance teams standardizing on the ABB 500 board format.
From my experience, plants use the 500BIM01 to expand or replace discrete input capacity for interlocks, permissives, and machine status signals. It’s a practical spare when you want compatibility without re-engineering the cabinet.
Opto‑isolated digital inputs – Typically 24 VDC sensing with robust noise immunity for industrial environments.
Native 500‑series fit – Plugs into the ABB 500 backplane/slot, keeping wiring and mechanics familiar to maintenance teams.
Channel diagnostics – In many cases includes status indication for quicker commissioning and fault tracing.
Galvanic isolation – Helps protect the controller from field-level transients and ground potential differences.
Service-friendly terminals – Typically pluggable or screw-clamp connections for neat field wiring.
Proven spare part – Commonly used to keep ABB DC drive lines and older installations running with minimal downtime.
| Brand / Model | ABB 500BIM01 (Ordering code: 1MRB150024R00026) |
| Function | Binary Input Module (discrete input expansion for ABB 500‑series systems) |
| Signal Input Types | Digital inputs, typically 24 VDC; opto‑isolated channels (exact count varies by revision) |
| Power Requirements | Powered via ABB 500 backplane; no external supply required in normal use |
| Communication Interfaces | Backplane interface to host controller/drive control board |
| Operating Temperature | Typically 0 to +55 °C (application dependent; cabinet ventilation recommended) |
| Installation Method | Plug‑in 500‑series module; fixed with captive screws; field wiring via front terminals |
| Dimensions & Weight | Compact plug‑in board form factor; typical 500‑series board size and mass |
You’ll typically find the 500BIM01 in ABB DC drive cabinets and retrofit panels where discrete sensing is needed. Common examples include:
Metals and rolling mills – limit switches, motor field permissives, line interlocks.
Pulp & paper – machine status feedback, safety chains (within the safety concept of the system).
Crane and hoist drives – travel/limit indication, brake monitoring, contactor status.
Test benches and OEM machinery – general 24 VDC input aggregation to the host drive/controller.
Compatibility – Designed for ABB 500‑series frames, so integration tends to be straightforward.
Reliability – Opto‑isolation and industrial‑grade design help reduce nuisance trips in noisy cabinets.
Cost Control – A practical spare that limits downtime and avoids full system redesign.
Lifecycle Support – Often stocked for legacy ABB drives, easing maintenance planning for brownfield sites.
Cabinet – Mount in a clean, ventilated enclosure. Follow ABB 500‑series slot assignment and grounding practices.
Wiring – Use 24 VDC discrete wiring with correct common referencing; shielded pairs for long runs; tighten terminal screws to spec.
ESD & Power‑down – De‑energize and observe ESD precautions before removing or inserting the module.
Checks – Verify input polarity and field voltage; confirm LED/diagnostic status on first power‑up.
Routine care – Periodically inspect connectors, clean dust with dry air, and confirm channel operation during planned stop.
Firmware – The module itself typically has no user firmware; keep the host drive/controller firmware current.
Manufacturing quality consistent with ABB industrial electronics.
Typically conforms to CE marking; UL and RoHS compliance may apply depending on region and revision.
Standard manufacturer warranty applies; many buyers plan for a 12‑month coverage window on spare modules.
To round out a 500‑series I/O set, customers commonly pair the 500BIM01 with complementary cards:
500BOM01 – Binary Output Module for driving relays/solenoids (typical 24 VDC outputs).
500AIM01 – Analog Input Module for process signals such as 0–10 V or 4–20 mA.
500AOM01 – Analog Output Module for speed/torque references or control loops.
One thing I appreciate is how these boards keep older ABB systems serviceable without ripping and replacing the entire control layer—especially in plants where every hour of downtime is measured.
