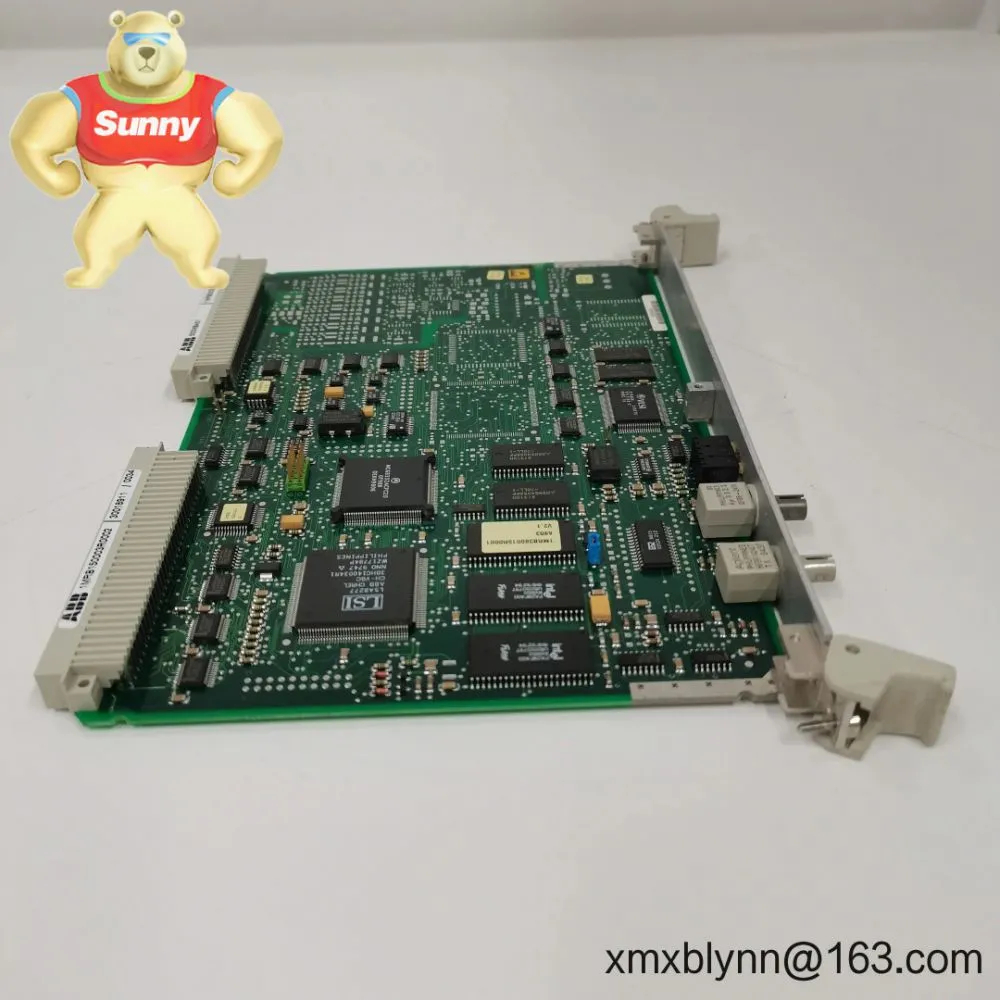

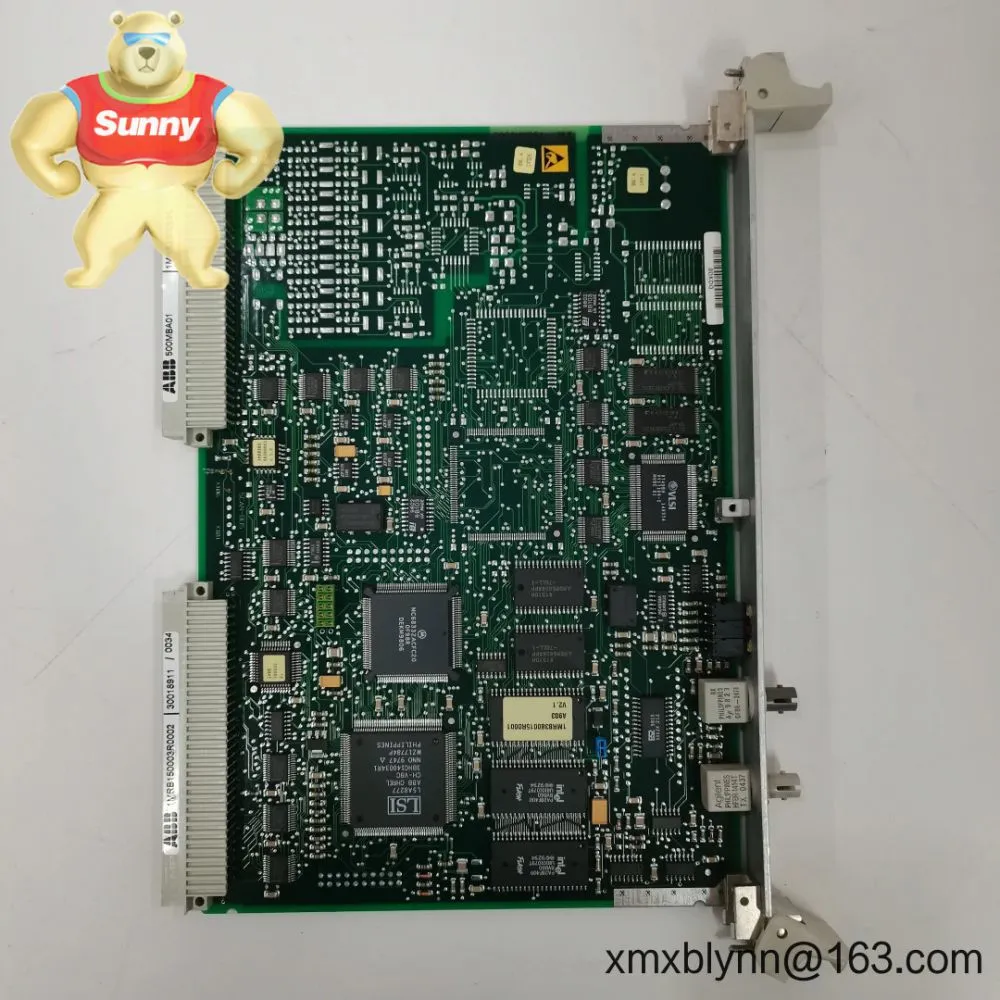

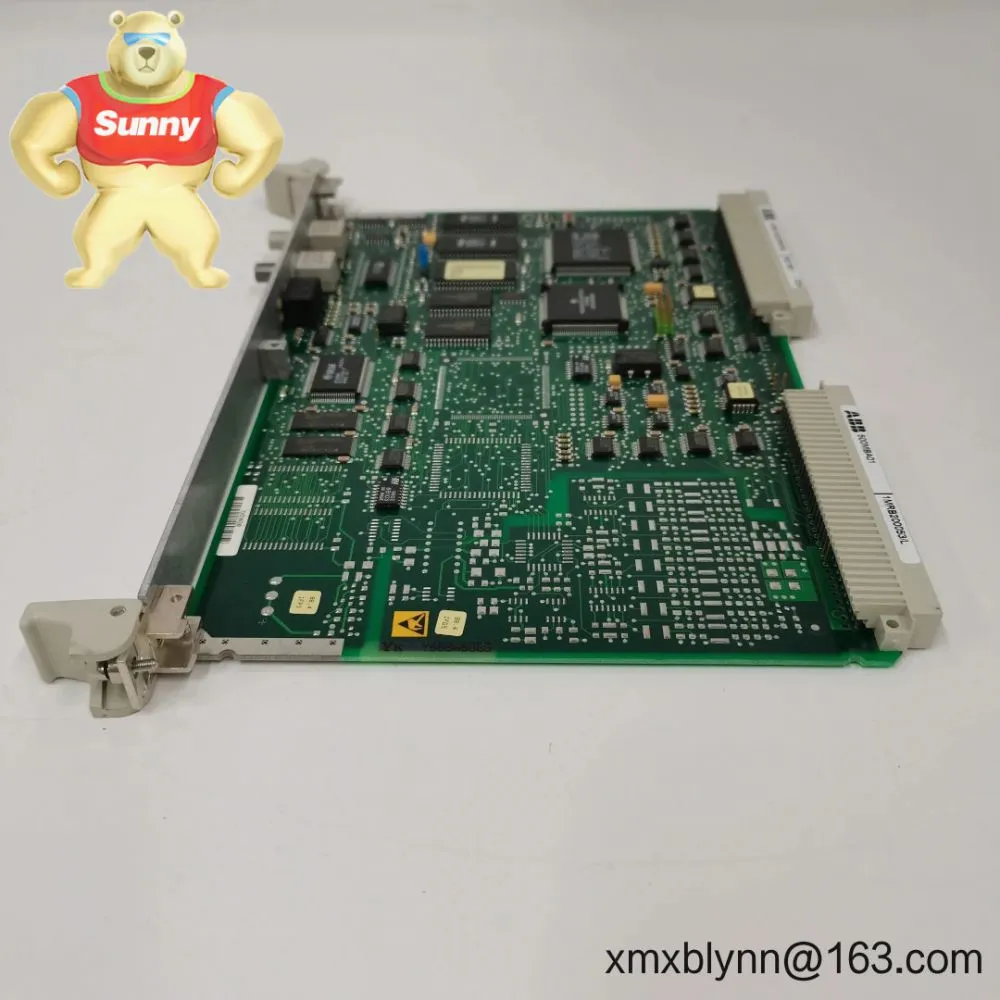

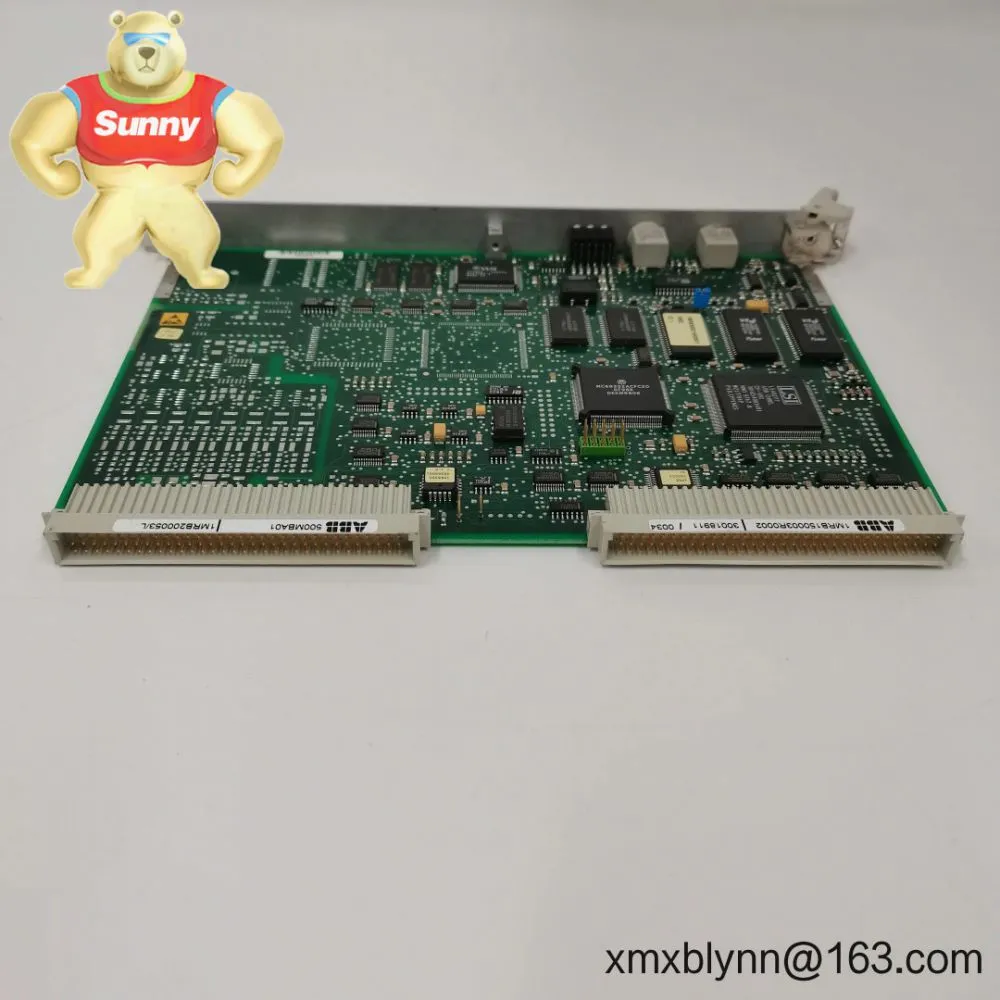

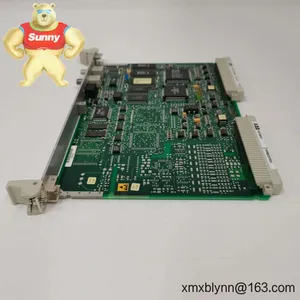

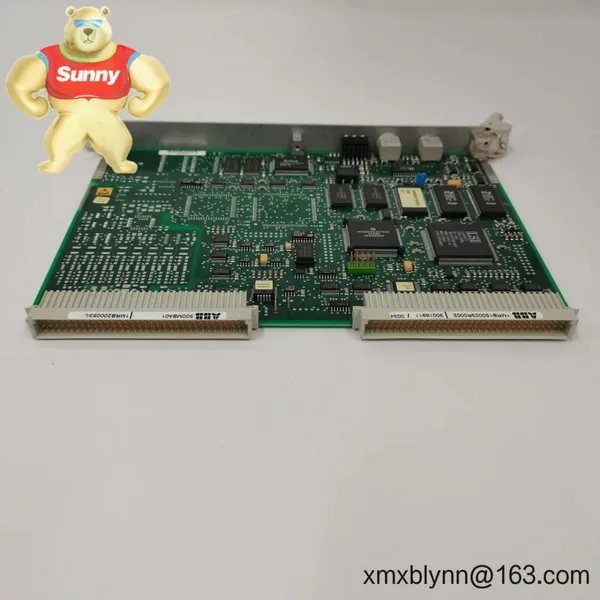

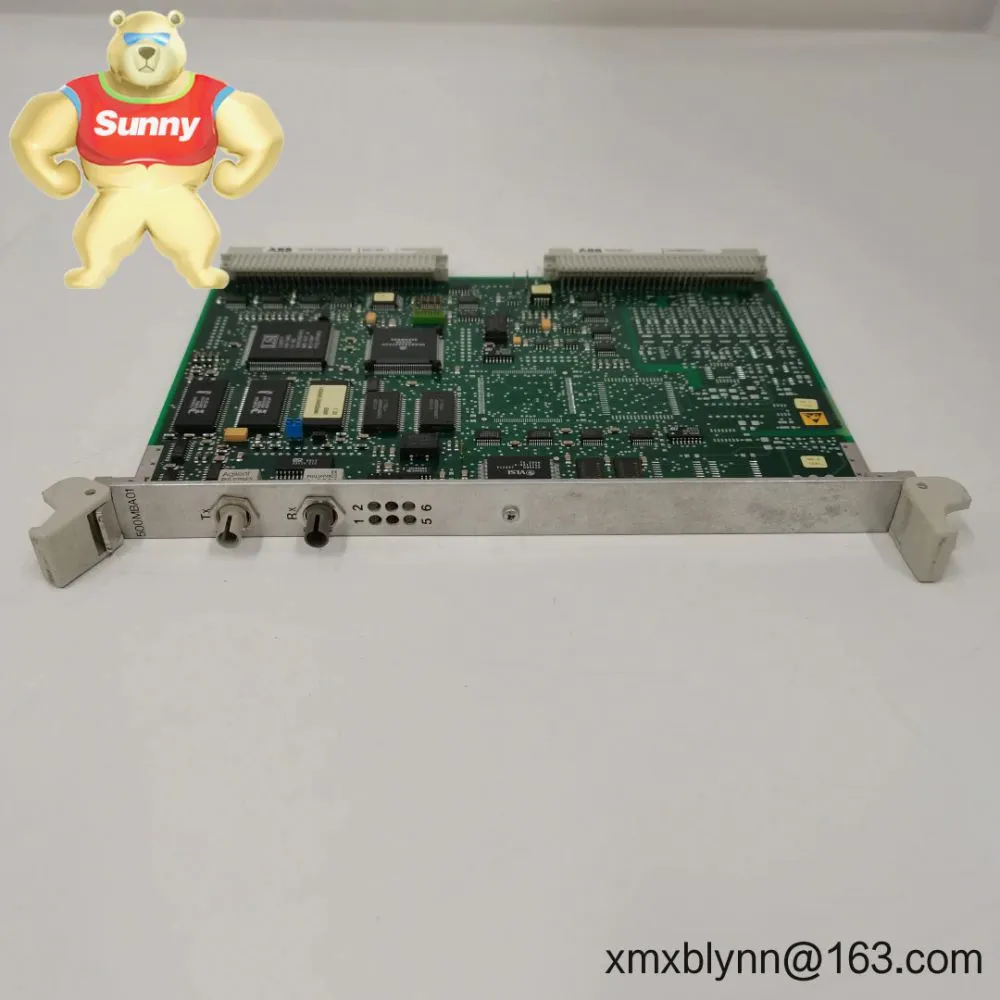

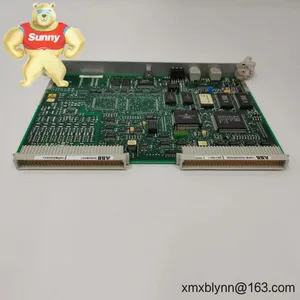

The ABB 500MBA01 (part no. 1MRB200053/L) is a plug-in measurement and interface board typically used inside ABB industrial drive controllers. It handles core analog/digital signal conditioning and feeds accurate process data to the host control unit. You’ll see it applied in drive cabinets where stable feedback, clean I/O, and long-term reliability matter day to day.
Key FeaturesDedicated measurement front end – Conditions voltage/current signals for precise feedback to the drive controller, helping stabilize speed, torque, and process loops.
Mixed I/O capability – Supports typical analog and digital signals used in ABB drive cabinets; opto-isolation helps reduce noise and ground-loop issues.
Backplane integration – Interfaces directly with the host board via onboard connectors; no external power brick required in most cases.
Serviceable design – Plug-in form factor makes swap-outs straightforward, cutting downtime during maintenance.
Robust build quality – Industrial-grade components and conformal coating (in many cases) improve resilience against dust and cabinet humidity.
Firmware/parameter friendly – Works with existing drive parameter sets; typically no PLC code changes when replacing like-for-like.
| Brand / Model | ABB 500MBA01 (Part No. 1MRB200053/L) |
| Role | Measurement & I/O interface board for ABB drive controllers |
| Power Requirements | Supplied by the host controller/backplane (typically 24 VDC rail within the cabinet) |
| Signal I/O Types | Analog (voltage/current), digital I/O; opto-isolated interfaces in most cases |
| Communication | Internal backplane bus connection to the drive control unit; no external network configuration required |
| Operating Temperature | Typically 0…55°C (follows the drive cabinet rating) |
| Installation Method | Plug-in PCB module; secured via standoffs/connectors within the drive control section |
| Dimensions & Weight | Compact footprint PCB; lightweight for quick field replacement |
This board appears most often in ABB-driven applications where stable feedback makes or breaks the process: paper lines, mixers, rolling mills, extruders, and conveyors. From my experience, it’s also common in retrofit programs where a like-for-like swap restores clean signal conditioning without touching the PLC logic.
Metals & mining – steady torque control under high load variations
Pulp & paper – precise web speed feedback, reduced drift over long runs
Chemicals & plastics – smooth extruder speed and temperature loop inputs
General manufacturing – conveyor lines and winding machines needing reliable I/O
Drop-in compatibility – When replacing the same code/variant, you typically avoid software rework and re-commissioning headaches.
Process stability – Clean measurement paths help minimize nuisance trips and erratic speed/torque behavior.
Service efficiency – Fast board swap means less lost production; spares strategy is easy to justify.
Lifecycle support – Compatible with ABB’s documented maintenance practices, keeping the drive platform supportable for years.
“We had intermittent feedback noise on a calender line. Swapping to a new 500MBA01 stabilized the readings immediately—no PLC changes needed.” — Maintenance Supervisor, paper mill
Installation & MaintenanceCabinet environment – Install in a clean, dry, ventilated enclosure; keep within the drive’s rated ambient temperature and humidity.
Handling – Observe ESD precautions; seat the board firmly into the host connectors; verify standoffs and fasteners are snug.
Wiring – Use shielded twisted-pair for analog lines; tie shields at one end to avoid ground loops. Route power and signal cables separately.
Safety – Isolate and lock out the cabinet supply; wait for DC bus discharge as per the drive manual before opening the control section.
Upkeep – Periodic dust removal with dry air; check connector oxidation annually; back up the drive parameters after any board replacement.
Calibration/firmware – Parameter checks and firmware alignment should follow the associated drive service instructions; record any trim values applied.
Shielded I/O harnesses and terminal kits for analog/digital channels
Backplane connector set and mounting hardware for the control section
Encoder/feedback interface modules where the drive application requires it
Surge protection and cabinet filtration to keep noise within tolerance
Manufactured to ABB’s industrial quality standards; components used in CE and UL certified drive systems
RoHS compliance typically applicable for the spare board
Factory warranty is typically 12 months when sourced through authorized channels
Traceability via part code 1MRB200053/L for variant identification
You might notice that replacement goes quickest when the exact variant (1MRB200053/L) matches your existing board. If the cabinet nameplate shows a different suffix, send the code and drive type; we can verify interchangeability before you schedule downtime.
