Welcome to Zhaoqing City Greater Technology Co., Ltd
Now we not only offer previous machines, but also work with more factories directly.
We are in good position to offer more and better heater machines and heating supplies /service to customers.
ZhaoQing Greater is a professional auto pipe cutting machine for tubualr heaters, auto cutting machine a a main cutting machine for heater machinery, it suitable for tubular heater production, cartridge heaters produciton, hot runner heater making, industrial heaters
Item No.:GT-CT15/30
Motor Power: 380V 50HZ 750W
Max Inner Diameter: Φ15mm
Air supply: 0.6Mpa clean compressed air

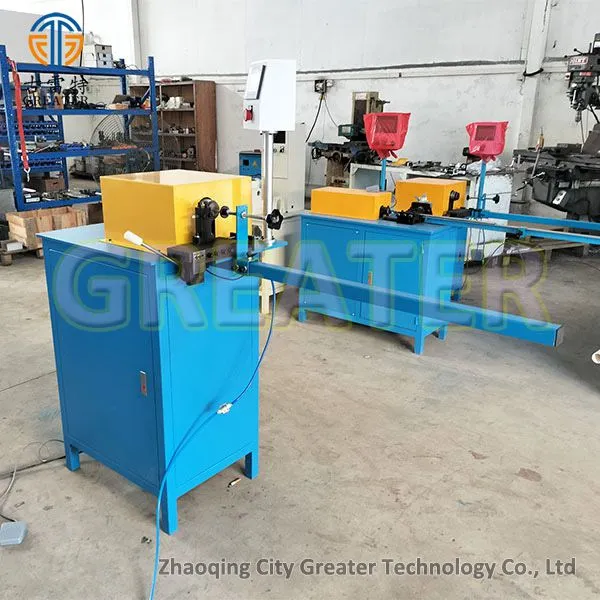

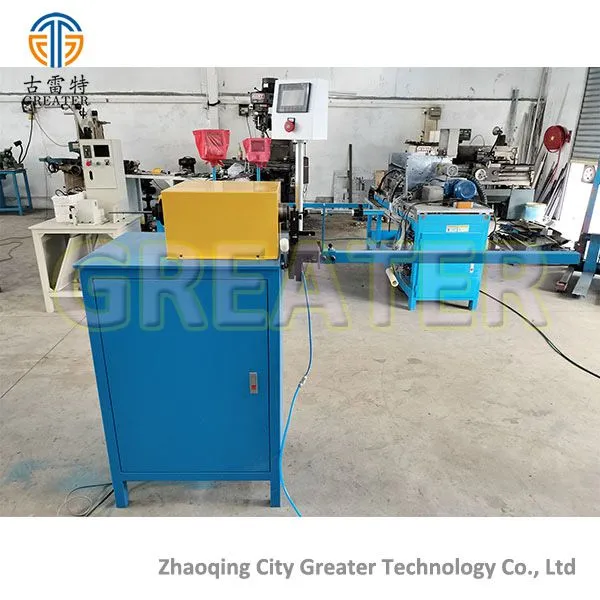

GT-CT15/30 tube Cuttiing Machine uses a set of rotation fixtures. Tubes are rotated by elastic chucks. Slicer blade will cut the tubes, which is controlled by blade angle.
There is almost no bur on the head faces of the cut tubes. This cutting way saves a lot of tube bur cleaning which will happen in other cutting ways. Pneumatic mechanism controls the elastic chucks and works together with cutters.
Production efficiency is rather high. It can cut 8000 to 10000 tubes in one shift. Position-limit mechanism is used to adjust and control the cutting length. When using this machine, users must make charging barrels and brackets themselves according to the machine's center height.
Power: 0.75KW
Cutting speed: according to the specification of the tubes, usually about 10000 pcs / 8 hour
Tubes can be cut: Φ5-Φ15mm are ok
Motor power: 3phase 380V 50HZ or according to customer
Main Structure and Performances

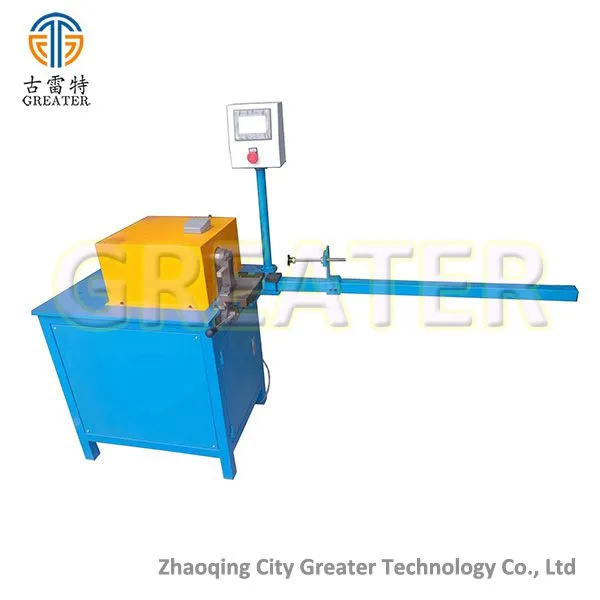

GT-CT15(30) tube cutting machine: Manual operating machine is designed to meet the requirements of many sizes and small quantity of pipes cutting (such as cartridge heaters). The machine uses elastic chuck to clamp, so that it can change the chuck (specification) more quickly and conveniently. GT-CT15(30) tube cutting machine suitable for copper pipes, iron pipes, stainless steel pipes, aluminum pipes, etc.
Main models and technical parameters:
model |
diameter/length |
productivity |
speed |
power |
air supply |
size |
weight |
|
GT-CT15 GT-CT30 |
Ф5-15mm; Ф5-30mm; |
5000-10000pcs/8h |
900rpm1800rpm |
380V/50HZ/ 0.75KW |
5-7Kg/cm³ |
800*600*800mm |
200KG |
