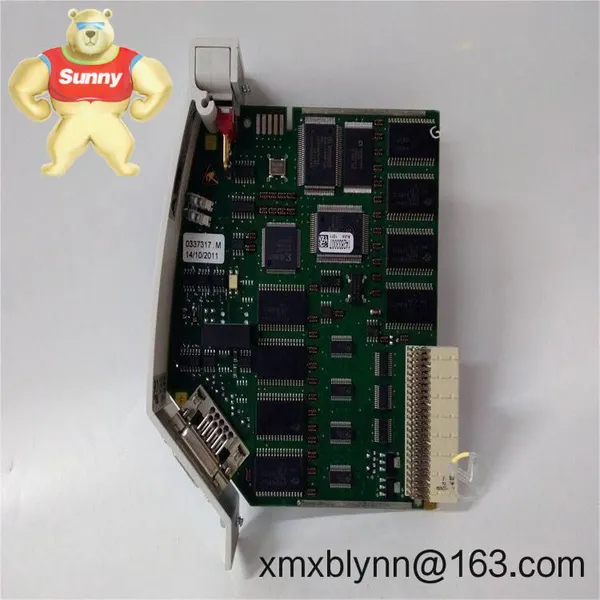

Help CenterABB FI810F (3BDH000030R1) – PROFIBUS DP-V1 Fieldbus Interface for Freelance AC 800F
Related Products
-
ABB GD9924BE V2 (HIEE401091R0002) – Plug‑in Controller Interface Board for Advant OCS RacksUS$ 4360.00MOQ: 1 Combo -
ABB GDC801B101 (3BHE051592R0101) – Gate Drive Controller Board for ABB Medium-voltage Drive StacksUS$ 4360.00MOQ: 1 Combo
-
ABB GDC806A0101 (3BHE028761R0101) – Gate Drive Controller Board for High-Power/Medium-Voltage Drive SystemsUS$ 4360.00MOQ: 1 Combo
-
ABB GDB021BE01 (HIEE300766R0001) – Advant/MasterPiece Rack Module for System Expansion and Lifecycle ServiceUS$ 4360.00MOQ: 1 Combo
-
ABB GDD360C (3BHE047217R0101) – Gate Driver Board for IGCT Power Stacks in Medium-Voltage DrivesUS$ 2360.00MOQ: 1 Combo
Warranty period: 365 days
Delivery time: 1 week for in-stock items; no more than one month at the latest
Payment: 50% advance payment; full payment before delivery
Express delivery: FedEx, UPS, DHL
PROFIBUS DP-V1 master – Handles Class 1 master tasks for cyclic I/O; acyclic parameterization is supported for smart devices.
Auto-baud up to 12 Mbit/s – Typically locks onto existing bus speed, which simplifies brownfield upgrades.
Robust RS-485 physical layer – Shielded, twisted-pair with standard 9-pin D-Sub connection; galvanic isolation between bus and system.
Tight integration with Freelance – Engineering via Control Builder Freelance using standard GSD files; smooth device mapping and diagnostics.
Segment scalability – Standard RS-485 segment rules apply (up to 32 nodes per segment without repeaters; more with properly powered repeaters).
Status LEDs and clear diagnostics – Speeds up troubleshooting for cabling, termination, or device timeouts.
Compact DIN-rail design – Fits alongside AC 800F modules; wiring and front access are straightforward.
| Brand / Model | ABB FI810F (Part No. 3BDH000030R1) |
| Function | PROFIBUS DP-V1 fieldbus interface (Class 1 Master) for Freelance AC 800F |
| HS Code | 8538.90 (Parts for switchgear/control apparatus) |
| Power Requirements | 24 V DC (typical 19.2–30 V DC), consumption typically |
| Communication Interfaces | PROFIBUS DP (RS-485), 9-pin D-Sub; 9.6 kbps to 12 Mbps, DP-V0/DP-V1 |
| Signal I/O Types | Fieldbus interface only (no direct analog/digital channels) |
| Dimensions & Weight | Approx. 130 × 71 × 60 mm; ~0.25 kg |
| Operating Temperature | 0 to +55 °C (storage typically −25 to +70 °C) |
| Installation Method | DIN-rail mounting on AC 800F module carrier; front-access connectors and status LEDs |
| Isolation | Galvanic isolation between PROFIBUS and system side |
The FI810F typically sits at the heart of brownfield and greenfield process automation projects where PROFIBUS remains a solid choice:
Chemicals and specialty chemicals – Connecting DP drives, weigh scales, and remote I/O in hazardous-adjacent areas (with suitable field devices).
Water & wastewater – Integrating remote MCCs, valve islands, and instrumentation across long runs using RS-485.
Power generation – Turbine balance-of-plant skids, utility systems, and package equipment with standard GSD catalogs.
Oil & gas (midstream/downstream) – Compressor skids, burner management interfaces, and flow computers with DP-V1 capability.
Food & beverage – Packaging lines, servo drives, and I/O slices on conveyor cells.
A commissioning engineer told us that switching a mixed-vendor DP segment onto FI810F “took one afternoon, including address audit and a few terminator flips.” That seems to be the norm when the physical layer is clean and the GSD set is prepared.
Reliability – Stable DP master behavior with clear diagnostics; fewer nuisance timeouts when cabling and termination follow spec.
Compatibility – Works with a wide range of DP slaves using standard GSDs; DP-V1 acyclic access helps with parameter-heavy devices.
Lifecycle-friendly – A practical drop-in when maintaining existing PROFIBUS assets without forcing a protocol migration.
Cost savings – Uses existing DP wiring and connectors; typically avoids re-pulling cable during controller modernization.
Technical support – Well-documented within the Freelance environment; predictable engineering workflow.
Cabinet & mounting – Mount on DIN rail with the proper AC 800F carrier. Provide ventilation; keep ambient within 0…55 °C.
Power – 24 V DC supply with appropriate grounding. Keep fieldbus cable shielding bonded at cabinet entry.
Wiring – Use PROFIBUS cable Type A. Maintain correct D-Sub pinout. Enable termination only at both physical ends of each segment.
Segment design – Up to 32 nodes per RS-485 segment without repeaters; more with powered repeaters. Observe length vs. speed rules (e.g., 100 m at 12 Mbps; longer at lower speeds).
EMC practices – Separate signal and power wiring, use shield clamps, and avoid star topologies on DP.
Maintenance – Periodically inspect connectors and terminators; clean dust; verify device addresses. Firmware updates can be scheduled during planned downtime.
Spare strategy – Keeping one FI810F on the shelf typically shortens recovery time; hot swap is possible in many cases, but follow ABB procedures.
CE conformity; RoHS compliant
UL/cUL Recognized (typical for ABB control modules)
Manufacturing quality aligned with ISO 9001 processes
Manufacturer warranty practices typically apply; we provide a 365-day warranty on supply
PROFIBUS DP D-Sub connectors with integrated terminators (right-angle or straight)
PROFIBUS Type A shielded cable; DIN-rail shield clamps and grounding kits
PROFIBUS repeaters/isolators for long segments or heavy node counts
Labeling sets and ferrules for cleaner commissioning records
One thing I appreciate is how consistent the FI810F behaves across device families—drives, ET200-class I/O, valve islands. In many cases, if the GSD is clean and the bus is properly terminated, you get a stable scan without tweaking obscure settings.
