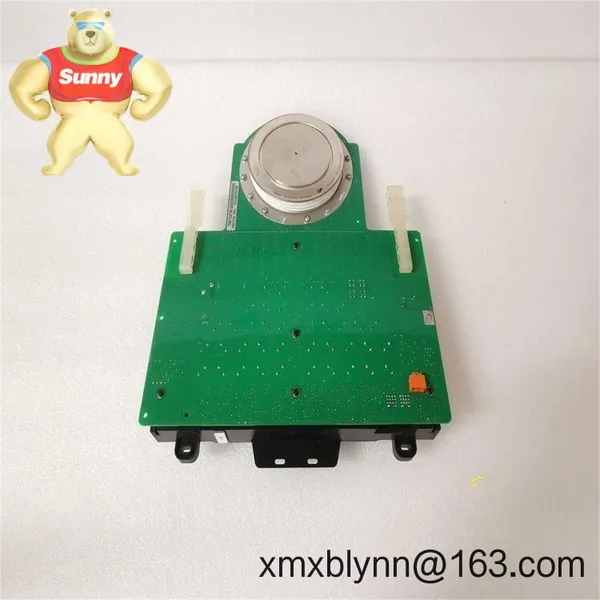

Help CenterABB 5SGY3545L0002 IGCT Power Module – Robust Switching for Medium-voltage Drives and Grid Converters
Related Products
-
ABB 5SGY3545L0008 IGCT Module – Reliable Switching for Medium‑voltage Drives and Power ConversionUS$ 2360.00MOQ: 1 Combo -
ABB 5SHX06F6010 IGCT Module – High-reliability Press-pack Device for Medium-voltage Drives and ConvertersUS$ 2360.00MOQ: 1 Combo
-
ABB 5SHX26L4520 IGCT Gate Unit – Reliable Drive Module for High-power IGCT StacksUS$ 4360.00MOQ: 1 Combo
-
ABB IGCT Gate Unit 5SHY3545L0002 (CVC750BE101) – Reliable Driver Module for Medium-voltage Converter StacksUS$ 7360.00MOQ: 1 Combo
-
ABB 5SHX19L6020 IGCT Gate Unit – Robust, Fiber‑optic Driver for High‑power ConvertersUS$ 3360.00MOQ: 1 Combo
Warranty: 365 days
Delivery: 1 week if in stock; no more than 1 month at the latest
Payment: 50% advance; balance prior to delivery
Express: FedEx, UPS, DHL
High-voltage, high-current class – The 3545 code is commonly associated with 3.5 kA / 4.5 kV ratings, suiting medium-voltage converters.
Press-pack construction – Metal-to-metal contacts provide uniform current sharing, low thermal resistance, and excellent short-circuit robustness.
Integrated gate concept – Optimized gate drive path for fast turn-off and low switching losses compared with classic GTO solutions.
Low-inductance layout – Designed to work with laminated busbars and compact stacks, reducing overshoot and improving EMI behavior.
Fiber-optic control (typical) – Many ABB IGCT gate units use fiber-optic Rx/Tx links for noise-immune triggering and status feedback.
Proven field reliability – In many cases, customers choose IGCTs for long service intervals in demanding industrial duty cycles.
| Brand / Model | ABB 5SGY3545L0002 |
| Device Type | IGCT power module (press-pack based, integrated gate concept) |
| Voltage / Current Class | 4.5 kV class, ~3.5 kA class (typical for “3545” coded ABB IGCTs) |
| HS Code | 8541.30 (Thyristors, diacs and triacs) |
| Gate Unit Supply (typ.) | 24 VDC nominal for the gate unit, isolated supply |
| Control Interface (typ.) | Fiber-optic Rx/Tx links for trigger and status (varies by gate unit variant) |
| Cooling Method | Press-pack clamped to heat sinks; air or liquid-cooled stacks depending on design |
| Operating Junction Temp. (typ.) | Up to 125°C class for silicon IGCTs (application dependent) |
| Installation Method | Press-pack clamping with specified force; low-inductance busbar connections; fiber link to control |
Typical uses include:
Medium-voltage drives for compressors, pumps, rolling mills, and marine propulsion
Reactive power compensation: STATCOM/SVC converters
High-power rectifiers and DC-links in industrial power supplies
Traction and grid-tied converters where low losses and rugged turn-off are required
A maintenance lead at a steel plant told me their IGCT stacks “ran through several peak seasons with fewer nuisance trips” after shifting from older GTO assemblies—seems to be the common story when layout and clamping are done right.
Reliability – Press-pack contact and robust silicon offer predictable thermal paths and fault handling.
Efficiency – Low conduction and optimized turn-off help reduce system losses, especially in multi-MW drives.
Compatibility – Works with standard laminated busbars, fiber-optic triggering, and common MV converter topologies.
Lifecycle cost – Longer service intervals and stable performance can lower maintenance budgets over time.
Technical support – Application notes and mounting guidelines from ABB make stack design more predictable.
Cabinet and environment – Use a sealed, ventilated cabinet; keep dust and conductive particles away from the stack and fiber connectors.
Clamping – Apply the manufacturer-specified force uniformly across the press-pack faces. For this class of device, the force typically falls in a high kN range; use calibrated disc springs and torque procedures.
Thermal path – Ensure flatness and cleanliness of heat sink interfaces; apply the recommended thermal compound sparingly and evenly.
Wiring and busbars – Keep commutation loops short; laminated busbars help minimize stray inductance and voltage overshoot.
Gate unit – Provide isolated 24 VDC power (typ.); route fiber-optic Rx/Tx with gentle bend radius and clean connectors periodically.
Safety – Pre-charge the DC link, verify discharge before service, and follow lockout-tagout; the device stores significant energy through external capacitors.
Routine checks – Inspect clamping hardware, retorque per schedule, check thermal performance, and, if applicable, update gate-unit firmware after qualification tests.
Fiber-optic gate unit (24 VDC) – ABB-style IGCT gate drivers with Rx/Tx links and isolated supply for 4.5 kV class stacks.
Fast recovery diodes, 4.5 kV class – For freewheel/anti-parallel paths in chopper or inverter legs.
Snubber capacitors and resistors – dv/dt control and energy absorption; choose low-ESL film capacitors sized for the switching profile.
Press-pack clamps and disc springs – To achieve and maintain the specified clamping force over temperature.
Laminated busbars and copper spreads – Reduce loop inductance and balance current between parallel paths.
Liquid or high-capacity air-cooled heat sinks – Sized to keep junction temperature within target at the worst-case duty cycle.
RoHS and REACH compliant (typical for ABB semiconductor components)
Manufactured under ISO 9001 / ISO 14001 quality systems
Component-level CE/UL marking is generally not applicable to discrete power semiconductors
Warranty: 365 days
One thing I appreciate is how ABB’s IGCT platform scales—if your duty cycle or ambient conditions are a little harsher than usual, there’s typically a matching gate unit and cooling path to keep margins where you want them. If you’d like, share your DC-link voltage, switching frequency, and target current per device and I can suggest a stack configuration around 5SGY3545L0002 that has comfortable margins.
