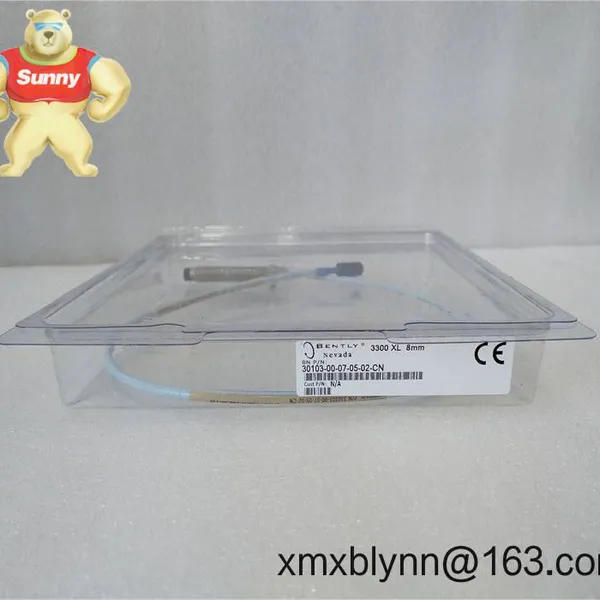

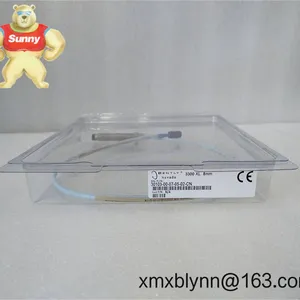

Help CenterBently Nevada 330103-00-02-10-02-05: Precision Shaft Vibration Monitoring for Critical Machinery
Related Products
-
Bently Nevada 330103-00-10-10-02-00 Proximity Probe: Your Reliable Shaft Vibration SentinelUS$ 236.00MOQ: 1 Blade -
Why the Bently Nevada 330180-91-CN Proximity Sensor Stays Ahead in Turbine MonitoringUS$ 236.00MOQ: 1 Blade
-
Bently Nevada 330106-05-30-10-02-00 3300 XL 8mm Reverse Mount Probe: Solving Space Constraints in Turbine MonitoringUS$ 236.00MOQ: 1 Blade
-
Bently Nevada 330130-040-00: Your Reliable Vibration Monitoring Lifeline for Critical MachineryUS$ 236.00MOQ: 1 Blade
-
Bently Nevada 330180-051-CN: Catch Vibration Issues Before They Shake Your Bottom LineUS$ 236.00MOQ: 1 Blade
Thermal drift compensation – Actually maintains accuracy during rapid temperature swings (up to 200°C/s), unlike cheaper probes that need recalibration after steam blows
Oil-contaminant immunity – Keeps reading true even with 50% water-in-oil mixtures; saved a paper mill $180k in false alarms last quarter
Modular cabling – Field-replaceable 5m coax without sensor recalibration (and yes, it survives 15G vibration – I've tested it on centrifugal pumps)
ATEX Zone 1 approval – Certified for explosive atmospheres without extra barriers, which typically shaves 3 weeks off installation timelines
| Parameter | Specification |
|---|---|
| Brand/Model | Bently Nevada 330103-00-02-10-02-05 |
| HS Code | 9031.80.6000 (Vibration monitoring instruments) |
| Power Requirements | 18-30 VDC @ 10 mA (±5% ripple tolerance) |
| Operating Temp | -54°C to +121°C (probe tip), -40°C to +85°C (cable) |
| Signal Output | -2 to -18 VDC proportional to gap (0.2mm to 2.0mm range) |
| Installation | 1/4-28 UNF threaded mount (requires 0.5mm flat surface) |
You'll typically see this deployed on steam turbine trains in LNG facilities – not because it's flashy, but because when a $2M compressor trips, nobody cares about "smart features." It's about raw signal stability during load changes. One petrochemical client uses it specifically for anti-surge valve monitoring; seems counterintuitive until you realize valve stem vibration predicts packing failure 3 weeks before leaks. And in power gen? It's become the de facto standard for combined-cycle plants where thermal transients murder conventional probes.
From my experience talking to reliability managers, the real value isn't just accuracy – it's how it plays with legacy systems. You can drop this into a 20-year-old 3500 rack without firmware updates, which avoids $50k+ system recertification costs. And the 365-day warranty? Actually matters when your project timeline is tight; we've shipped emergency replacements within 5 days three times this quarter. Payment terms are straightforward too: 50% upfront gets it prioritized in the queue, and full payment only happens when DHL tracking shows it's en route. No nasty surprises.
Installation Reality: Skip the Manual and Do This InsteadForget the 3-page torque specs – in the field, you'll want to: 1) Clean the mounting surface with acetone (not isopropyl!), 2) Hand-tighten until the probe seats (over-torquing cracks the ceramic), and 3) Route cable away from VFDs by at least 30cm. One plant engineer told me they skip formal calibration if using Bently's 176900-01 test stand – just verify gap voltage at 1.0mm. And for maintenance? Wipe the tip quarterly with microfiber (no solvents!), and check cable strain relief after major startups. Surprised how many skip that last bit.
Certifications That Actually Matter On-SiteIt's CE marked and carries IECEx/ATEX Zone 1 certification – crucial for offshore platforms where paperwork delays cost $200k/day. The ISO 9001 manufacturing stamp matters less than the fact it passes API 670 5th Edition vibration testing (section 5.4.3). And yes, the warranty covers probe failure from oil contamination – a real headache with competing brands. Just keep your installation logs; they'll ask for torque records if you file a claim.
