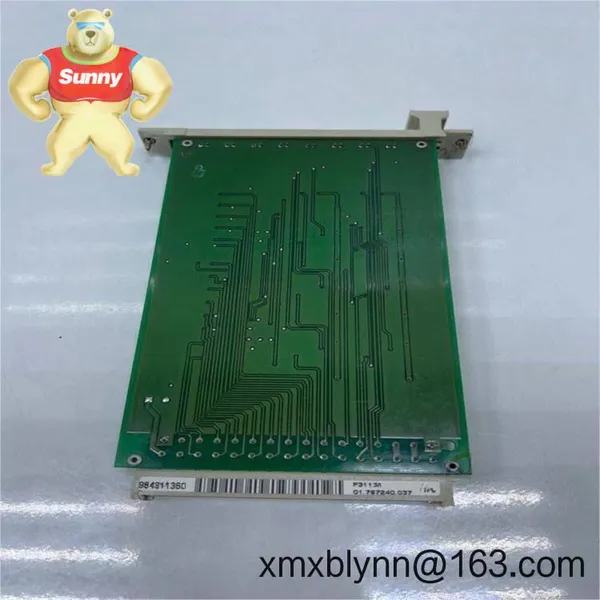

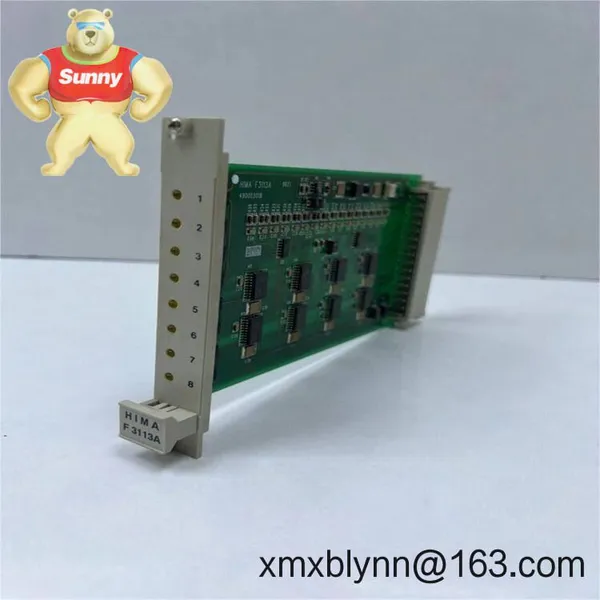

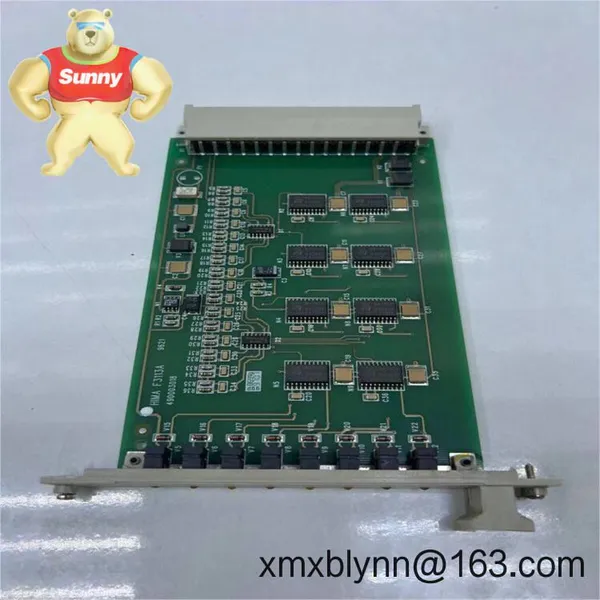

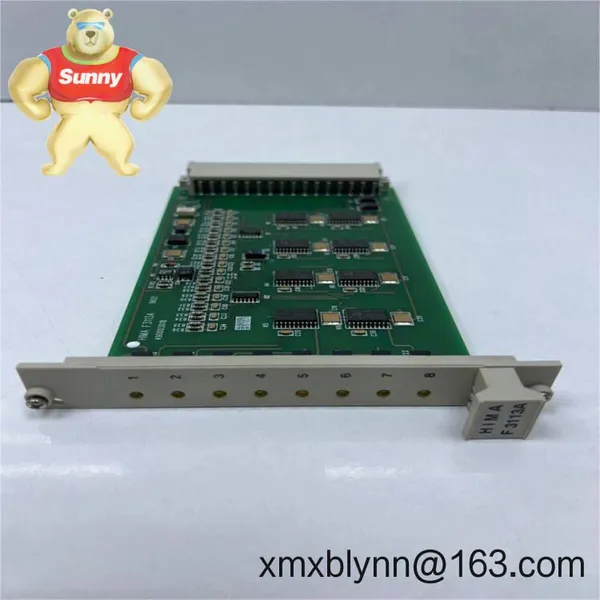

Help CenterHIMA F3113A: Your Reliable SIL3 Digital Input Module for Critical Safety Shutdowns
Related Products
-
HIMA F3225: Your Reliable Digital Input Workhorse for Critical Safety SystemsUS$ 1300.00MOQ: 1 Blade -
HIMA F3223 Digital Input Module: The Silent Guardian for Critical Safety SystemsUS$ 1300.00MOQ: 1 Blade
-
HIMA F3226 Compact Digital Input Module: Rock-Solid Safety Signals for Critical ShutdownsUS$ 1300.00MOQ: 1 Blade
-
HIMA F3311 Programmable Safety Controller Module: Your SIL 3 Guardian for Critical ProcessesUS$ 1300.00MOQ: 1 Blade
-
HIMA F3313: Your Plant's Digital Output Workhorse for Critical Safety ShutdownsUS$ 1300.00MOQ: 1 Blade
✓16-channel redundancy – Processes valve position feedback and emergency stops without single-point failures. In practice, this means you can replace a failed channel while the system stays live.
✓True SIL3 certification – Not just paperwork; HIMA actually publishes the full FMEDA reports. From my experience, this saves weeks during safety validation audits.
✓Hot-swap capability – Swapped one out last Tuesday on a running ethylene plant without dropping the SIF. The mechanical keying prevents mismatched module insertion – a small thing that avoids costly errors.
✓Voltage range flexibility – Handles 10-30V DC inputs. Typically eliminates those annoying field wiring issues when sensor voltages dip during storms.
| Parameter | Specification |
|---|---|
| Brand/Model | HIMA F3113A |
| HS Code | 8537.10.00 (Programmable controllers) |
| Power Requirements | 24V DC ±15%, max 2.5A via backplane |
| Dimensions & Weight | 120 x 100 x 75mm / 420g (typically) |
| Operating Temperature | -20°C to +60°C (derate above 50°C) |
| Signal Input Types | Dry contacts or 10-30V DC PNP/NPN |
| Communication Interfaces | HIMax backplane bus only (no external comms) |
| Installation Method | DIN rail TS-35/7.5 or 15mm |
You'll typically find this module guarding high-consequence processes: emergency shutdown valves in LNG terminals, turbine overspeed protection, or reactor pressure interlocks. A pharma client recently used it for their bioreactor sterilization sequence – the dual-channel diagnostics caught a failing temperature sensor before batch contamination occurred. It's not for general automation; this thing lives where failure means serious safety incidents.
Let's be real – the initial cost isn't the story. One refinery project saved $180k in engineering hours because the F3113A's diagnostics integrated directly with their existing HIMA Safety Matrix software. You might notice fewer spurious trips compared to generic modules, which matters when each shutdown costs five figures. And unlike some competitors, HIMA actually provides lifetime firmware updates – we've had clients running these since 2015 with no obsolescence headaches.
Installation & Maintenance Reality CheckSkip the fancy climate-controlled cabinets – this runs fine in standard NEMA 4X enclosures. But don't cram it next to VFDs; maintain 50mm clearance on both sides for airflow. One thing I've seen trip people up: the input wiring needs shielded twisted pair grounded at controller end only. For maintenance? The LEDs tell 80% of the story, but schedule quarterly verification tests using HIMA's ProSa software. And yes, you should update firmware during planned outages – that 2022 update fixed a rare brownout recovery bug.
Quality Assurance You Can VerifyCarries full TÜV-certified SIL3 accreditation (certificate available on request), CE, and UL 61010-1. RoHS compliant with lead-free soldering. The warranty's straightforward: 365 days from commissioning date, covering defects in materials/workmanship. No fine print about "only valid with HIMA controllers" – it works as promised in any certified HIMax system.
Ordering & Delivery DetailsWarranty period: 365 days
Delivery time: 1 week for in-stock units, no more than one month at the latest
Payment method: 50% advance payment, full payment prior to delivery
Express delivery: FedEx, UPS, or DHL with real-time tracking
