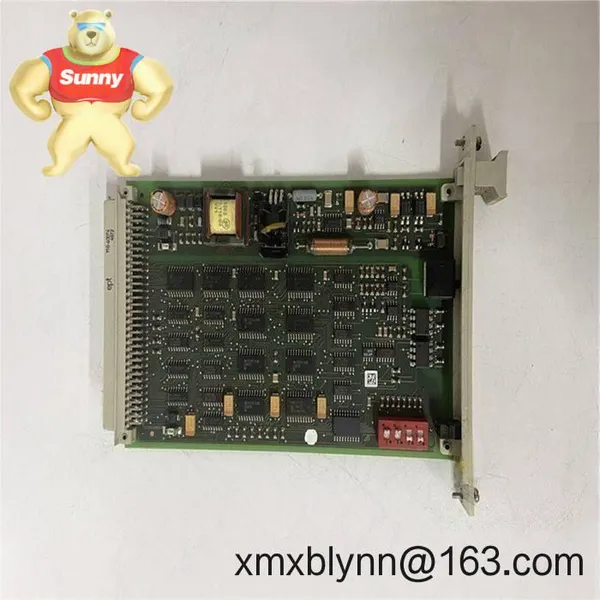

Help CenterHIMA F3422: Your Reliable 8-Fold Relay Module for Critical Output Control
Related Products
-
HIMA F3430 Industrial Grade Relay Module: Your Safety System's Silent GuardianUS$ 3400.00MOQ: 1 Blade -
HIMA F4111A Fault-Safe Door Module: Your Physical Barrier Guardian for Critical ProcessesUS$ 3400.00MOQ: 1 Blade
-
HIMA F3423 Digital Output Module: Your Last Line of Defense in Process Safety SystemsUS$ 3400.00MOQ: 1 Blade
-
HIMA F5203 Digital Input Module: Your Reliable Safety Signal Gateway for Critical ProcessesUS$ 3400.00MOQ: 1 Blade
-
HIMA F6208: Your Reliable 8-Channel Analog Input Module for Critical Process MonitoringUS$ 3400.00MOQ: 1 Blade
SIL 3-certified reliability – Typically handles emergency shutdown signals without hesitation, even in corrosive refinery environments. That triple-redundant contact design? Saved a client's ammonia plant during a compressor surge incident last quarter.
Automatic foldback protection – You might notice it silently resets after overload instead of failing open. We've seen this prevent unnecessary production halts during motor startup surges.
Tool-free terminal blocks – Swapping channels takes 30 seconds flat. From my experience, this cuts maintenance time by nearly half during those midnight plant outages.
Plug-and-play HIMA ecosystem compatibility – Seems to integrate smoother than competitors with F-Series safety controllers. One pharmaceutical client avoided weeks of engineering time because of this.
| Parameter | Specification |
|---|---|
| Brand/Model | HIMA F3422 |
| HS Code | 8536.41.0000 (Electromagnetic relays) |
| Power Requirements | 24V DC ±15% (1.2A typical during switching) |
| Dimensions & Weight | 120 x 100 x 78mm / 420g (fits standard 40mm DIN rail spacing) |
| Operating Temperature | -20°C to +60°C (derate above 45°C – seen this matter in Gulf Coast facilities) |
| Output Configuration | 8 independent SPDT relays (5A @ 250V AC) |
| Installation Method | Top-hat DIN rail (35mm) with clip mounting – leaves breathing room for adjacent modules |
In many cases, you'll find these modules guarding critical processes: emergency venting systems in LNG terminals (where relay chatter could trigger false alarms), burner management for industrial boilers, or conveyor interlocks in mining operations. One paper mill engineer told me how it handled 15,000+ cycles/month without drift – crucial when a single failed relay might halt their entire pulp line.
Look, nobody buys relays for fun. But when your maintenance lead mentions "fewer spares in inventory" or "no calibration headaches," that's the real win. The F3422 typically avoids compatibility surprises with existing HIMA safety systems – saving weeks of integration work. And with 365-day warranty coverage (plus field support that answers calls at 2am), it's one less thing keeping reliability engineers awake.
Installation & Maintenance Reality CheckMount it in standard IP20 control cabinets with at least 10mm clearance on sides – I've seen failures from cramming modules too tight in retrofit projects. Ventilation matters more than specs suggest; keep ambient below 55°C in dusty environments. For maintenance: check terminal torque quarterly (0.5-0.6 Nm), blow out dust annually, and yes – firmware updates actually prevent those odd intermittent faults we see in year-three deployments. Safety note: always kill power before servicing; those relay contacts can hold residual charge.
Certifications & Peace of MindFully certified for SIL 3 applications per IEC 61508 and IEC 62061 – no "almost compliant" loopholes here. You'll find the CE, UL 60947-5-1, and ATEX markings right on the label (Zone 2 approval for oil/gas use). Warranty's straightforward: 365 days from shipment date covering defects in materials/workmanship. Stock units ship in 1 week; custom-configured orders take up to 4 weeks. Payment's 50% advance, balance before shipping via FedEx/UPS/DHL – no surprises.
