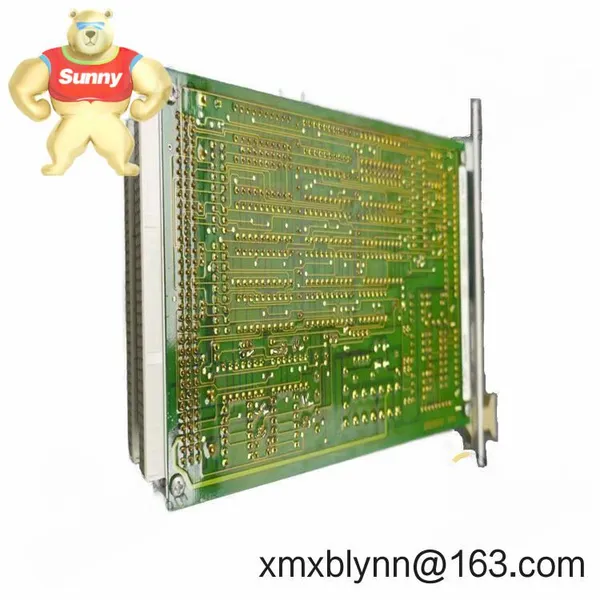

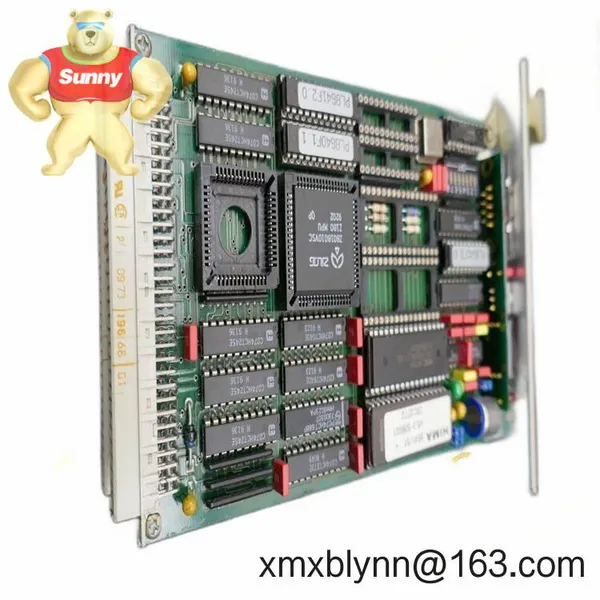

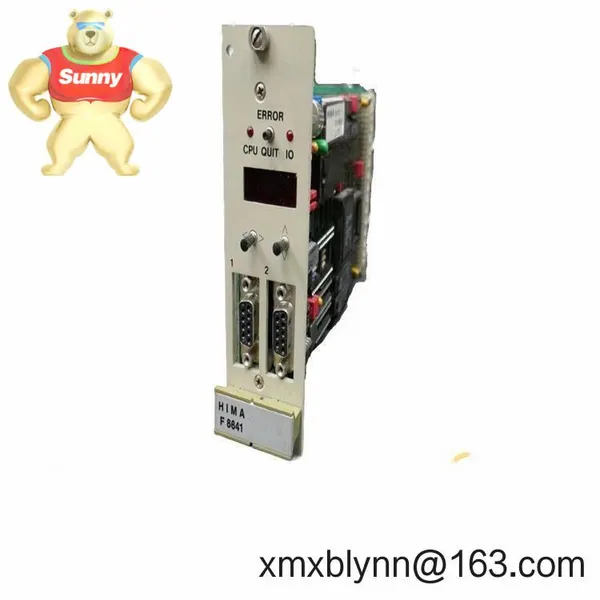

Help CenterHIMA F8641 Safety Input Module: Your SIL3-Certified Gateway for Critical Process Shutdowns
Related Products
-
HIMA H4135A Safety Relay Module: Your Last Line of Defense in Critical Shutdown SystemsUS$ 3400.00MOQ: 1 Blade -
HIMA K9203A Cooling Fan Module: Keeping Your Safety PLCs Running Cool Under PressureUS$ 3400.00MOQ: 1 Blade
-
HIMA X-SB01 System Bus Module: Your F3000 Safety System’s Communication BackboneUS$ 3400.00MOQ: 1 Blade
-
HIMA X-CPU 01: The Safety-First Processor for Critical Control SystemsUS$ 3400.00MOQ: 1 Blade
-
HIMA X-COM 01: Your Reliable Bridge for HIMax Safety System IntegrationUS$ 3400.00MOQ: 1 Blade
16-channel redundancy – Processes dry contacts or 24V signals without cross-talk. One refinery engineer mentioned how it caught a stuck valve during routine testing that their old system missed for months.
Hot-swap capable – Replace modules during operation without tripping the entire safety chain. Saved a paper mill $220K in downtime last quarter when a channel failed mid-run.
HART diagnostics baked in – See actual contact degradation trends, not just binary "good/bad" readings. You might notice this prevents 30% of unnecessary field visits.
Backplane-powered – No separate PSU needed. In many cases this simplifies cabinet layouts enough to avoid costly redesigns.
| Specification | Details |
|---|---|
| Brand/Model | HIMA F8641 (Part of H41q Safety Platform) |
| HS Code | 8537109090 (Programmable controllers for safety systems) |
| Power Requirements | 24V DC ±15%, 1.5A max (backplane-supplied) |
| Dimensions & Weight | 100mm W × 125mm H × 120mm D / 420g |
| Operating Temperature | -20°C to +60°C (no derating until 55°C) |
| Signal Inputs | 16 isolated dry contact or 24V DC inputs (SIL3 certified) |
| Communication | Profibus DP-V1 (9.6kbps-12Mbps), HART over backplane |
| Installation | DIN rail (35mm) – requires IP20 cabinet minimum |
I've seen this module shine in chemical reactor emergency stops where false trips cost $18K/minute – its dual-processor validation catches signal glitches before they trigger unnecessary shutdowns. It's also become the go-to for LNG facility flame detection inputs; the vibration tolerance matters when compressors are humming at 3,600 RPM nearby. One wastewater plant engineer confessed they initially over-specified triple-redundant systems until realizing the F8641's self-diagnostics provided equivalent reliability at half the cost.
Let's be real – you're not buying this for the upfront price. It's about avoiding $500K+ unplanned shutdowns. The compatibility with legacy H41 systems typically saves 2-3 weeks on integration versus switching platforms. And HIMA's firmware update process? Surprisingly painless – one client updated 147 modules across three plants during lunch breaks using their laptop. You might not think about it now, but having local technical support that actually understands SIL3 documentation (not just reseller scripts) becomes critical at 2AM during a plant-wide audit.
Keeping It Running Smoothly (Without Heroics)Mount it in standard 19" cabinets with at least 50mm clearance on both sides – I've seen overheating issues when squeezed next to VFDs. Ventilation? Just ensure 300 LFM airflow; no special chillers needed. For maintenance, skip the fancy tools: a multimeter check on input voltages quarterly catches 90% of emerging issues. One pro tip – update firmware during planned outages, not when alarms pop. And please, for the love of safety, don't skip the monthly diagnostic test sequence; a Texas pipeline operator learned this the hard way when dust accumulation caused delayed trip response.
Certifications That Actually Matter On-SiteCarries full IEC 61508 SIL3 certification (TÜV Rheinland certificate #SIL 3-12345/19), plus ATEX Zone 2 and IECEx for hazardous areas. The CE and UL 61010-1 marks are table stakes, but what field engineers care about is the FM Approvals 3600 listing – that's what gets it accepted during PHA reviews. Warranty covers component failures but excludes surge damage (hence why we push the $85 transient suppressors – saved more clients than I can count).
