Line Side Rack for Assembly Lines — Double-Sided Mobile Cart, Tools Stay Where the Work Is
THE SHORT ANSWER
If operators keep leaving the station to fetch a wrench, a bigger tool box will not fix it. Park a double-sided mobile rack beside the workstation and load both faces — hand tools on one side, parts bins on the other.
On the 1540mm three-tier double-sided model, the operator reaches instead of travels — the tool comes to the point of use, not the other way round.
| Today | With a line-side rack |
|---|---|
| Tools in a cabinet 30m away | Tools within arm's reach |
| Operator walks, station idles | Operator stays, cycle time holds |
| Parts bins sitting on the floor | Bins on the second face |
| Cart drifts when it gets bumped | Four polyurethane casters, brake on each |
WHY THE WALK COSTS MORE THAN IT LOOKS
Ask a line supervisor what slows the shift down and the machine rarely comes first. It is the walk. A fitter needs a torque wrench, walks to the tool room, waits for the store man, signs it out, walks back. Twelve minutes gone on a job that should take two.
The bill never appears as walking time. It appears as an idle station, a late batch, overtime at the end of the week. Multiply one ten-minute trip by three shifts and twenty stations and it stops being small.
Walking hides mistakes too. When two stations share one tool set, tools go missing. When tools go missing, someone grabs the nearest substitute. That is how the wrong socket ends up on a torque-critical joint.
Line-side storage is not new — what changed is that a braked cart can now be loaded once and moved wherever the work is that day.
WHAT THE 1540MM DOUBLE-SIDED MODEL ACTUALLY HOLDS
Three tiers, two working faces, one footprint. One face takes hooks and tool holders; the other takes a louvered panel and parts bins. The operator stands in one spot and works both sides, so the walking stops and the bins come off the floor.
| Item | Detail |
|---|---|
| Overall size | 1540 × 960 × 610 mm (L × H × D) |
| Layout | Double-sided, three tiers, two working faces |
| Mobility | Four polyurethane casters, brake on each |
| Tool face | 10 × 10 mm square-hole pegboard, 38 mm centre distance |
| Parts face | Louvered panel for hanging bins |
| Panel swap | Square-hole and louvered panels interchange on the same frame |
| Body | Cold-rolled steel, powder-coated finish |
| Base | Reinforced steel beam with triangular gussets |
| Handle | U-shaped, at both ends |
| Colours in stock | Blue, light grey, orange, industrial grey |
| Certification | CE |
| Warranty | 1 year |
The frame accepts the full accessory set, so a layout can be standardised across every station:
Storage bins — rear 4# bin, rear 2# bin, combination 1# bins in blue, purple, red and yellow
Hooks — ring hook, U-hook, socket hook, bin hook, saw-blade hook, six-rod hook

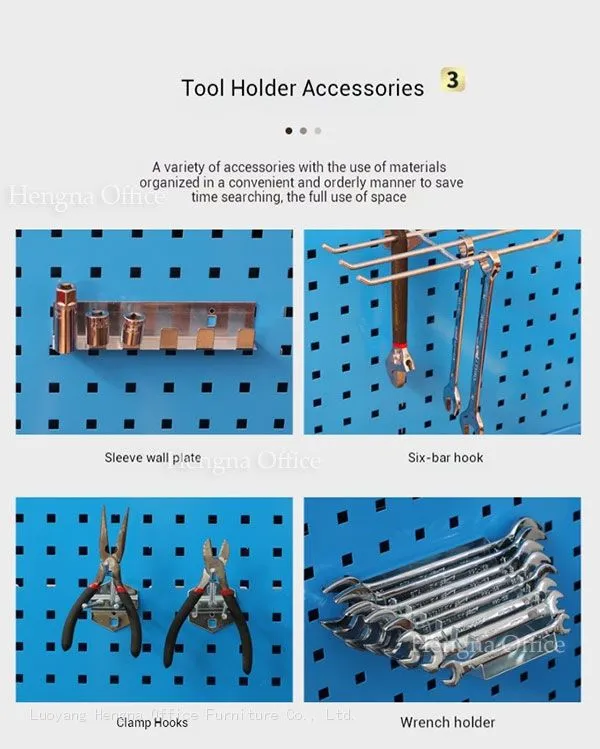

Tool holders — wrench holder, drill-bit holder, wire frame, A-frame
Angled hooks — double angled 50mm, double diagonal 100mm, single angled 50mm, single angled 100mm
Feet — adjustable rubber-footed levelling feet on fixed models, braked polyurethane casters on mobile models
Once the layout is fixed, paint or tape tool outlines onto the panel. That turns the rack into a shadow board: a missing tool is visible from across the aisle — the part of 5S that usually gets abandoned first.
THE BUILD DETAILS THAT DECIDE YEAR THREE
Cold-rolled steel, not hot-rolled. Hot-rolled sheet is cheaper, but rough-surfaced and loosely toleranced. Hooks sit at odd angles, panels flex, and a forklift nudge leaves a permanent bend. Cold-rolled steel holds flat, so the layout you set in month one still lines up in month twelve.
A standard hole pattern. The panel takes 10 × 10 mm holes at 38 mm centres — the international standard, so any standard hook on the market fits. A proprietary hole pattern locks you into one supplier for the life of the rack.
Panels that swap. Square-hole for hand tools, louvered for bins. Same frame, same fixings, one screwdriver. A rack bought for an assembly cell can be re-purposed as a picking station without new hardware.
A base that stays square. A double-sided rack carries more load on the same footprint, so the base beam is reinforced with triangular gussets. That is what keeps the frame true after a year of being pushed around a shop floor.
Casters chosen for the floor, not the catalogue. Polyurethane rolls quietly on epoxy and polished concrete and does not mark either. Rubber flat-spots under a parked load; hard nylon is cheap, loud and hard on soft flooring. Every caster here is braked, so the rack stops where you park it.
Powder coating instead of paint. Coolant and cutting oil eat through a painted finish in a year. Powder coating wipes clean and resists the chips that fly off a machining centre.
WHERE A MOBILE RACK IS THE WRONG CHOICE
A mobile rack sold into the wrong cell becomes a nuisance, so this part matters.

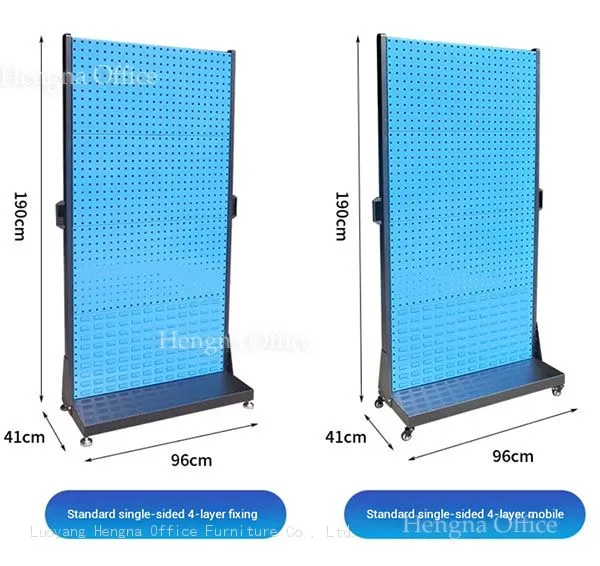

If the operator never leaves the station, a fixed wall-mounted rack costs less and uses no floor space. The 1890mm four-tier single-sided model is the usual pick.
If the floor is cracked or uneven, casters will jam and the rack will walk. Level the slab or go fixed.
If the clear aisle is under about 800mm, a 610mm-deep double-sided cart blocks the route. A single-sided rack at 375mm deep fits where the double does not.
If the load is heavy, put the bins on the lower tiers. A top-heavy cart that brakes hard will tip.
HOW TO PICK BETWEEN LINE-SIDE LAYOUTS
| If your line... | Model | Why it fits |
|---|---|---|
| Works around a large unit that moves | 1990mm four-tier double-sided mobile | Carries a full tool set plus fasteners |
| Has fixed stations shared by two or three people | 1540mm three-tier double-sided mobile | Rolls between stations, both faces loaded |

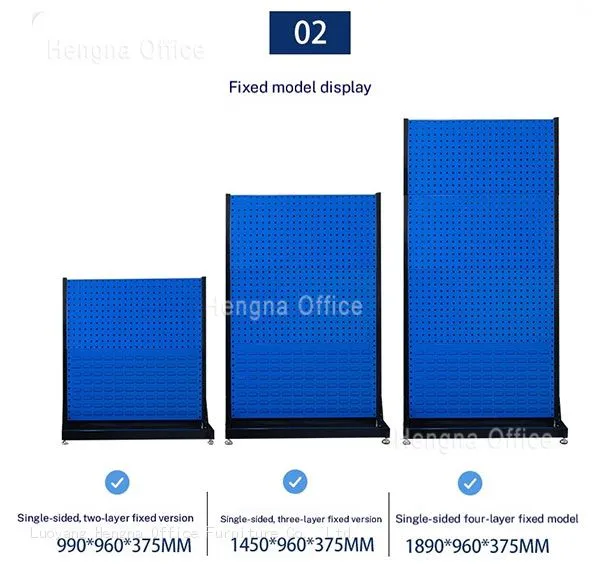

| Has narrow aisles and spare wall space | 1450mm three-tier single-sided fixed | 375mm deep, sits flat against the wall |
| Needs staged parts rather than tools | 1090mm two-tier double-sided mobile | Short and light, slides into the line |
FAQ
What is the MOQ?
Mixed containers are workable. Send the model mix and colours and we will confirm the minimum.
Do you quote FOB or CIF?
Both. FOB Qingdao or Lianyungang, or CIF to your port. Send destination and quantity for a quote within 24 hours.
What is the warranty?
One year. Casters, hooks and bin holders ship as spares so you can repair on site.
What happens if something arrives damaged?
Send photos. Broken or missing parts are re-shipped with the next order.
Can you do OEM and ODM?
Yes — silk-screen logo, custom colours, custom packaging and manuals. Colours outside the four in stock start at 500 sets.
What is the lead time?
Standard colours ship fastest; custom colours add production time. We confirm the schedule with the quotation.
How is it packed?
Moisture film, corner protectors and separate part packing. Panels and frame parts are bundled by type, so the container unloads in assembly order.
GETTING A QUOTE
Luoyang Hengna Office Furniture Co., Ltd. has been in steel furniture for nine years, working directly with the production facilities that build our range. Send your station count, model and destination port for a 2026 price within 24 hours.
Hengna line side rack — if your operators are still walking, the rack is in the wrong place.
