Comprehensive Product Overview
This document provides a technical overview of the Hengna Steel Card Filing Cabinet for B2B partners, product managers, and procurement engineers. It details the engineering principles, material specifications, and manufacturing capabilities that define this product series. Our focus is on delivering a configurable storage solution through a comprehensive ODM/OPM platform, enabling clients to source a product tailored to specific technical, functional, and aesthetic requirements for professional environments.
Detailed Specifications & Parameters (Technical Data Sheet)
The cabinet is built on a standardized yet highly configurable platform.
| Component | Standard Specification | ODM Customization Options |
|---|---|---|
| Primary Material | Thickened Cold Rolled Steel Plate (Specific gauge available upon request) | Alternative steel grades, thicknesses. |
| Slide Mechanism | Silent Steel Ball Bearing Slides with integrated anti-detachment clips. | Load rating certification, alternative slide systems. |
| Handle | Gooseneck Handle, one-piece stamping, rounded corners. | Alternative handle designs (Classic Handle), materials, finishes. |
| Locking System | Branded Mechanical Lock (Wang Tong), steel cylinder. | High-security lock variants, electronic locking systems, master key systems. |

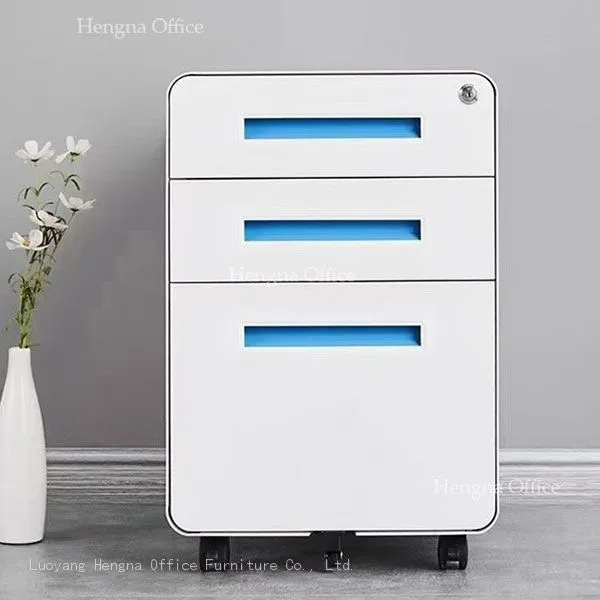

| Mobility | Optional Lockable Casters (Material & load capacity specs available). | Various caster types (rigid, swivel), materials (polyurethane, rubber), brake types. |
| Finish | Powder-coat in standard colors. | Custom RAL/ Pantone color matching, textured finishes, alternative coatings. |

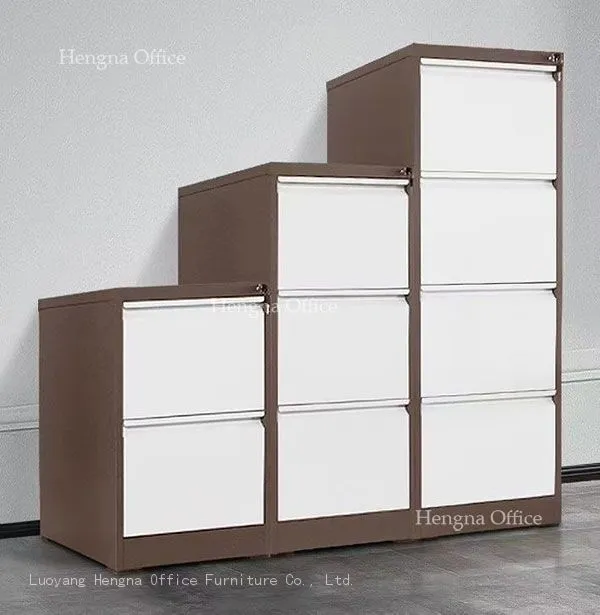

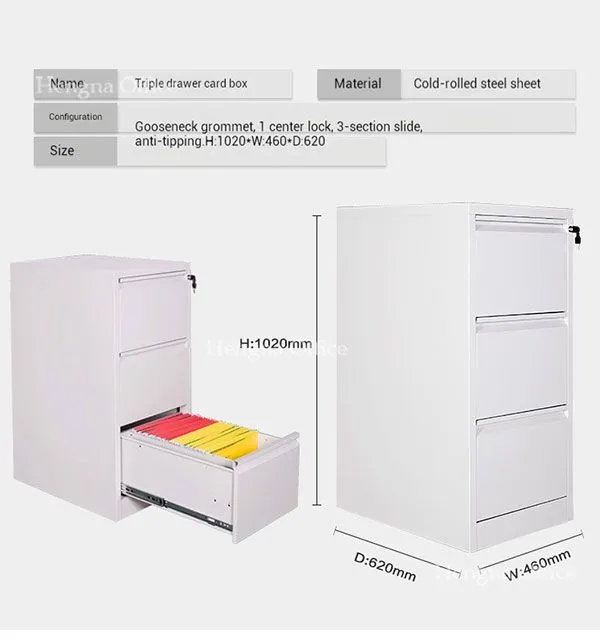

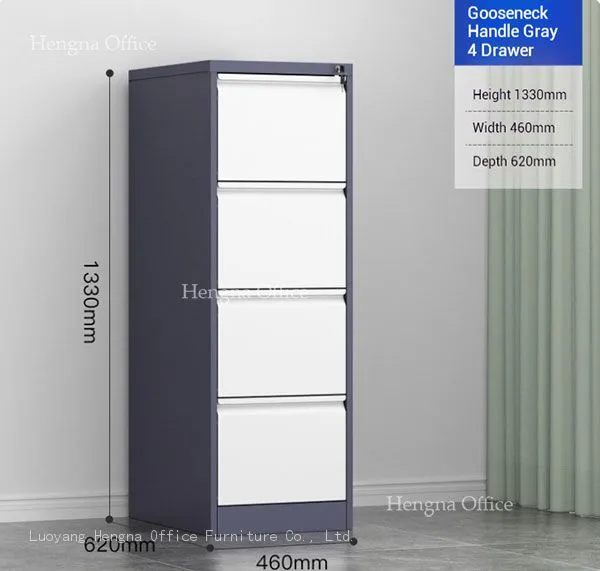

| Dimensions | 2-Drawer: H730W460D620mm / H730W900D450mm 3-Drawer: H1030W460D620mm / H1030W900D450mm 4-Drawer: H1330W460D620mm / H1330W900D450mm |
Fully customizable H/W/D dimensions, non-standard drawer configurations. |
Technical Advantages: A Component Analysis
Structural Frame & Load Distribution: The use of thickened cold-rolled steel provides a high moment of inertia, reducing deflection under load. The cabinet's design ensures even weight distribution across the frame and onto the slides, guaranteeing stability and preventing "racking" (structural twisting) over time.

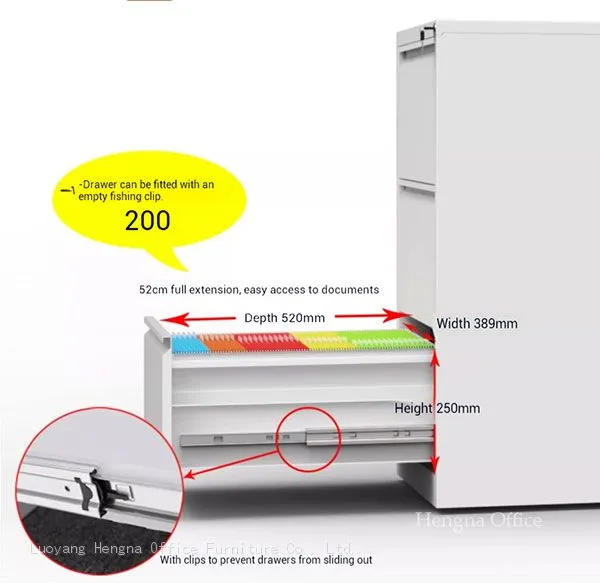

Precision Slide Mechanics: The silent ball bearing slides employ a system of precision ball bearings within a reinforced steel channel. This design minimizes the coefficient of friction, allowing for smooth operation under heavy loads. The integrated anti-detachment clip is a fail-safe mechanism that engages at the full extension point, preventing user-induced damage and potential injury.
Ergonomic Handle Integration: The gooseneck handle's one-piece stamping construction eliminates weak points associated with welded handles. The geometry is designed to provide an optimal grip area and leverage, reducing the force required to open a loaded drawer. The mandatory rounded corner design is a critical safety and ergonomic feature.
Security Core Technology: The referenced branded lock system with a steel cylinder offers superior drill and pick resistance compared to standard zinc alloy locks. The high key differentiation (500 locks do not open each other) is a significant security feature for facilities managing multiple secured cabinets, minimizing the risk of cross-access.
Frequently Asked Questions (F&Q)
Q: Can you provide technical drawings and load test reports for a project submission?
A: Yes, upon receipt of a formal NDA and for qualified ODM projects, we can provide detailed CAD drawings, bill of materials (BOM), and independent load test certification for both the cabinet structure and slide mechanisms.Q: What is your quality assurance protocol for a production run?
A: We employ a multi-stage QC protocol: Incoming Raw Material Inspection, In-Process Quality Control (fabrication, welding, painting), and a Final Pre-Shipment Inspection based on AQL standards. We provide detailed inspection reports and can accommodate third-party inspections.Q: What is the lead time and MOQ for a custom ODM order?
A: Lead time and MOQ are project-dependent. Standard modifications may have a lead time of 4-6 weeks and a lower MOQ. Complex customizations involving new tooling or structural changes require a feasibility study to determine both timeline and MOQ.
OEM/ODM Service & Inquiry Invitation
Hengna functions as an engineering and manufacturing partner for furniture brands, system integrators, and large-scale project contractors. Our technical team is equipped to handle complex customizations, from material substitutions and functional modifications to full-scale product development based on your specifications. To initiate a technical review, please contact us with your requirements document or technical data pack. We will provide a manufacturing feasibility assessment and a competitive quotation.
