Product Specification: Fire & Explosion-Resistant Chemical Storage Cabinet
Executive Summary
This document outlines the technical specifications for a range of Fire & Explosion-Resistant Chemical Storage Cabinets, designed to ensure safe storage of flammable, combustible, and corrosive liquids in accordance with OSHA 29 CFR 1910.106 and NFPA 30 standards. The cabinets provide passive fire protection, secondary spill containment, and vapor management capabilities.
Construction & Materials

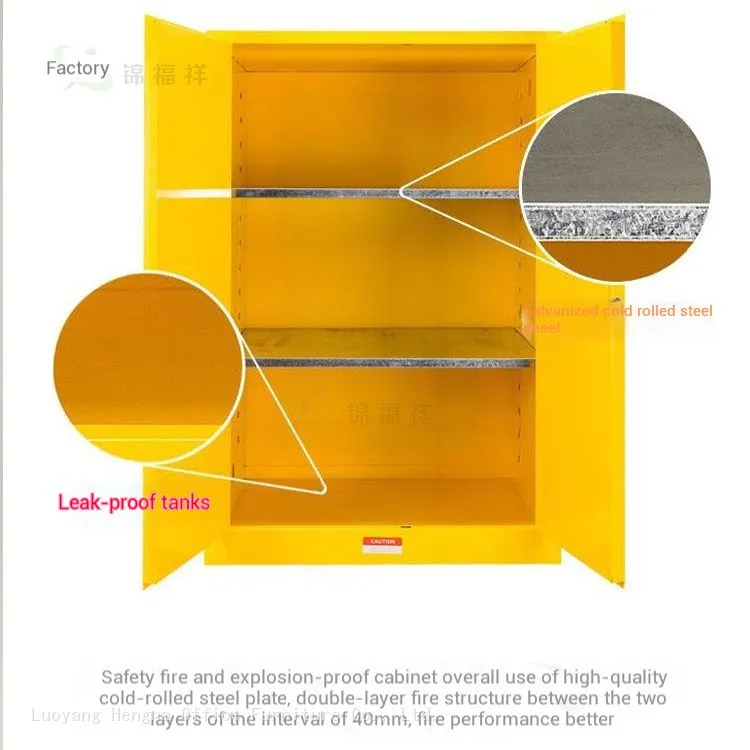

Body: Fabricated from prime 1.2mm (18-gauge) cold-rolled steel.

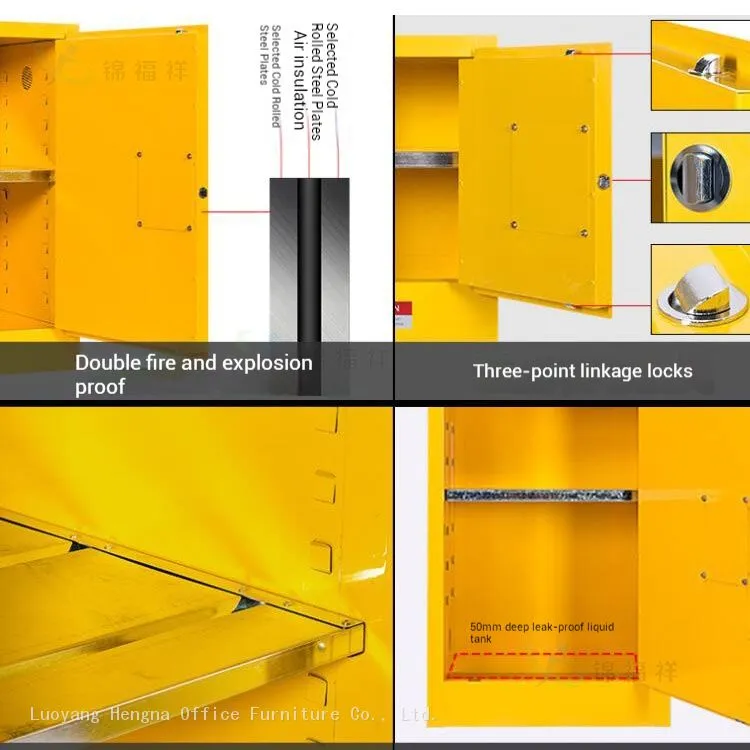

Fireproofing: Double-wall construction with a 40mm (1.6") insulating air gap between walls.
Shelving: Adjustable, perforated galvanized steel shelves with a load capacity of 350 lbs (159 kg) per shelf. Shelves are coated with a chemical-resistant epoxy.
Hinges: Continuous, uninterrupted piano hinge manufactured from stainless steel for corrosion resistance and to prevent door sag.

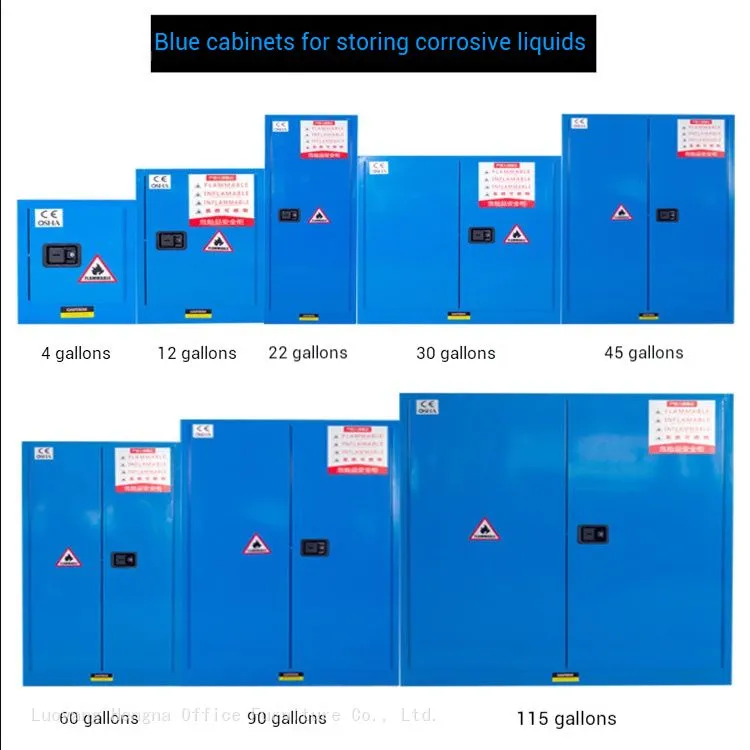

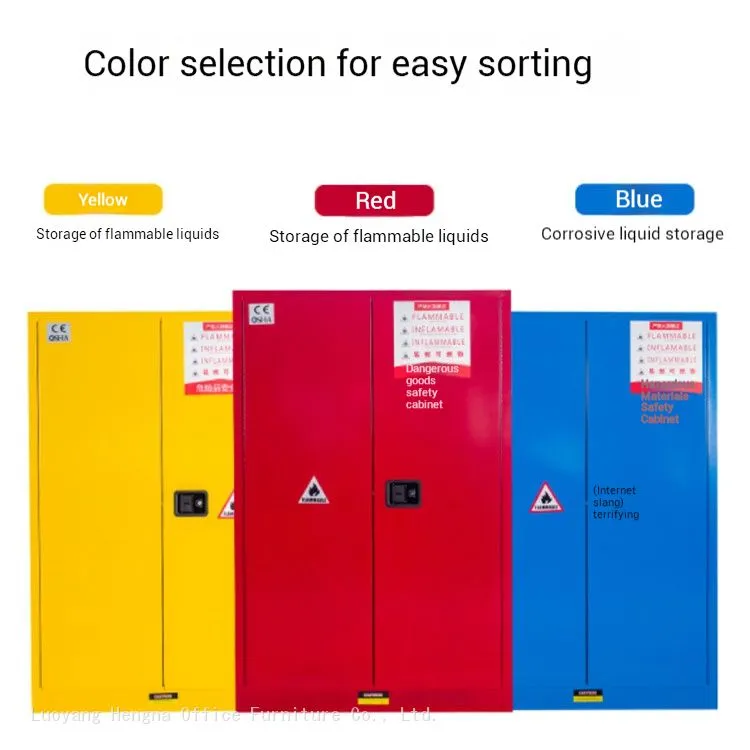

Finish: Exterior is finished in a powder-coated epoxy paint. Standard colors include Safety Yellow, Fire Red, and Corrosive Blue (RAL codes available upon request).
Safety Systems & Performance Data
Spill Containment:
Feature: Integral, seamless 5cm (2") deep leak-proof sump.
Capacity: Sump capacity exceeds 10% of the total storage volume, compliant with standard regulatory recommendations.
Fire Performance:
Feature: 40mm air gap insulation.
Performance: Independently tested to maintain an internal temperature below 325°F (163°C) for a minimum of 90 minutes when subjected to a standard external fire test.
Vapor Control:
Feature: Two (2) threaded, flame-arrester vent ports (1" NPT).
Purpose: Allows for connection to a mechanical ventilation system to prevent the accumulation of flammable vapors. Vents are designed to prevent flashback.
Grounding: One (1) factory-installed, ½" stainless steel grounding boss with attached bonding wire for static electricity dissipation.
Dimensions & Configurations
| Model Code | Capacity (Gal) | External Dimensions (HxWxD, mm) | Door Configuration |
|---|---|---|---|
| FSC-45 | 45 | 1650 x 860 x 860 | Single Door, Double Lock |
| FSC-60 | 60 | 1800 x 1100 x 860 | Double Door, Double Lock |
| FSC-90 | 90 | 1800 x 1600 x 860 | Double Door, Double Lock |
Compliance & Certification
This cabinet model is designed and manufactured to meet or exceed the performance requirements outlined in:
OSHA 29 CFR 1910.106
NFPA 30: Flammable and Combustible Liquids Code
EPA Spill Prevention, Control, and Countermeasure (SPCC) guidelines for secondary containment.
Conclusion
The specified cabinet provides a comprehensive, code-compliant solution for the safe storage of hazardous liquids. Its robust construction and integrated safety systems mitigate risks of fire, explosion, and environmental contamination, making it suitable for specification in industrial, laboratory, and manufacturing facilities.
