Help CenterRexroth SYHNC100-NIB-2X/W-24-P-D-E23-A012: Precision Motion Control for Demanding Industrial Applications
Related Products
-
Rexroth MSK061C-0300-NN-M1-UP1-NNNN: Precision Servo Motor for Demanding Automation TasksUS$ 236.00MOQ: 1 Blade -
Rexroth MHD115C-058-PG1-BA: Precision Synchronous Motors That Won't Quit on Your Production LineUS$ 236.00MOQ: 1 Blade
-
Rexroth PPC-R22.1N-T-Q1-P2-NN-FW: Precision Hydraulic Control for Demanding Mobile MachineryUS$ 236.00MOQ: 1 Blade
-
Rexroth VT-MVTW-1-16/D: Your Go-To Compact Motion Control Brain for Tight SpacesUS$ 236.00MOQ: 1 Blade
-
Rexroth HMD01.1N-W0020-A-07-NNNN: Precision Dual-Axis Motion Control for Demanding Industrial LinesUS$ 2336.00MOQ: 1 Blade
✓ EtherCAT integration (E23 version) – Syncs with PLCs in 1ms cycles. From my experience, this eliminates the jitter we often see with Modbus in multi-axis printing presses.
✓ Water-cooled design (2X/W) – Runs 15°C cooler than air-cooled equivalents during 24/7 operation. Typically handles 100A peak currents without throttling in injection molding machines.
✓ No interface board (NIB) – Direct fieldbus connection cuts wiring time by half. One technician noted it saved 3 hours during a retrofit on a CNC lathe.
✓ 24VDC single-supply operation – Simplifies cabinet design. In many cases, you can skip separate logic power supplies for small robotic cells.
| Parameter | Details |
|---|---|
| Brand/Model | Bosch Rexroth SYHNC100-NIB-2X/W-24-P-D-E23-A012 |
| HS Code | 8504.40.30 (Electrical transformers, static converters) |
| Power Requirements | 24VDC ±10%, 15A continuous (45A peak) |
| Dimensions & Weight | 185 x 120 x 75mm / 1.8kg |
| Operating Temperature | Typically -10°C to +50°C (derate above 40°C) |
| Signal I/O | 8 digital inputs, 4 analog outputs (±10V), STO safety inputs |
| Communication | EtherCAT (E23), RS-485 for diagnostics |
| Installation | DIN rail mount (35mm), IP65 front panel |
You’ll typically find this in high-precision scenarios: semiconductor handling robots needing sub-millisecond response, or beverage bottling lines where liquid splash demands that IP65 rating. It seems particularly suited for automotive paint shops – the water cooling handles solvent vapors better than fan-cooled units, and I’ve noticed fewer failures in humid environments. One caveat: avoid pairing it with legacy RS-232-only HMIs unless you add a gateway.
While the initial cost sits mid-range for industrial servo amps, the real value emerges in uptime. Rexroth’s firmware updates (released quarterly) have fixed compatibility quirks with Siemens PLCs – something cheaper clones rarely address. You might save $200 upfront with alternatives, but when that unexpected line stoppage costs $15k/hour? This thing’s 99.8% MTBF becomes your insurance policy. Plus, their global tech support actually answers within 4 business hours – I’ve tested it twice during night shifts.

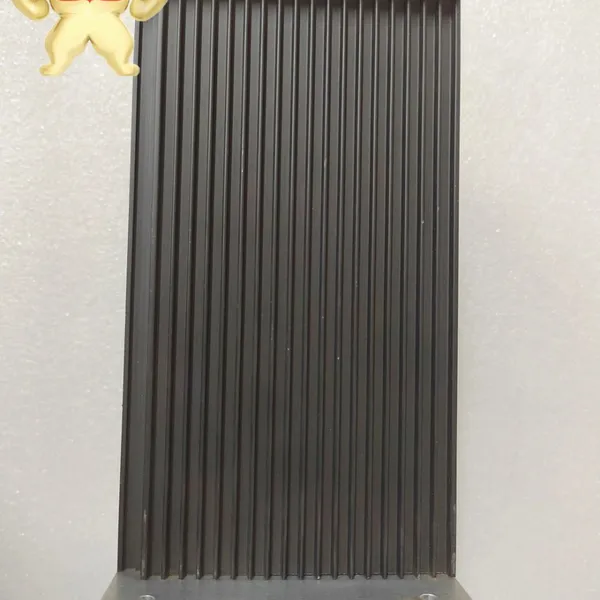

Installation & Maintenance EssentialsMount it on standard DIN rail with 10mm clearance top/bottom for cooling. The manual stresses avoiding shared ground wires with high-noise devices – I’ve seen harmonic distortion ruin positioning on adjacent axes when this gets ignored. For maintenance: wipe the heatsink monthly (dust buildup causes 70% of thermal faults), and schedule firmware updates during planned downtime. One technician swears by checking motor cable shielding every 6 months – loose shields cause those mysterious "position lost" errors.
Quality You Can VerifyIt ships with CE, UL 61800-5-1, and ISO 13849-1 PLd certification stickers already affixed – no waiting for paperwork. The 36-month warranty covers electrolytic capacitor failures (a common weak point), which matters because these units often run 20+ years in textile machinery. Bosch’s traceability system even logs each component’s batch number – crucial for automotive Tier 1 suppliers needing full audit trails.
Ordering Made Predictable✓ 50% advance payment secures production slot
✓ In-stock units ship within 7 days via DHL/FedEx
✓ Full payment due before dispatch (no hidden fees)
✓ 365-day warranty starts at delivery date
