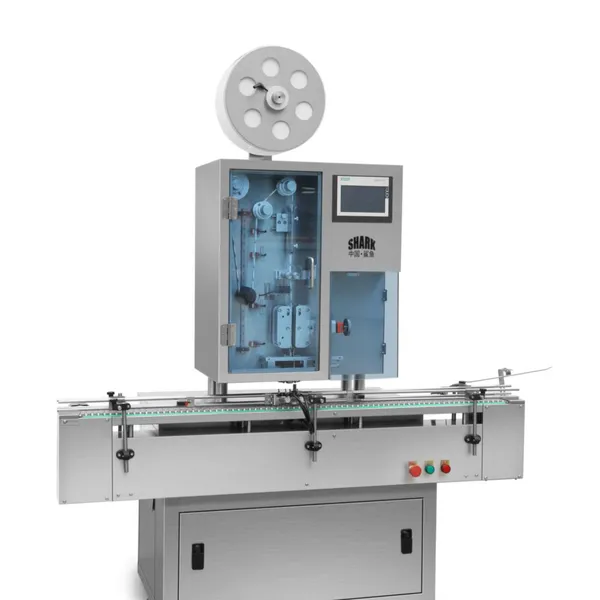

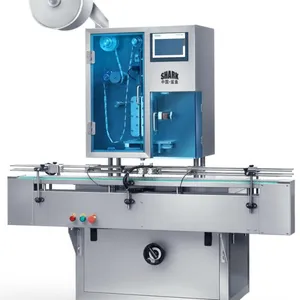

Help CenterBPG-200 High Speed Automatic Desiccant Sachet Insertion Machine for Pharmaceutical Bottles
Related Products
-
220V BPGS-200 Canister Desiccant Inserter With 0.8kW PowerNegotiableMOQ: 1 Piece -
BPGS-200 Desiccant Inserter With Adjustable Speed up to 220 BPMNegotiableMOQ: 1 Piece
-
GMP-Compliant BPGS-200 Automatic Desiccant Inserter MachineNegotiableMOQ: 1 Piece
-
BPGS-200 Automatic Canister Desiccant Inserter With 220 Bottles/Min CapacityNegotiableMOQ: 1 Piece
-
BPGS-200 Desiccant Inserter for Pharmaceutical Bottle PackagingNegotiableMOQ: 1 Piece
The BPG-200 High Speed Automatic Desiccant Sachet Insertion Machine revolutionizes pharmaceutical packaging by delivering precision moisture protection at industrial speeds. Designed specifically for medicine bottles, this equipment ensures zero human contact with desiccants while maintaining 120 bottles per minute output. Its intelligent vision system guarantees 100% accurate sachet placement, eliminating costly production errors in GMP-compliant facilities.
Pharmaceutical manufacturers will appreciate the 30% reduction in desiccant waste achieved through patented vibration-free feeding technology. The machine's modular design allows quick changeovers between bottle sizes from 20ml to 200ml, making it ideal for contract packaging operations serving multiple clients.
Core Technical Specifications:
| Specification | Technical Parameter |
|---|---|
| Equipment Name | Desiccant Inserter |
| Model | BPG-200 |
| Bottle Specification (ml) | 15-300 ml |
| Desiccant Roll Specification (mm) | Outer diameter cannot exceed 300mm, inner core diameter is 75mm, roll thickness range is 90-140mm |
| Max. Production Capacity (bottles/min) | ≤130 bottles/minute (depending on packaging), speed adjustable |
| Power Supply Voltage (V) | 220 |
| Frequency (Hz) | 50 |
| Air Pressure (MPa) | 0.5 |
| Air Consumption (L/Min) | 2.5 |
| Total Power (kW) | 0.5 |
| Overall Dimensions (L×W×H) (mm) | 1600 × 750 × 2000 |
| Net Weight (Kg) | 300 |
Advanced Features:
Self-diagnostic PLC control with touchscreen HMI displaying real-time OEE data
Stainless steel Grade 304 construction for critical contact surfaces
Dual safety systems including light curtains and emergency stop
Vibration-free sachet separation technology prevents desiccant damage
Quick-change tooling reduces format changeover to under 15 minutes
Operational Benefits:
Pharmaceutical companies transitioning from manual insertion report ROI within 14 months through labor reduction and material savings. The BPG-200's closed-system design prevents desiccant contamination while maintaining relative humidity below 10% inside containers.
Specification Technical Parameter Equipment Name Desiccant Inserter Model BPG-200 Bottle Specification (ml) 15-300 ml Desiccant Roll Specification (mm) Outer diameter cannot exceed 300mm, inner core diameter is 75mm, roll thickness range is 90-140mm Max. Production Capacity (bottles/min) ≤130 bottles/minute (depending on packaging), speed adjustable Power Supply Voltage (V) 220 Frequency (Hz) 50 Air Pressure (MPa) 0.5 Air Consumption (L/Min) 2.5 Total Power (kW) 0.5 Overall Dimensions (L×W×H) (mm) 1600 × 750 × 2000 Net Weight (Kg) 300
Specification Technical Parameter Equipment Name Desiccant Inserter Model BPG-200 Bottle Specification (ml) 15-300 ml Desiccant Roll Specification (mm) Outer diameter cannot exceed 300mm, inner core diameter is 75mm, roll thickness range is 90-140mm Max. Production Capacity (bottles/min) ≤130 bottles/minute (depending on packaging), speed adjustable Power Supply Voltage (V) 220 Frequency (Hz) 50 Air Pressure (MPa) 0.5 Air Consumption (L/Min) 2.5 Total Power (kW) 0.5 Overall Dimensions (L×W×H) (mm) 1600 × 750 × 2000 Net Weight (Kg) 300
Why Choose Our Solution:
Localized support with technicians available in 12 countries
On-site validation services for IQ/OQ/PQ documentation
Dedicated R&D team for custom integration requirements
Contact our packaging automation specialists today to schedule a live demonstration. With installations across 37 countries, we deliver turnkey solutions including installation, training, and ongoing technical support. Request your customized quotation and discover how the BPG-200 can optimize your moisture protection process.
Frequently Asked Questions:
Q1: Can this machine handle irregular-shaped bottles?
A: The standard configuration accommodates cylindrical containers. For oval or square bottles, custom guide rails are available upon request.
Q2: What desiccant types are compatible?
A: It processes silica gel, molecular sieve, and clay desiccants in standard Tyvek® or paper sachets. Special configurations for canisters available.
Q3: How is machine sanitation handled?
A: All product contact surfaces feature quick-release mechanisms for CIP (Clean-in-Place) procedures. Full sanitation protocols are provided.
Q4: What's the lead time for delivery?
A: Standard machines ship within 45 days after order confirmation. Express 30-day delivery may be available for stock models.
Q5: Does it include bottle unscrambling?
A: The base model requires oriented bottles. Optional vibratory bowl feeders or linear conveyors can be integrated into the system.
