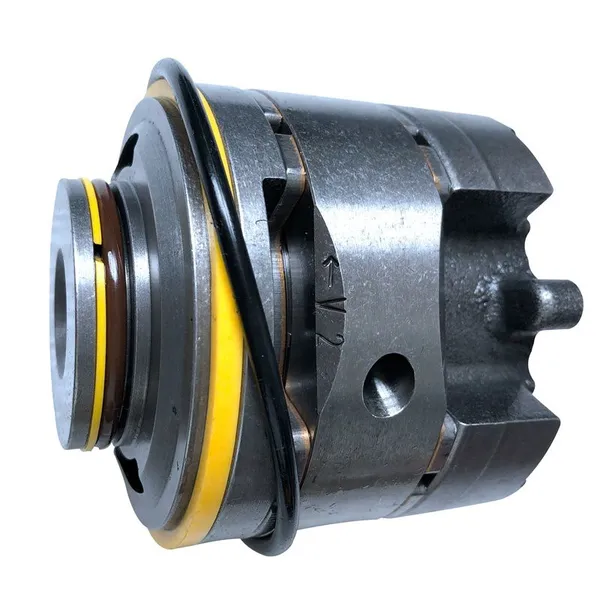

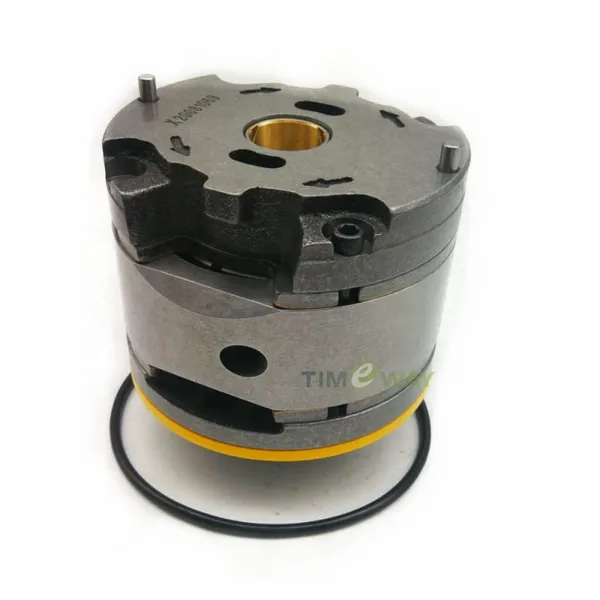

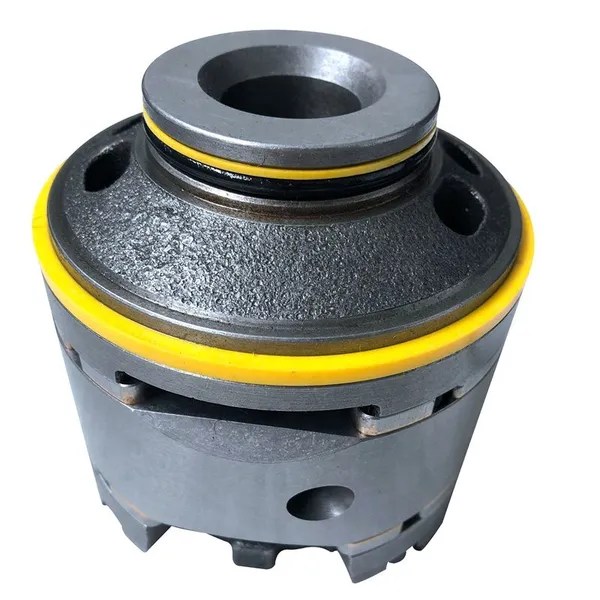

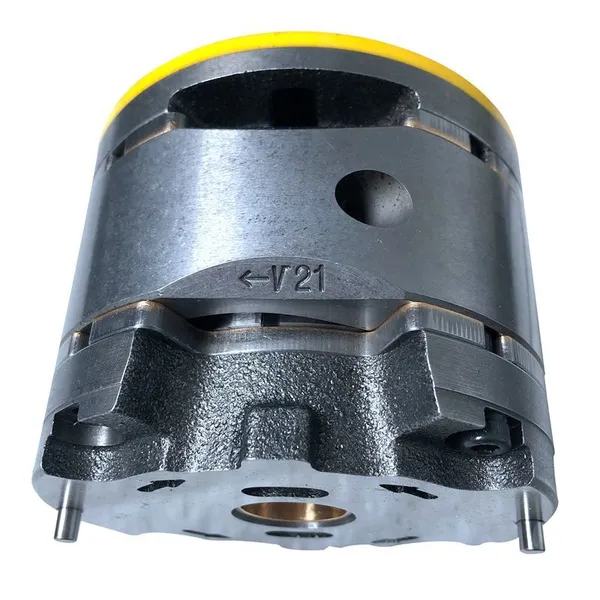

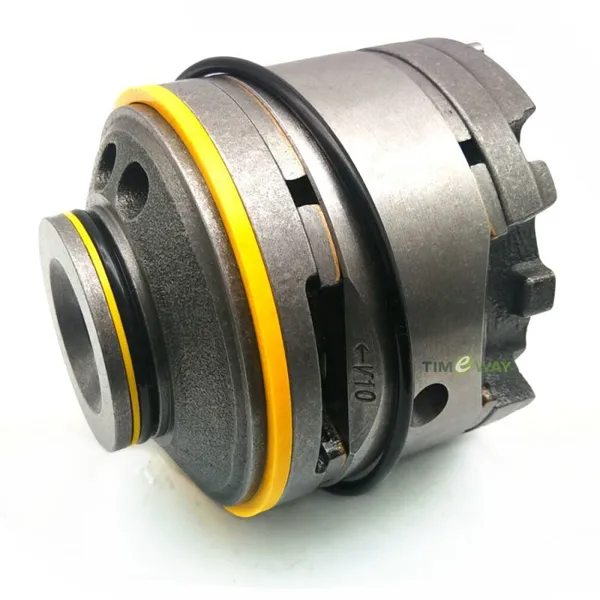

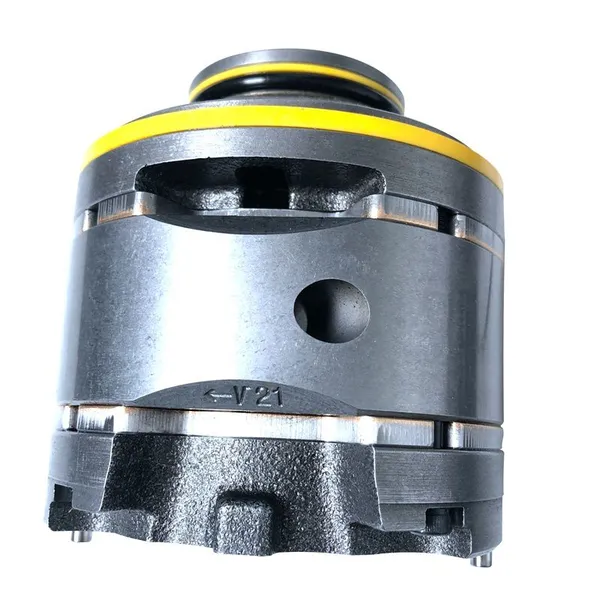

Vane Pump Parts 25VQ10 25VQ12 25VQ14 25VQ17 Pump Cartridge for Repair VICKERS Hydraulic Vane Pump Core
US$ 772.48
1 - 19 Set
US$ 667.14
20 - 29 Set
US$ 561.80
30 - 49 Set
US$ 491.58
≥50 Set
Key Specifications
Get Latest Price
Material:
Cast Iron
Type:
Fittings
Warranty:
6 Month, 6 months
Payment & Shipping
Payment Methods:
Port of Shipment:
China
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
63SCY14-1B 80SCY14-1B High Pressure Hydraulic Manual Variable Piston Pump for Cutting MachineUS$ 1207.87 - 1509.84MOQ: 1 Piece -
Hydraulic Gear Pump TCM FD70Z8 FD50Z8 FD60Z8 Replace Shimadzu SGP1-36L317 High Pressure Pump TCM Forklift Hydraulic Oil PumpUS$ 484.56 - 625.01MOQ: 1 Piece
-
Low Pressure Oil Pump CB-B2.5 CB-B4 CB-B6 CB-B10 Gear PumpUS$ 84.27 - 105.34MOQ: 1 Unit
-
SGP Hydraulic Gear Pump SGP1A31.9D2H9-L438T Hydraulic Gear Oil Pump SGP1A High Pressure Gear PumpUS$ 421.35 - 596.92MOQ: 1 Piece
-
Hydraulic Steering Gear Pump Constant Overflow Pump HLCB-D12-12 Tractor Steering Pump HLCB-D12/12-FHRUS$ 316.02MOQ: 3 Units
Warranty
6 Month, 6 months
Displacement
Other
Pump Type
Vane Pump
Brand Name
TIMEWAY
Place of Origin
Jiangsu, China
Connection Size
1/4 inch
Dimension(L*W*H)
18*18*18
Max. Horsepower
2 HP
Number of stages
1 Stage
Operating Pressure
200 bar
Showroom Location
None
Weight
6
Application
Industrial Machinery
Usage
Vane Pump
Standard or Nonstandard
Standanrd
Model
25VQ10 25VQ12 25VQ14 25VQ17
Package
Carton Box
MOQ
1 Set
Condition
New

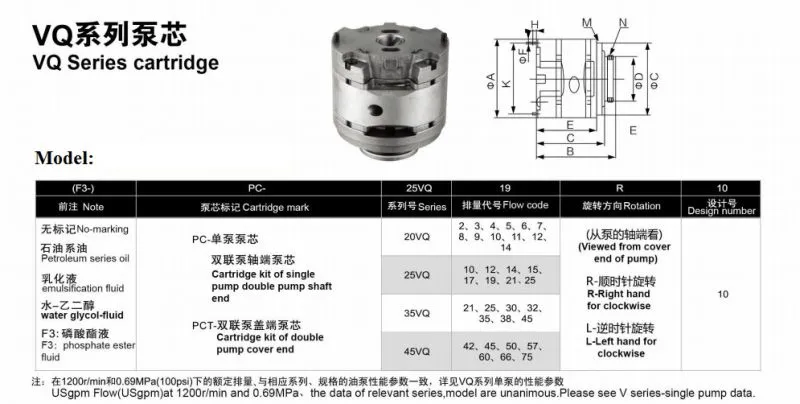

VQ Series-cartridge
Model Code
1.C— Cartridge kits
2.25VQ— Series
20VQ—7~45.9ml/r 25VQ—32~67.5ml/r
35VQ—67.9~121.6ml/r 45VQ—138.7~237ml/r
3.14— Displacement code
|
Series |
Displacement code |
|
20VQ |
2 3 4 5 6 7 8 9 10 11 12 14 |
|
25VQ |
10 12 14 15 17 19 21 |
|
35VQ |
21 25 30 32 35 38 |
|
45VQ |
42 47 50 57 60 66 75 |
Note:Rated capacity in USgpm at 1200 rpm and 0.7MPa
4.R— Rotation
(Viewed from smalled end)
L— Left hand for counterclockwise
R— Right hand for clockwise,omit
5.B—
W/O Bush,omit if not required
6.10- Design number
|

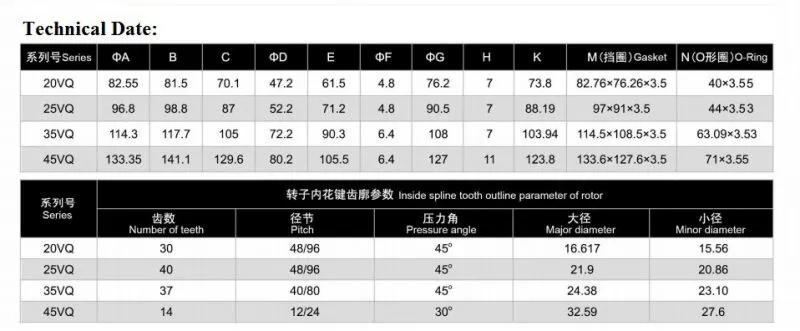

Series |
ØA |
ØB |
ØC |
ØD |
L |
M |
N |
P |
H |
X |
Y |
Z |
|
20VQ |
82.6 |
76.2 |
47.1 |
4.8 |
81.3 |
70.5 |
64.5 |
73.66 |
6 |
2-222 |
82.76×3×3.5 |
2-236 |
|
25VQ |
96.8 |
90.5 |
52.2 |
4.8 |
98.8 |
86.6 |
77.6 |
88.18 |
7 |
2-224 |
97×3×3.5 |
2-241 |
|
35VQ |
114.3 |
108 |
72.2 |
6.4 |
117.8 |
104.5 |
90.8 |
103.94 |
7 |
2-230 |
114.5×3×3.5 |
2-247 |
|
45VQ |
133.3 |
127 |
80.1 |
6.4 |
141 |
129 |
105.6 |
123.8 |
8 |
2-233 |
133.6×3×3.5 |
2-253 |
| Our company now supply a large number of piston pumps, motors, reducers and related spare parts. The main manufacturers are: Rexroth, Hitachi, Komatsu, Kawasaki, Caterpillar, NACHI, Toshiba, Kobelco / Kato etc. |
| The specific models are: |
| Hitachi series: |
| HPV050; HPV080; ZX120-6 main pump (HPK055); HPV091 (EX200-2/3, EX120-2 single pump); HPV102 (EX200-5/6); HPV116 (EX200-1); HPV118 (ZX200-3, ZX270 main pump)etc. |
| Komatsu excavator main pump series: |
| HPV35 (PC60); HPV55 (PC120); HPV90 (PC200-3); HPV90 (PC200-5); PHV95 (PC200-6, PC120-6 except the pump shaft); HPV132 (PC300-7, PC400-6); HPV160 (PC300/400-3/5); HPV135; PC30UU; PC40-8 main pump; PC50; PC60, etc. |
| Caterpillar series: |
| VRD63 (CAT120) double pump; SBS80 (CAT312C) main pump; E200B (new) double pump; AP-12 double pump; AP-14 (CAT325C); CAT320C double pump; SPK10/10 (E200B) double pump; SPV10/10 (MS180) double pump; CAT12G; CAT14G/16G; CAT215; CAT245; CAT330B travel motor; PSV450 (AP-12) walking; CAT992; CAT330C walking; CAT385H. |
| Kayab (KYB, kayaba) series: |
| PSVD2-16E (Shanhe Intelligent 1.6-2 tons); PSVD2-21C (KYB); PSVD2-21E (KYB) 4T/SVD22 small digging main pump; PSVD2-26E/27E (KYB); KYB-25CC (Ishikawashima 45, Kubota K040/K045); Ishikawajima 60; PSVL-54 (KYB Kubota 6 ton 155 excavator). |
| The Nachi series: |
| PVD-2B-32L; PVD-2B-34 walking; PVD-2B-34L (small digging main pump); PVD-2B-36L/38/40; PVD-2B-42; PVD-2B-63; PVD45; 130; PVK-2B-505 (ZAX55 main pump); YC35-6 Yuchai small digging rotary motor; YC35-6 Yuchai small digging travel motor; PCL-200-18B (Yuchai 55 revolution); Bobcat 331 excavator ( Turn); Bobcat 337 (walking motor). |
| Toshiba series: |
| SG02; SG025 (MFB40); SG04 (MFB80); SG08 (MFB160); SG12; SG20 (MFB250); PVB92 (PVC90RC08/PVC70R) (Toshiba 8 tons, Yuchai 8.5 tons excavator); PV090; PV092 (PV080 universal) ;PSVS-90. |
| JEIL series: |
| JMV-44/22; JMV-53/34 (6-8 ton small excavator travel motor); JMF-64; JMV 147/95; JMF-151-VBR (22SM1510117); JMF-155. |
| Liebherr series: |
| LPVD45; LPVD64; LPVD75; LPVD90; LPVD100; LPVD100 new (914); LPVD125; LPVD125 new; LPVD140; LPVD250; LPVD260. |
| Kobelco / Kato Series: |
| SK250-8 main pump; SK200-1/3 travel motor; SK220-3 (MA340 travel motor); SK200-6 travel motor; SK200-6 walking new; SK320 travel motor; M3V150 (SK220-2) travel motor; SK430 walking Motor; Kato 400 excavator motor; HD450V-2 (Kato); HD3000; DH55 (Daewoo 55 excavator slewing motor); T3X128/Daewoo 300-7 slewing; Daewoo 225-7 walking; Daewoo DH370 slewing; Hyundai 60-7 slewing Motor; modern 480 swing motor. |
| Kawasaki series: |
| K3SP36C (SDV36) 8 ton medium excavator main pump; K3V63DT (K3V63BDT); K3V112DT; K3V140DT; K3V180DT; K3V280; K3VG280; K3VG180; K3VL45; K5V80; K5V140 (Doosan 300-7); K5V160 (modern 300-6 main pump) ; M2X63; M2X96 (EX200-2); M2X120; M2X146 (EX200-5); M2X150/170 (EX400); M2X210 (EX270/280/300); M5X130 |
| Nabtesco series: |
| GM05VL; GM05VA; GM06VL (60 Daewoo walking); GM07VA (Daewoo DH55, Komatsu walking 60-7); GM08 (Komatsu 60-3 / 5 walking); GM09 (MSPG06-025 / PC60-7 travel motor); GM10; GM17 (PC120-3 / 5 walking); GM18; GM23; GM30H; GM35VA; GM35VL (travel motors); GM38VB (SK200-8, Kato travel motor 1023-3); DNB08. |
| Rexroth Series: |
| A4V40; A4V56; A4V71; A4V125; A4V250; A4VFO28; A4VSO40; A4VSO71; A4VSO125; A4VSO180; A4VSO250; A4VSO355; A4VSO500; A4VF500 / A4F500; A4VG28 (A4F028); A4VG50;; A4VG40; A4VG45 A4VG56; A4VG71; A4VTG71; A4VG90 (A4VT90HW / 32R); A4VHW90; A4VTG90 charge pump (Laid thick); A4VG125; A4VG125 Charge pump; A4VG125 charge pump (general use type); A4VG125 charge pump (A10VO28 string type); A4VG12 charge pump (large). |
| Rexroth bent axis pump series: |
| A2F5;A2F12;A2F23;A2VK28;2VK28;A2F28;A2F55;A2F80;A2F107;A2F160;A2F200; A2V225;A2F250;A2V500;A2V915;A2F355;A2F500;A2F1000;A2FO10;A2FO12;A2FO16;A2FO23;A2FO28;A2FO32;A2FO45; A2FO56; A2FO63; A2FO80; A2FO90 / A2FE90; A2FO107; A2FO125 (A2FM125); A2FO200;; A2FO160; A2FO180 A2FO250; A2FO500; A6V28; A7V55 / A8V55; A7V58; A7V80 / A8V80; A7V107 / A8V107; A7V160 / A8V160; A7V200; A7V225 ; A7V250; A7V355; A7V500; A6VM / A7V1000; A6VM / A7VO12; A7VO28; A7VO55; A7VO80; A7VO107; A7VO160; A6VM160; A6VE160; A6VM200; A6VM500; A7VO172; A7VO200; A7VO250; A7VO355; A7VO500. |
| Sauer Series: |
| PV20; PV21 (PVD21); PV22; PVD22 dual pump; PV23 (PVD23); PV24; SPV6 / 119; PV25; PV26; PV112; OPV27; MF16A; MFO35; MF500; MPVO46 / M46; MPR63; MPV45. |
| Eaton Series: |
| 3321/3331 (Eaton 006); Eaton 3322 (EATON3322); 4621/4621-007; 5421/5431 (Eaton 23); Case 1460 (CASE1460); Case CS05A; Eaton 3932-243; Eaton 6423; 7621 (Eaton 24-7620); Road roller (Eaton 78462). |
| Vickers series: |
| PVE19;TA19;PVE21;PVH45;PVH57;PVH74;PVH81;PVH98;PVH106(HPN-1398);PVH131;PVH141;PVB5;PVB6;PVB10;PVB15(PVQ32 some common);PVB20;PVB29;PVBQA29-SR;PVQ40 /50; PVB110; TB35; B45. |
| LINDE series |
| HPR55/75/105/135/165/210/280 ;MPV45-01 MPV63-01; HMR75/105/135/165;MPF55-01; MPR28/45/63/71; HPR75/90/100/130/160;BPV35/50/70/100/200;B2PV35/50/75/105/140;BMF35/55/75/105/140;BMV35/55/75/105/135; BPR55/75/105/140/186/260;HPV55T/75/105/135/165/210; HMF28/35/50/55/75/105/135/165/210;HPV130-01. |
| Parker series |
| PVP16/23/33/41/48/60/76/100/140;PVM16/23/28;PV016/020/023/028/032/040/046/063;F11-005/006/012/014/019/10/28/39/80/110/150/250;F12-030/040/060/080/110/125/150/250;V12-060/080 V14-110/160;P2/P3-060/075/105/145;PAVC 33/38/65/100 |
