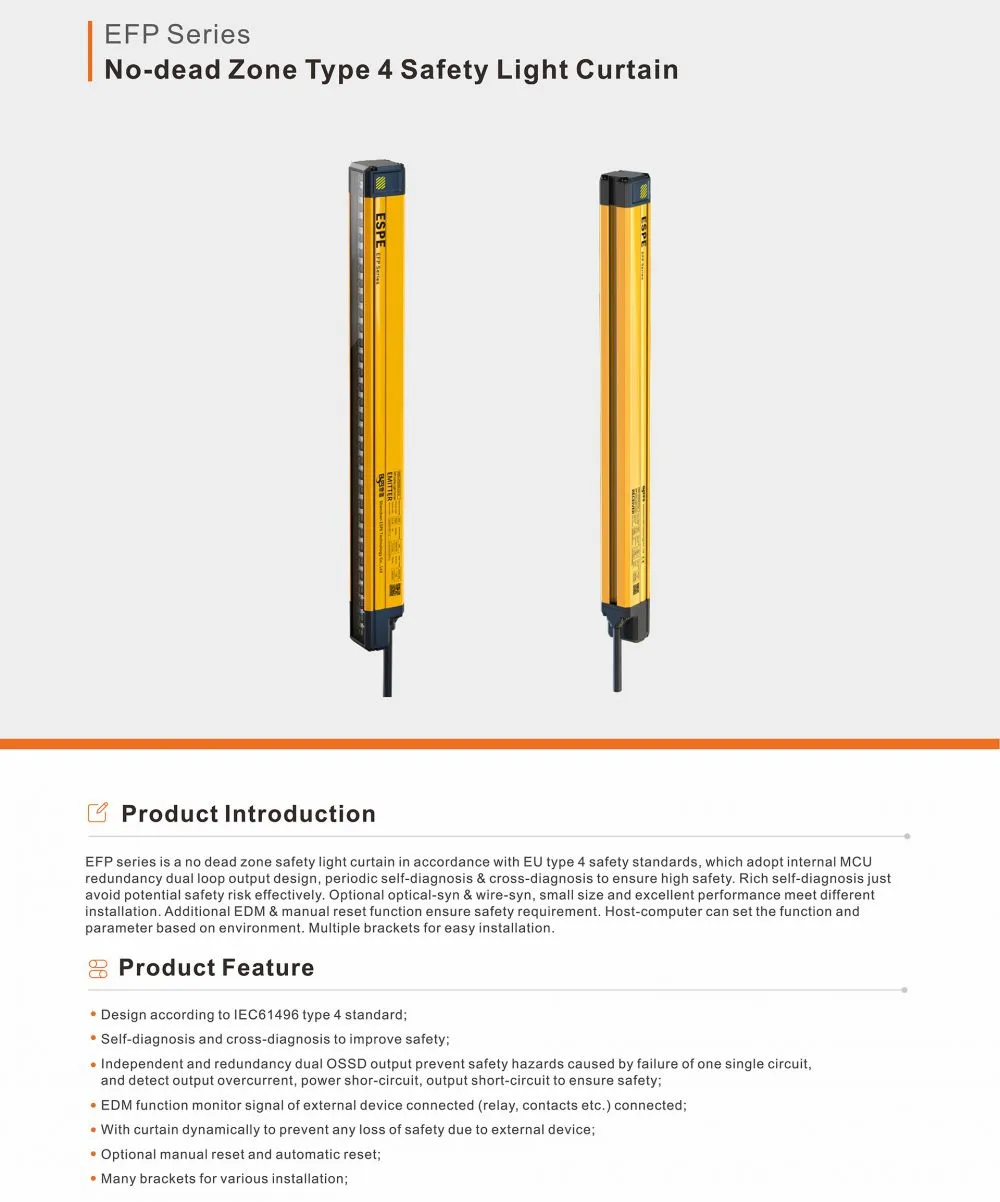

Product Introduction

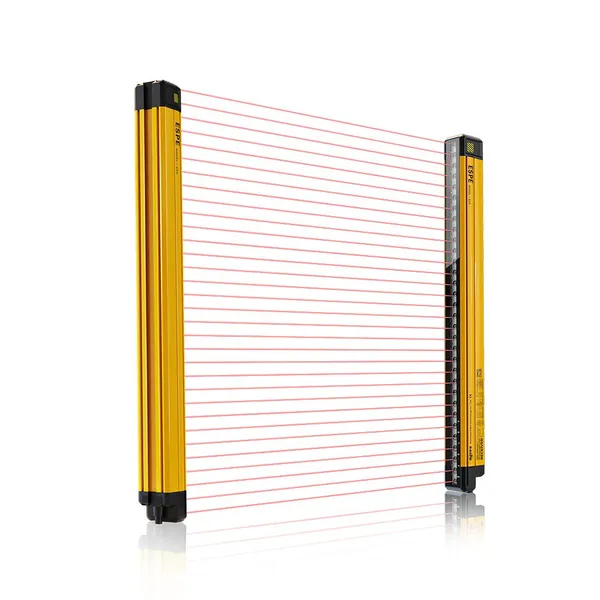

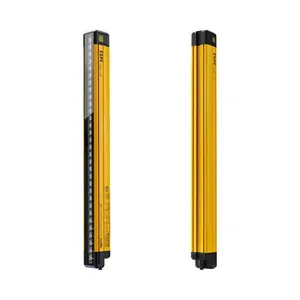

EFP series is a no dead zone safety light curtain in accordance with EU type 4 safety standards, which adopt internal MCU
redundancy dual loop output design, periodic self-diagnosis & cross-diagnosis to ensure high safety. Rich self-diagnosis just avoid potential safety risk effectively. Optional optical-syn & wire-syn, small size and excellent performance meet different installation. Additional EDM & manual reset function ensure safety requirement. Host-computer can set the function and parameter based on environment. Multiple brackets for easy installation.
Product Feature
Design according to IEC61496 type 4 standard;
Self-diagnosis and cross-diagnosis to improve safety;
Independent and redundancy dual OSSD output prevent safety hazards caused by failure of one single circuit, and detect output overcurrent, power shor-circuit, output short-circuit to ensure safety;
EDM function monitor signal of external device connected (relay, contacts etc.) connected;
With curtain dynamically to prevent any loss of safety due to external device;
Optional manual reset and automatic reset;

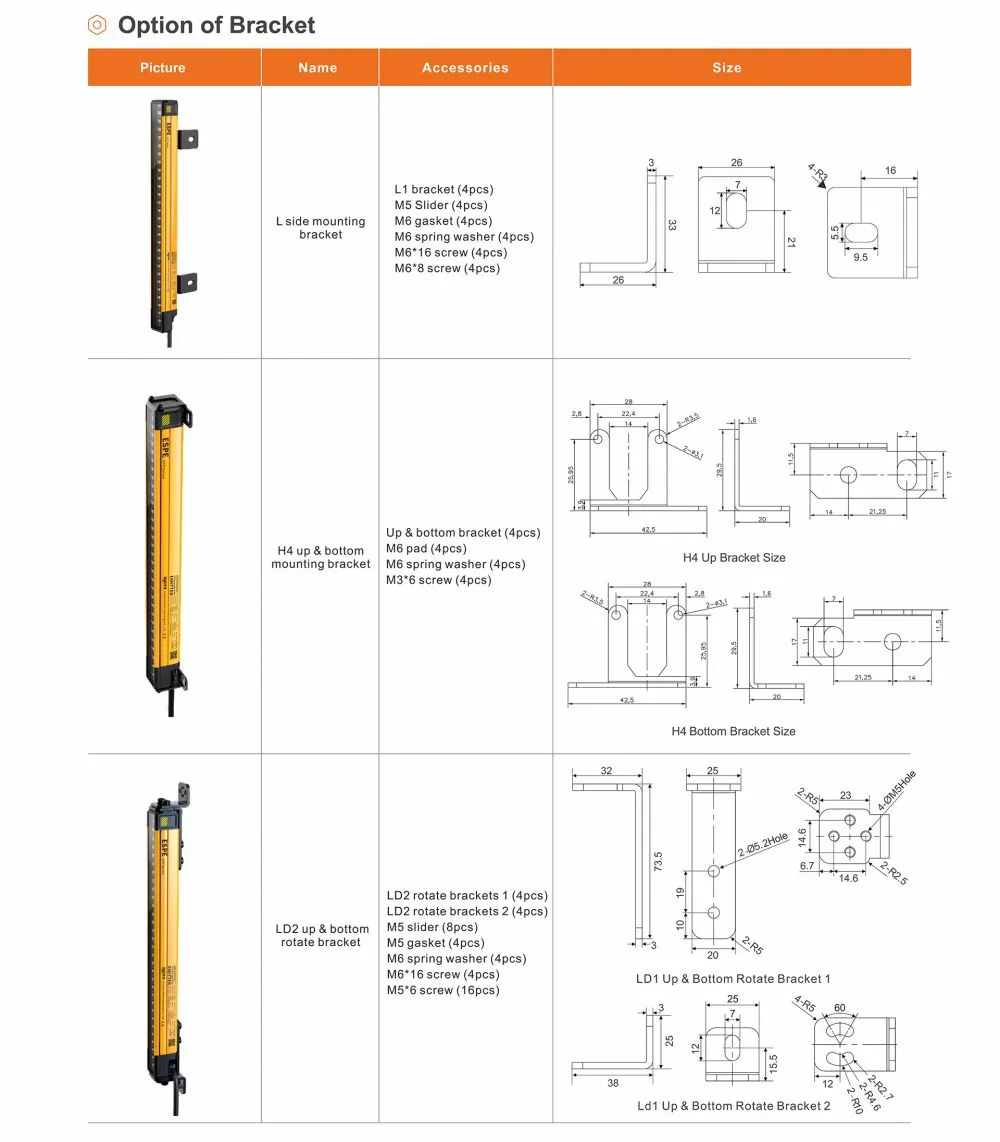

Many brackets for various installation.
