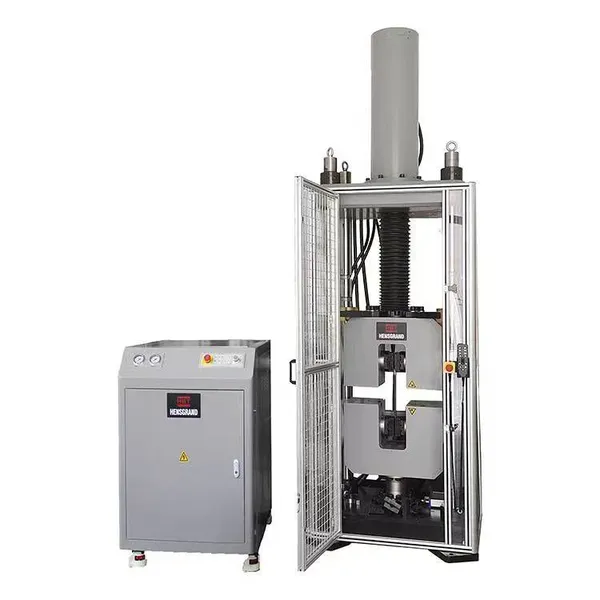

HST WAW-F Series AC133 ISO15832-2 Hydraulic Servo Universal Rebar Testing Machine
US$ 1000 - 3999
MOQ: 1 Set
Key Specifications
Get Latest Price
brand name:
HST OR OEM
place of origin:
Shandong, China
customized support:
OEM, ODM
Payment & Shipping
Payment Methods:
Port of Shipment:
China
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
HST M6 M8 M10 M12 M24 M32 Hydraulic Universal Testing Machine Fastener Grips Bolt Nut FixtureUS$ 87473.75 - 90972.70MOQ: 1 Set -
HST WE Dial Gauge Compression Tensile Press Testing Equipment Price Analogue Display Electric Hydraulic Testing MachineUS$ 48985.30 - 55983.20MOQ: 1 Set
-
HST ISO Qualified 1000KN Computer Display Hydraulic Universal Testing MachineUS$ 83974.80 - 90972.70MOQ: 1 Set
-
HST 100 Ton Hydraulic Universal Tensile Testing Machine Utm PriceUS$ 9999 - 19899MOQ: 1 Set
-
HST Cement Concrete Computerized Hydraulic Compression Universal Measuring MachineUS$ 76976.90 - 83974.80MOQ: 1 Set
brand name
HST OR OEM
place of origin
Shandong, China
customized support
OEM, ODM
power
Hydraulic
warranty
1 year
model number
WAW-300/600/1000/2000/3000F
Max test force
300/600/1000/2000/3000KN
structure
4 column
Load range
1%~100%FS
Load accuracy
≤±1%
Test force resolution value
0.01kN
Deformation Measurement Range
1%-100% of extensometer measurement range
Deformation indication error
± 1%of indicating value
Max.piston stroke
680mm
Displacement Indication Error
1% of indicating value
Displacement Resolution
0.01mm
Products Description
Application
WAW-J Series Universal Testing Machines is designed with single workspace. It can do tension, compression, bending and shearing tests. Force measurement is through load cell. With long travel actuator stroke, it is suitable to test standard specimens, long length specimens, and specimens with large elongation.
2.Standards
2.1Load meets or exceeds the following standards:
ASTM E4, ISO7500-1, EN10002-2, BS1610, DIN 51221.
2.2 Strain measurement meets or exceeds the following standard:
ASTM E83, ISO 9513, BS3846, EN10002-4
2.3 Also conform to some other standards:
ASTM E8, ASTM A370, ASTM 615, ISO 6892-1, ISO 146303, ISO 156301, BS 4449.
3.Safety Device
3.1Stroke protection: Machinery,computer double protection, prevent over preset
3.2Force protection: system setting
3.3Emergency stop device: handing emergencies
4. Technical parameter:
Model |
WAW-300J |
WAW-600J |
WAW-1000J |
WAW-2000J |
WAW-3000J |
||||
Max. Load capacity(kN) |
300 |
600 |
1000 |
2000 |
3000 |
||||
Structure |
Four column |
||||||||
Accuracy of testing load(%) |
±1 |
||||||||
Accuracy of deformation(%) |
±1 |
||||||||
Test Range |
2%-100% |
||||||||
Deformation measurement range |
2%-100% |
||||||||
Posion rising speed（mm/min） |
0-250 |
0-250 |
0-150 |
0-100 |
0-100 |
||||
Piston descending speed（mm/min） |
0-250 |
0-250 |
0-180 |
0-100 |
0-100 |
||||
Test Force Loading Rate Range |
0.02%-2%FS/s |
||||||||
Host structure |
2 |
4 |
4 |
4 |
4 |
||||
Max. Tensile space(mm) |
400 |
580 |
680 |
800 |
800 |
||||
Max. Compression space(mm) |
300 |
460 |
520 |
520 |
520 |
||||
Actuator stroke(mm) |
370 |
580 |
680 |
800 |
800 |
||||
Max. Loading speed(mm/min) |
100 |
100 |
75 |
50 |
100 |
||||
Distance between columns(mm) |
500 |
490x330 |
660x400 |
800x400 |
900x540 |
||||
Clamping method |
Hydraulic Automatic Clamp With Pushing Clamp |
||||||||
