HST-DIT302E

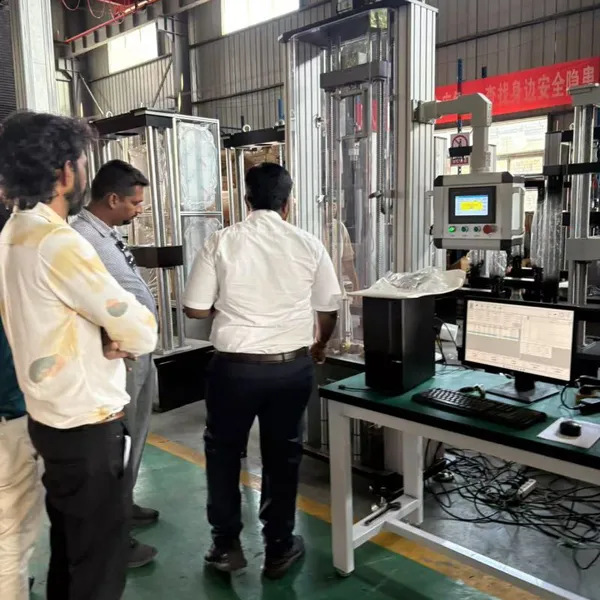

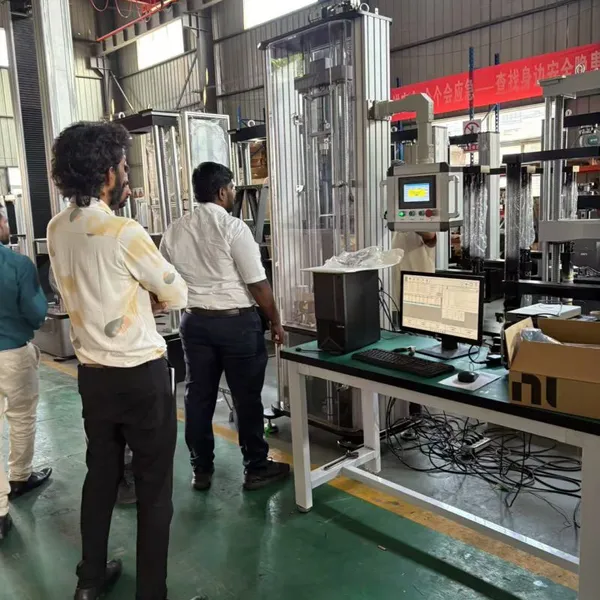

Composite Plate Drop Weight Impact Testing Machine
1. Application:
HST- DIT302E composite plate drop hammer impact tester is mainly suitable for prefabricated damage testing of composite plates, meeting various specifications of the aerospace and automotive industries. It uses impact force value sensors, test systems, and high-speed data acquisition cards to measure the load and deformation transient values of the impacted sample fracture process, that is, the impact absorption work, the force-displacement-energy curve of the impact process, and the characteristic points on the curve: slope discontinuity force F1, maximum contact force Fm, maximum force energy Wm, total impact energy Wt and corresponding displacement, so as to realize data analysis of the sample impact process, reflect the material's ability to resist dynamic impact loads, the force and deformation characteristics of the sample under impact loads, and the dynamic fracture toughness analysis of the material at high strain rates.
2. Function
Mainly suitable for prefabricated damage testing of composite plates
3. Implementation standard
ASTM D 7136/D 7136M Standard Test Method for Measuring the Damage Resistance of a Fiber-Reinforced Polymer Matrix Composite to a Drop-Weight Impact Event
GB/T21239 Test method for compression performance of fiber reinforced plastic laminates after impact
GB/T2611 "General Technical Requirements for Testing Machines"
Note: The standards cited are the latest standards in effect at the date of publication.
4. Performance parameters:
|
model |
HST- DIT302E |
|
Impact energy |
6~300 J |
|
Impact speed |
1.47~4.65 m/min |
|
Hammer lifting speed |
1m/min~3m/min continuously adjustable |
|
Impact height |
110-1100 mm |
|
Hammer positioning accuracy |
1.0 mm |
|
Hammer mass |
5.5~29.5 kg |
|
Hammer head diameter (hemisphere) |
16 mm |
|
Hammer positioning accuracy |
1mm |
|
Impact force sensor maximum load |
100kN |
|
Static linear error of impact force sensor |
Full scale ±1% (10%~50%FS) ±2% point by point (50%~100%FS) |
|
A/D sampling resolution |
16 bits |
|
Maximum sampling frequency |
2MHz |
|
Frequency Response |
500kHz |
|
Experimental dynamic error |
<2% |
|
Host size (length × width × height) |
1430 × 670 × 2630 mm |
|
power supply |
AC220V±10% 50Hz 400W |
|
weight |
550 kg |
