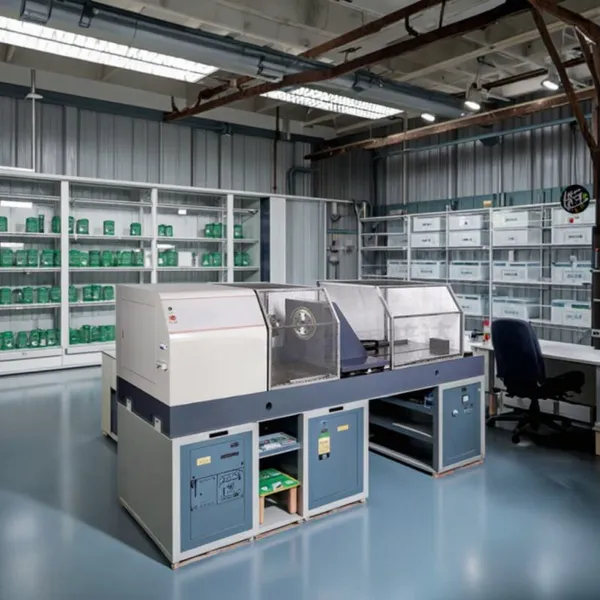

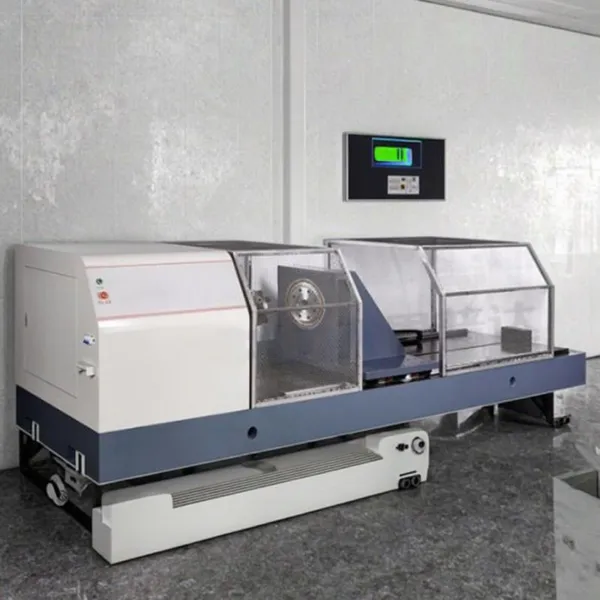

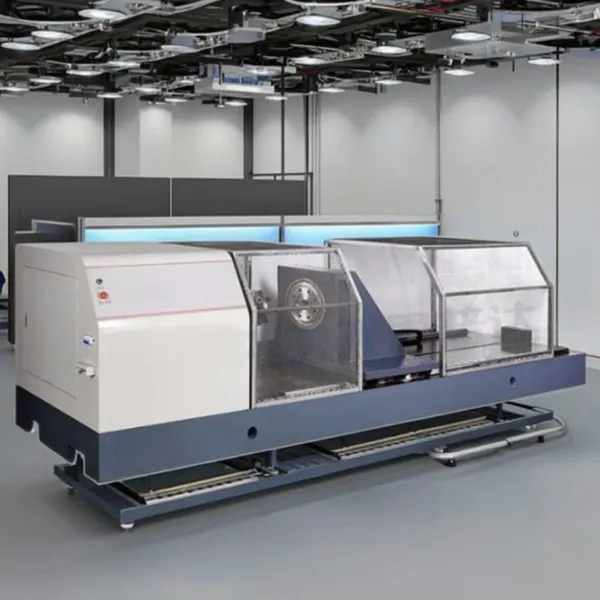

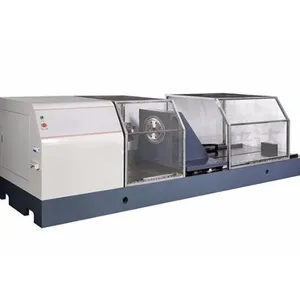

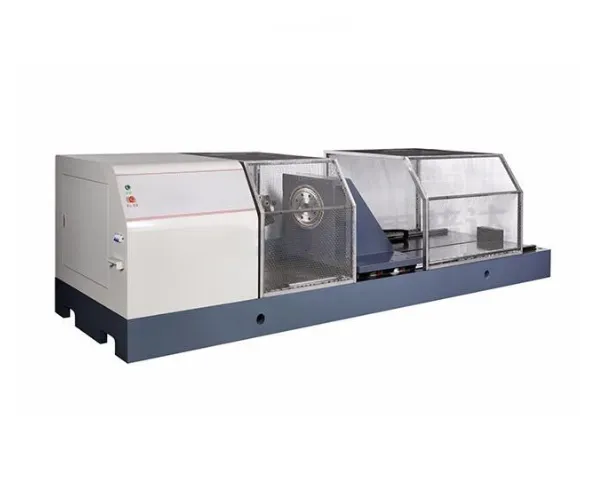

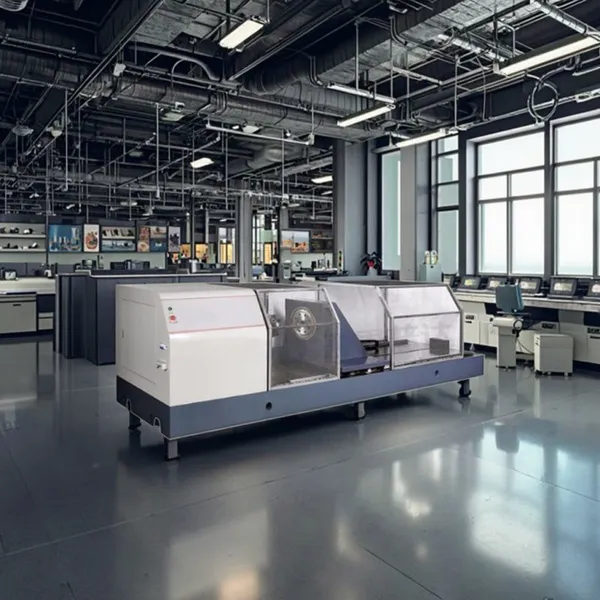

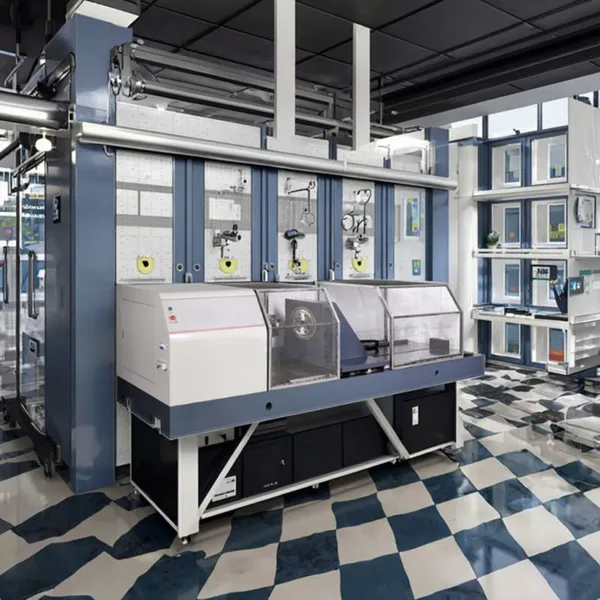

HST-BW1500F M33-M56 Computer Control High Strength Bolt Testing Machine
US$ 187543.72
1 - 2 Set
US$ 103568.92
≥3 Set
Key Specifications
Get Latest Price
Type:
Testing Machine
Accuracy:
≤± 0.5%
brand name:
HST
Payment & Shipping
Payment Methods:
Port of Shipment:
China
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
HST-WN50 Bone Screw Torque Testing MachineUS$ 123862.83 - 153953.80MOQ: 1 Set -
HST-BW5000 M12-M36 High Strength Bolt Torsion Testing MachineUS$ 99370.18 - 117564.72MOQ: 1 Set
-
Wire and Cable Torsion Testing Machine/ Metal Wire Torsion TesterUS$ 18124.57 - 18194.54MOQ: 1 Set
-
Computer Control Spring Testing Machine Manual Torsion Metal Materials Wire Torsion Testing Machine PriceUS$ 18124.57 - 18194.54MOQ: 1 Set
-
3mm 6mm 10mm Copper Metallic Wire Rod Torsion Testing Machine Cable Torsion Tester Torsion Test EquipmentUS$ 18124.57 - 18194.54MOQ: 1 Set
Accuracy
≤± 0.5%
brand name
HST
place of origin
Shandong, China
Application
Universal Testing, Auto Testing, Plastic Testing, Textile Testing, Paper Testing, Strength Testing, Tensile Testing, Compression Testing, Impact Testing
customized support
OEM, ODM
power
/
Protection Class
IP65
Voltage
220 V, 380 V
warranty
1 Year
Product name
Bolt Testing Machine
Model
HST-BW1500F
Max test torque
10000Nm
Effective torque measurement range
1000~10000Nm
Measuring range of axial force
200-1500kN
Output speed
1-360°/min
Tester tolerance repeatability error
1%
Test Angle accuracy
≤±0.1°
Bolt specification
M33-M56 Length range: 200-500mm
Power
AC 380/220 50Hz
HST-BW1500F M33-M56 Computer Control High Strength Bolt Testing Machine
If you want to know more models, price please contact Lisa:
Email: lisa@hssdtest.com Whatsapp/Wechat: 008615866783008
Products Description
Application
This test system is designed according to the test requirements of users. It is mainly used for static torsion test of
high-strength bolts. It meets the requirements of GB1231-2006 "Technical conditions for high-strength large hexagonal head bolts, large hexagonal nuts and washers for steel structures". The test system is mainly composed of a host, a test mechanism, a precision loading mechanism, a precision system, a control data acquisition system, a computer and its test software, and other necessary loading brackets and accessories. It is an ideal high-performance test equipment for factories, mines, quality inspection units, scientific research units, and colleges and universities. It is suitable for torsion-tensile mechanical
performance testing of high-strength bolts and large hexagonal head bolts. It can automatically display the torque, angle, and
axial force of bolt and nut pre-tightening, and store and output data. Technical indicators such as torque coefficient and the
relationship between torque and torsion angle, and curves such as torque-axial force-torsion angle are available.
Users can also provide relevant technical standards, such as ISO, ASTM, DIN, and JIS, and realize the control of test methods and
related data collection and processing according to the standards provided by users.
high-strength bolts. It meets the requirements of GB1231-2006 "Technical conditions for high-strength large hexagonal head bolts, large hexagonal nuts and washers for steel structures". The test system is mainly composed of a host, a test mechanism, a precision loading mechanism, a precision system, a control data acquisition system, a computer and its test software, and other necessary loading brackets and accessories. It is an ideal high-performance test equipment for factories, mines, quality inspection units, scientific research units, and colleges and universities. It is suitable for torsion-tensile mechanical
performance testing of high-strength bolts and large hexagonal head bolts. It can automatically display the torque, angle, and
axial force of bolt and nut pre-tightening, and store and output data. Technical indicators such as torque coefficient and the
relationship between torque and torsion angle, and curves such as torque-axial force-torsion angle are available.
Users can also provide relevant technical standards, such as ISO, ASTM, DIN, and JIS, and realize the control of test methods and
related data collection and processing according to the standards provided by users.
Main parameters:
MODEL |
HST-BW1500F |
|
Maximum torque |
10000Nm |
|
Effective measurement range of torque |
1000～10000Nm |
|
Measuring range of axial force |
200-1500kN |
|
Output speed |
1-360°/min |
|
Tester tolerance error and repeatability error |
1% |
|
Maximum axial bolt axial force |
1500kN |
|
Effective measurement range of bolt shaft force |
200-1500 kN |
|
Test machine axial force tolerance and repeatability error |
1% |
|
Torsion angle measurement range |
(0.1～9999)° |
|
Rotation angle measurement value tolerance |
1% |
|
Test angle accuracy |
≤±0.1° |
|
The tolerance of elongation measurement is |
±1/100mm. |
|
bolt specification |
M33-M56 Length range: 200-500mm |
|
Power Supply voltage |
AC 380/220 50Hz |
|
Control mode |
precision control. |
|
NOTE: 1.The system has protection functions such as overload and specimen fracture. 2 The computer screen displays the real-time values and related curves of various test parameters.3. The printer prints test reports and curves. |
||
