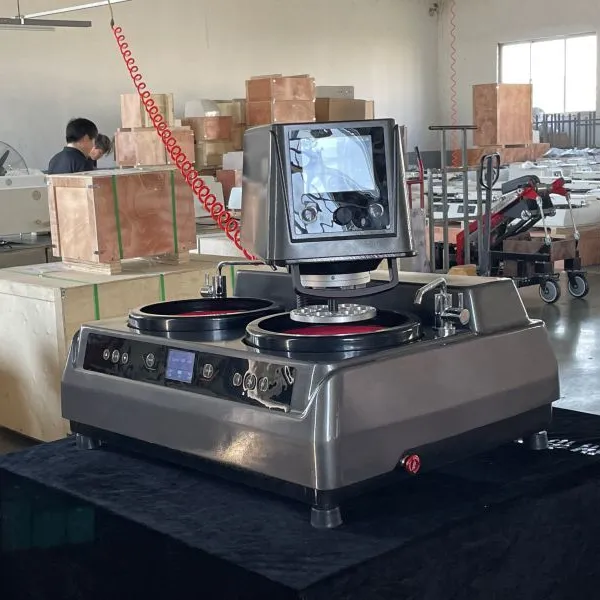

MOPAO4S double Discs Sample Automatic Polisher Grinder
Overview:
The automatic grinding and polishing machine is a double-disc desktop grinding and polishing machine. According to international standards, it adopts international advanced technology to develop and manufacture a new type of grinding and polishing equipment that integrates central afterburner and single-point afterburner.
Features:
The rotation direction of the grinding and polishing disk can be selected arbitrarily, and the grinding and polishing disk can be quickly replaced; the multi-sample clamp tester, and the specific pneumatic single-point loading and center loading functions.
This machine adopts an advanced microprocessor control system, which makes the rotation speed of the grinding and polishing disc and the grinding and polishing head infinitely adjustable, and the setting of sample preparation pressure and time is intuitive and convenient.
Only need to replace the grinding and polishing disc or sandpaper and fabric to complete the grinding and polishing process. So that the machine shows a wider range of applications.
It has the characteristics of stable rotation, safety and reliability, low noise and the use of cast aluminum base to increase the rigidity of grinding and polishing.
The machine is equipped with a water cooling device, which can cool the sample during grinding to prevent the metallographic structure from being damaged due to overheating of the sample and to wash away the abrasive grains at any time. It is more beautiful and elegant, and has improved anti-corrosion, anti-rust performance and easy to clean.
It is suitable for automatic sample preparation in the process of rough grinding, fine grinding, rough polishing and fine polishing of metallographic samples. It is an ideal sample preparation equipment for enterprises, scientific research units and college laboratories.
Main Technical Parameters:
|
Model |
Mopao4S |
|
Diameter of grinding and polishing disc |
φ250mm (φ230mm, φ300mm can be customized) |
|
Grinding and polishing disc speed |
50-1000 r/min (stepless speed regulation) and 300 / 600 / 900 r/min (3-level constant speed) |
|
Grinding and polishing disc steering |
adjustable forward and reverse options |
|
Grinding and polishing head speed |
5-150 r/min (stepless speed regulation) |
|
Number of preparation samples |
6 |
|
Input air source |
0.4-0.7Mpa |
|
Sample preparation time |
0-3000 S |
|
Sample preparation pressure |
single point 20-70N center 150-300N |
|
Sample diameter |
factory standard φ30mm (customizable diameter φ22-φ45mm) |
|
Input voltage |
single-phase AC220V 50Hz |
|
Input power |
1.1KW |
|
Appearance size |
735*570*590mm |
|
Net weight |
100KG |
|
Gross weight |
120KG |
