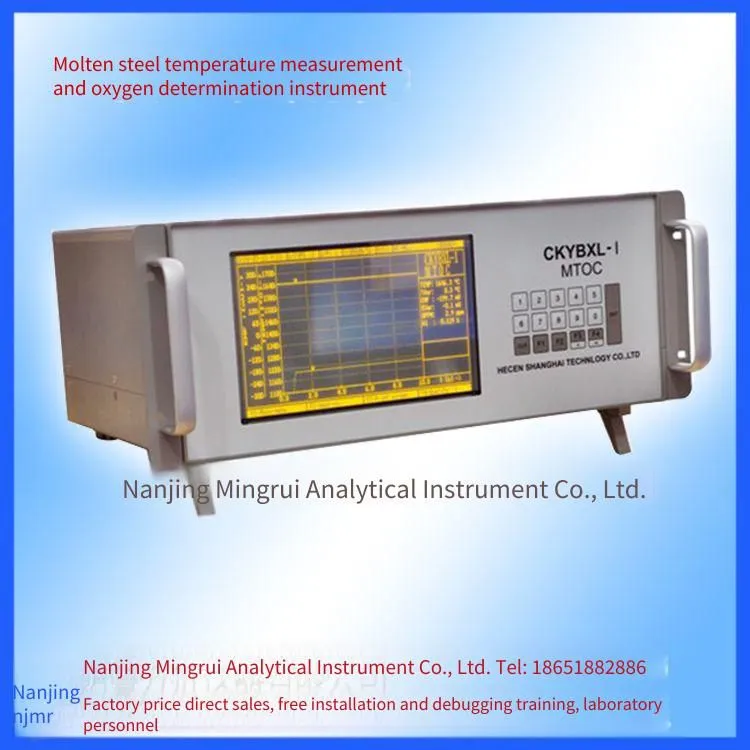

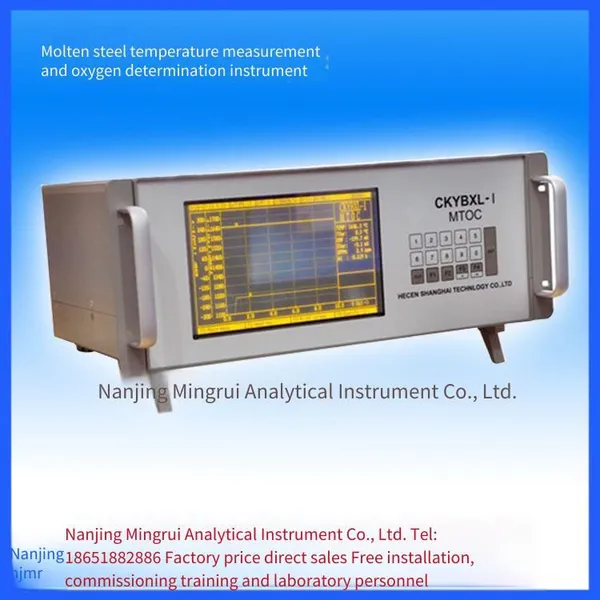

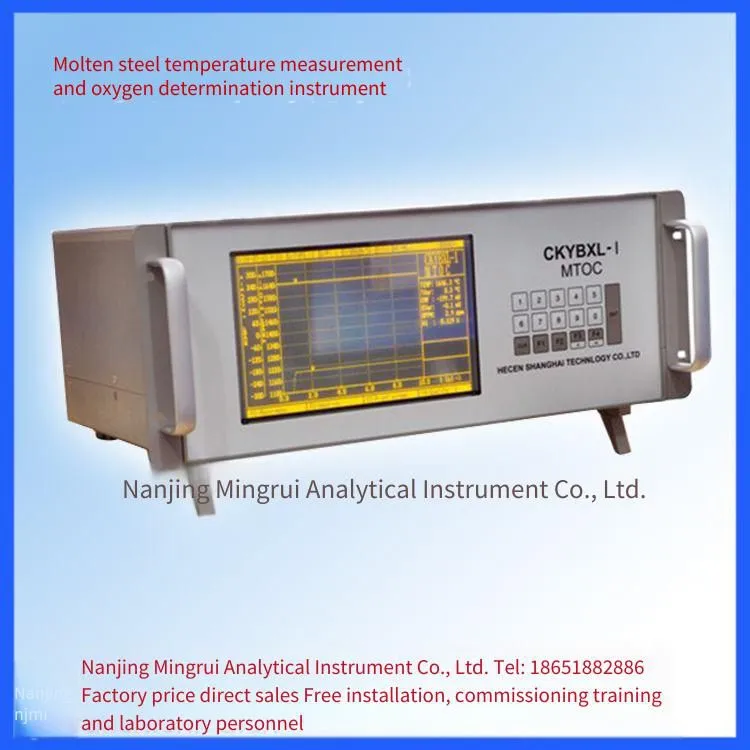

Nanjing Mingrui CKYBXL-1 MTOC Type Molten Steel Oxygen and Carbon Content Detector is a special analytical instrument for on-line measurement of temperature, carbon and free oxygen content in molten steel. It has the function of real-time display of measurement curves, measurement processes and results, which facilitates the specific analysis of the reasons for measurement data errors. It has a data storage function, and historical data can be randomly called, viewed, printed and output as serial data. Phone: 18651882886 (WeChat ID).
The instrument shell is made of dust-proof steel shell and can be placed on the on-site operation platform or control room for use. It is an advanced intelligent instrument specially used for on-line measurement in steelmaking, ironmaking and non-ferrous metals. Through software programming, the screen shows in detail the optional operation prompts for the operator's next step, guiding them to complete the operation process step by step. It can perform real-time signal measurement, thermodynamic formula calculation, display measurement data and curves, and perform optimized data processing, showing the evaluation level of the measurement data. It is equipped with input and output interfaces for peripheral communication, which can be conveniently and quickly matched with external auxiliary equipment such as PLC networks, printers, remote large-screen displays, measurement status indicator lights, buzzers, and conversion box control systems. All kinds of measurement errors during the instrument measurement process, such as the nature of errors like measurement errors and disconnection of the probe signal connection wire, are clearly displayed on the instrument display screen, which greatly facilitates on-site maintenance and repair for users. Various measurement parameters of the instrument, including the graduation number of the supporting thermocouple, measurement time, measurement start condition value, interface parameters, and formula parameters, can be modified and set through keyboard input according to the user's production process requirements, meeting the requirements of different steelmaking processes for users.
Instrument Features:
◎ 8.4-inch LCD liquid crystal display
◎ Switchable display of measurement curve maps and large digital measurement data
◎ Can store 1000 results of measurement data maps
◎ Calculation formulas can be programmably modified
◎ Diversified transmission formats for measurement data
◎ Diversified instrument communication interfaces
Standard RS232 / Profibus-DP Communication / Four Channels 4-20mA Analog Signal /
Passive BCD Switching Signal Output / measurement status signal switch output
Instrument measurement purposes:
◆ Measurement of liquid temperature and oxygen electromotive force of molten metal
◆ Measurement of molten steel temperature, calculation of free oxygen and carbon content
◆ Calculation of acid-soluble aluminum content in refined molten steel
◆ Calculation of oxygen activity and FeO content in the liquid slag of molten steel
◆ Auxiliary measurement of molten steel level
Overall configuration of the instrument system:
○ CKYBXL-1 MTOC instrument
○ Matching large display screen TTY100-4
○ Matching temperature and oxygen measuring probe
○ Matching temperature and oxygen measuring lance
○ Optional instrument function output board (analog, BCD output, Profibus communication)
○ Matching instrument junction box and conversion box
○ Matching external compensation wire for temperature and oxygen measurement
Instrument performance technical parameters:
Instrument measurement parameters: Temperature TEMP, oxygen electromotive force EMF, oxygen content OPPM, carbon content C%, acid-soluble aluminum content Al%, added aluminum amount Al, iron oxide content in slag MFeO (measured with corresponding sensors)
Instrument temperature measurement range:
Type S thermocouple (Pt-10%Rh/Pt) 400---1760℃
Type R thermocouple (Pt-13%Rh/Pt) 400---1760℃
Type B thermocouple (Pt-30%Rh/ Pt-6%Rh) 600---1820℃
Instrument oxygen electromotive force measurement range:
EMF: -400---+400mV
Instrument measurement accuracy:
Temperature measurement accuracy: ±1℃ (Working environment temperature 18-35℃)
EMF measurement accuracy: ±1mV
Instrument usage requirements:
AC power supply: AC100-240V±10%, 50-60Hz, 60VA
Ambient temperature: 0-50℃
Instrument measurement status signal output:
High-power AC signal output: (Solid-state relay isolation output)
■Switch voltage requirement: 60-240V, 50-60Hz
■Switch current: 2A
DC switch signal output: (Reed relay isolation output)
■DC voltage: 100V
■Switch current: 300mA
Technical parameters of the analog output board:
Impedance: MAX 500Ohm
Output accuracy: ±0.1%
Instrument dimensions and weight:
Instrument dimensions: 490 (width) × 195 (height) × 360 (thickness)
Instrument weight: 10KG
