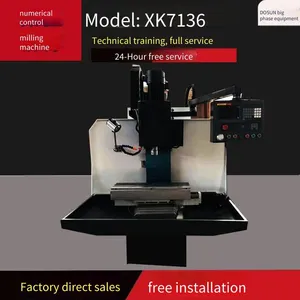

Cnc Milling Machine Xk7136 Cnc Milling Machine Bed Cnc Milling Machine
Key Specifications
Get Latest Price
Main Markets:
North America, South America, Eastern Europe, Southeast Asia, Africa, Oceania, Mid East, Eastern Asia, Western Europe, Central America, Northern Europe, Southern Europe, South Asia, Domestic Market
Location:
Yancheng, Jiangsu, China
Payment & Shipping
Payment Methods:
Port of Shipment:
China
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
Cnc Milling Machine Xk7126 Cnc Milling Machine, Small Bed-type Cnc Milling MachineNegotiableMOQ: 0 Unit -
640 Machining Center, Vertical Machining Center 640, Small Cnc Machining CenterNegotiableMOQ: 0 Unit
-
550 Machining Center, Vertical Machining Center 550, Small Machining CenterNegotiableMOQ: 1 Unit
-
1160 Machining Center, Vertical Machining Center 1160, Small Machining CenterNegotiableMOQ: 1 Unit
-
850 Vertical Machining Center, Small Machining CenterNegotiableMOQ: 1 Unit

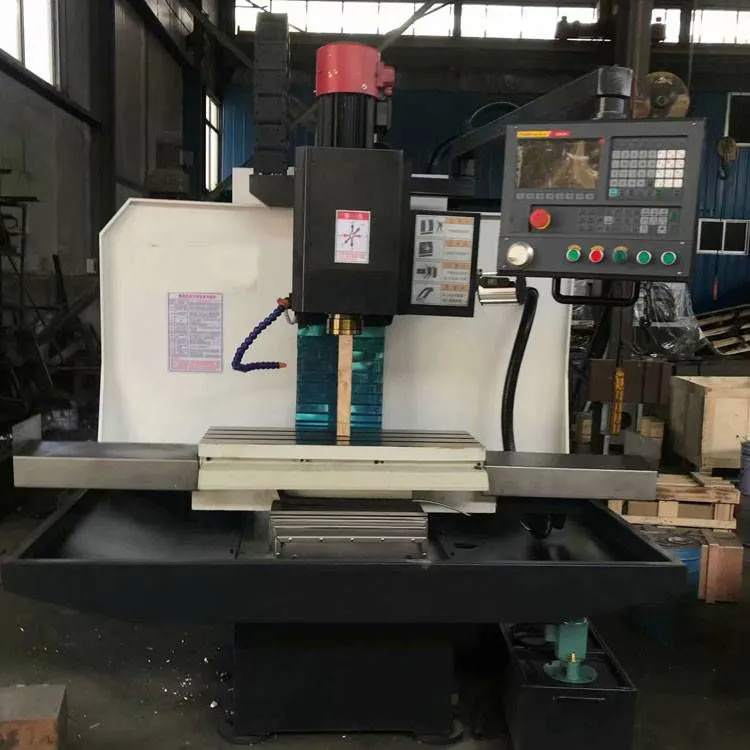

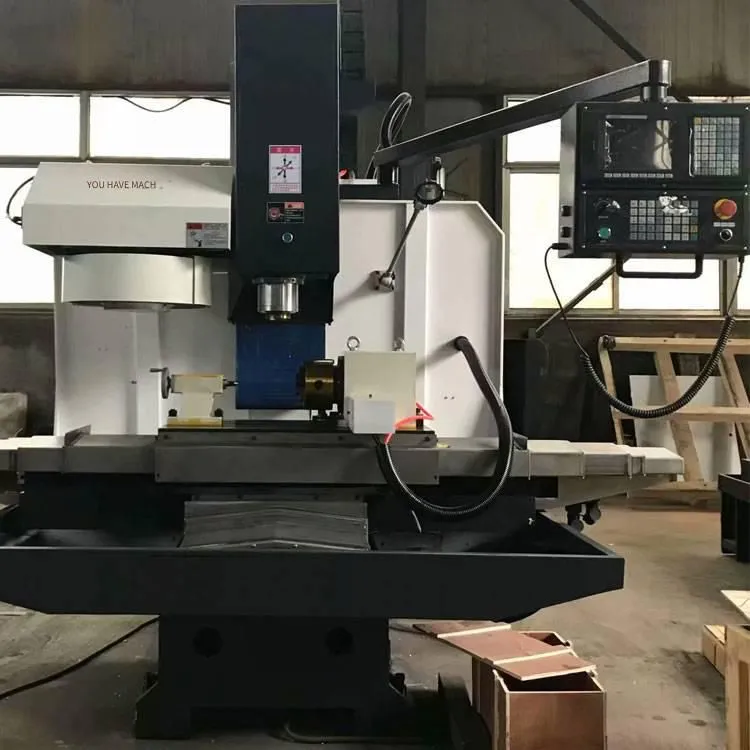

XK7136 Bed CNC Milling Machine | CNC Milling Parameters
| Project | Unit | Technical Parameters |
| X-axis Travel | mm | 900 |
| Y-axis Travel | mm | 360 |
| Z-axis Travel | mm | 400 |
| Distance from Spindle End Face to Workbench Surface | mm | 100-500 |
| Distance from Spindle Center to Column Guide Surface | mm | 460 |
| Rapid Movement (X/Y/Z) | mm/min | 5000/5000/4000 |
| Cutting Feed Speed | mm/min | 1-2000 |
| Workbench Size | mm | 1250×360 |
| Workbench Load Capacity | kg | 400 |
| Number/Width/Pitch of Workbench T-slots | mm | 3/18/80 |
| Spindle Speed Range | r/min | 200-4000 |
| Spindle Motor Power | kW | 5.5 |
| Spindle Hole Taper | - | BT40 |
| Positioning Accuracy | mm | 0.02 |
| Repeatability | mm | 0.01 |
| Machine Net Weight | kg | 2400 |
| Overall Dimensions | mm | 2220×1850×2350 |
Random Accessories and Equipment List of 7136 CNC Milling Machine
Serial Number Name Quantity
1 Fully Enclosed Shield and X/Y/Z-axis Telescopic Shields 1 Set per Machine
2 Automatic Centralized Lubrication System 1 Set per Machine
3 Coolant Device 1 Set per Machine
4 Work Light 1 Set per Machine 5 Transformers, 1 set per unit
6 Machine tool mounting pads, 1 set per unit
7 Electrical cabinet feet, 1 set per unit
8 Air guns, 1 set per unit
9 CNC system 1 set per unit
10 RS232 interface, 1 per unit
