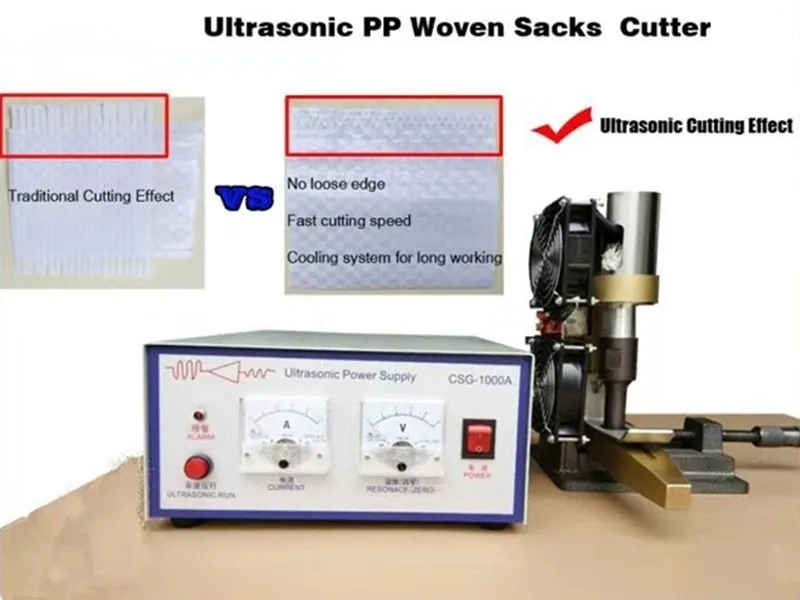

CSG-1000A Ultrasonic Cutter with standard accessories
Description
Our factory is always focusing on designing and manufacturing cutting and welding Ultrasonic equipment intended mainly for geotextiles,technical textiles and FIBC/Jumbo bag/hdpe Woven sac Industries.
Specification
Working power:220V-240V,50HZ-60HZ,5A |
Max rating power:800w |
Matching transducer:LK28-H38-Z4 |
Frequency tracking range:28KHz±400Hz |
Working condition |
Indoor use, humidity≤ 85% RH; ambient temperature: 0-40 ºC |
There should be sufficient space around the machine, no less than 150 mm, to facilitate heat dissipation |
Cutting value range of container bag: 45-400 gsm |
Advantage
1. Smooth, reliable and accurate cutting cut.
2. It can seal the fabric during cutting without deformation or warping.
No knobby, no silk fabrics, no wrinkles, no rough edges cut
4. Stable operation, fast cutting speed, non-stick knife, etc
5. Simple operation, no need for professional people, saving time and labor
6. It is convenient and quick to use and saves time. Workers will not be tired after long operation
HB-800A Ultrasonic cutter standard accessories
The woven bag cutting system is an ultrasonic system specially designed for sewing and cutting woven bags. Intelligent automatic frequency tracking generator, high-Q ultrasonic transducer and cutting tool head have good performance in stitching and cutting of woven bags. The installation of the whole machine is simple and convenient, and the stitching and cutting efficiency is high. The whole machine is equipped with a heat dissipation system and can work continuously.
Specification
Model number |
HB-800A |
Frequency |
28khz |
Ultrasonic power |
800 W |
Cutting speed |
Following the loom |
Cutting thickness |
10mm |
Cutting value range of container bag: |
60-250g |
Advantages :
· Intelligent automatic frequency tracking generator, real-time frequency tracking, to ensure that the ultrasound is in the best working range
· High quality ultrasonic transducer, low impedance, low heat generation, strong amplitude
· High-strength ultrasonic tool head, low heat generation, strong amplitude, strong wear resistance
· Equipped with a cooling system to support long-term continuous work
· Sturdy seam strength, smooth cutting surface, no irritation

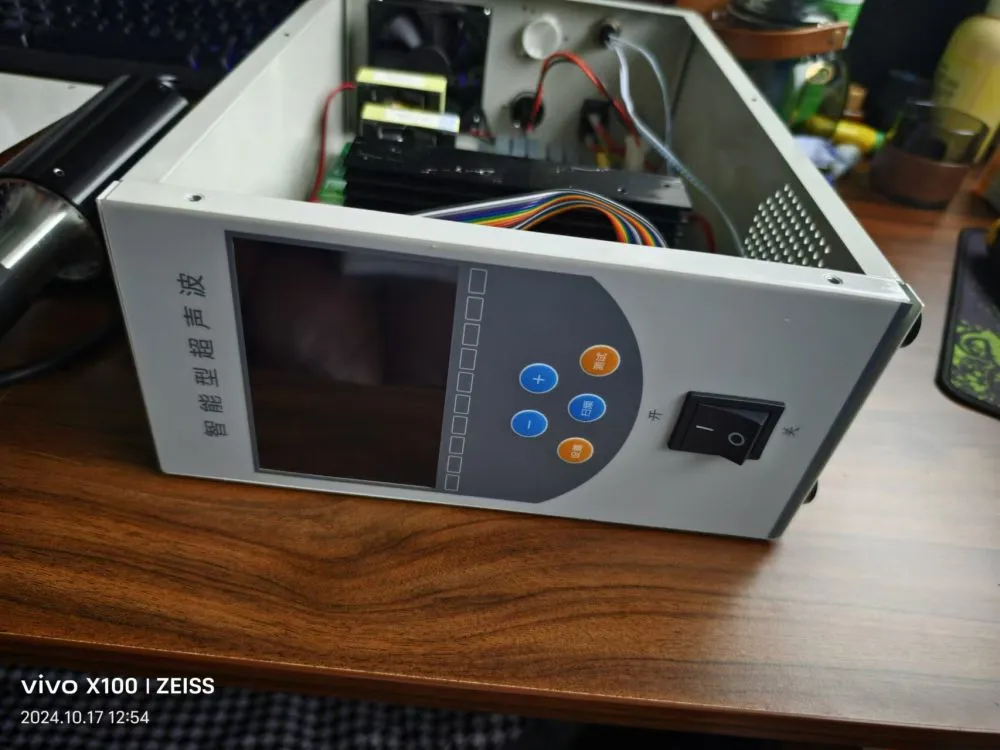

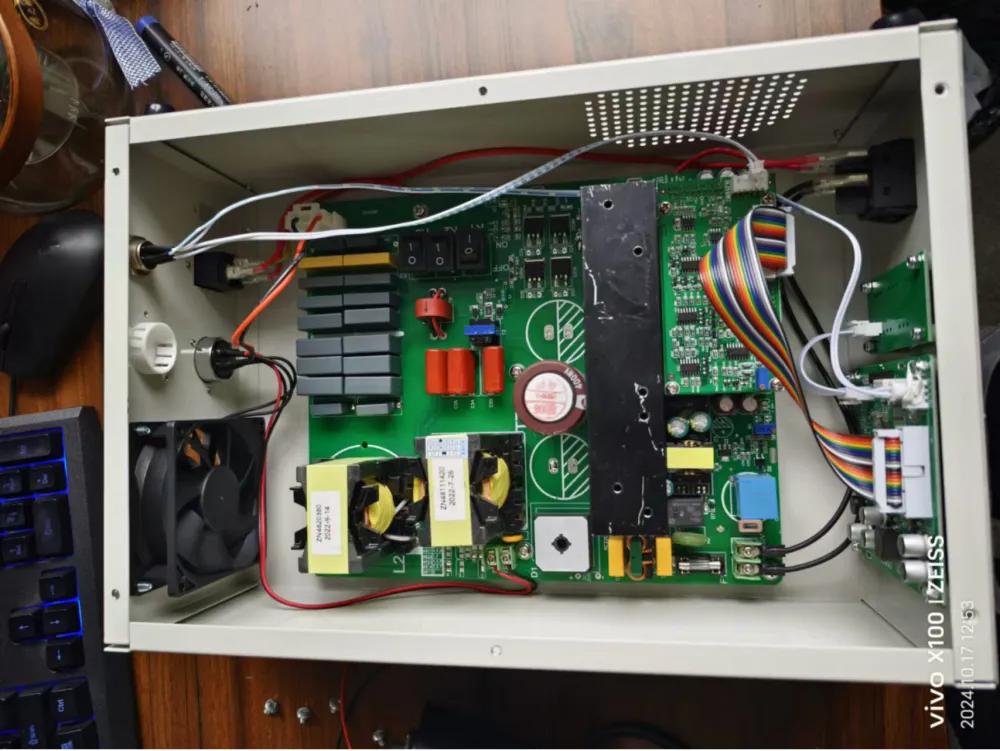

Photo of the inside of the electrical box
Frequently Asked Questions
Q1: How does ultrasonic sealing compare to sewing for woven sacks?
Unlike sewing that punctures material and creates potential leakage points, ultrasonic sealing creates continuous molecular bonds across the entire seam width without perforations. This results in superior moisture barrier properties and up to 30% faster processing.
Q2: Can this handle laminated or coated polypropylene fabrics?
Yes, our adjustable frequency range (20-40kHz) accommodates various material compositions. For specialty coatings, we offer optional pre-seam treatment modules.
Q3: What maintenance is required?
Daily 5-minute horn cleaning and monthly transducer calibration. All maintenance procedures are guided through the touchscreen interface with video tutorials.
Q4: Is the system compatible with recycled PP materials?
Absolutely. Our phase-controlled energy delivery adapts to material density variations common in recycled content, maintaining seal integrity even with 15-20% material inconsistency.
Q5: How quickly can we change sealing patterns?
Pattern changes require only horn replacement (under 10 minutes) with our quick-release system. Standard patterns include straight, zigzag and double-track seams.
Q6: What safety features are included?
Standard features include: emergency stop circuit, ultrasonic emission shielding, thermal overload protection, and pressure-sensitive safety curtains.
