Material:
304
Power Supply:
According To Your Local Supply
Filling Speed:
1000-2000cph
Filling Liquid:
Beer , Carbonated Drink
Container:
12oz, 14oz ,16oz,
Guarantee:
1 Year After Installation
Control:
PLC Control System

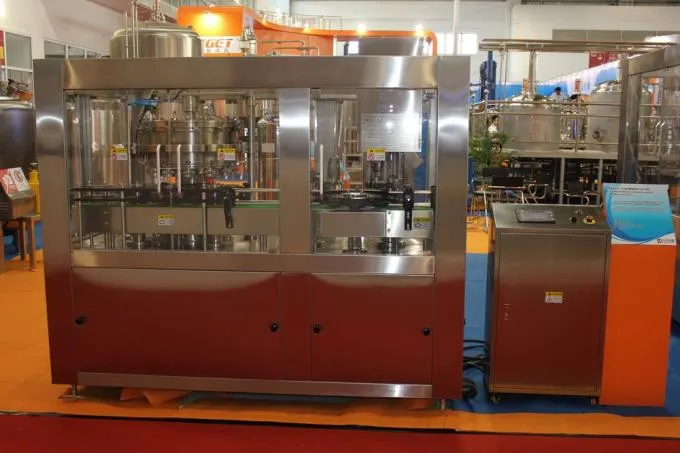

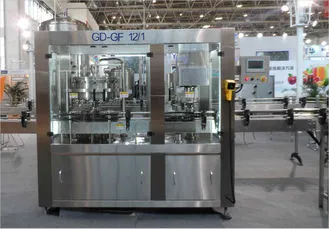

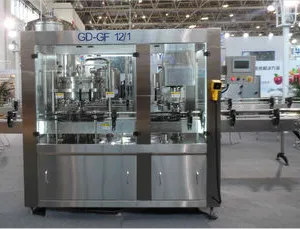

High Speed Monoblock Filler And Capper Can Filling Sealing Machine 12Oz 14Oz 16Oz
Can Filling-sealing 2-1 unit Machine

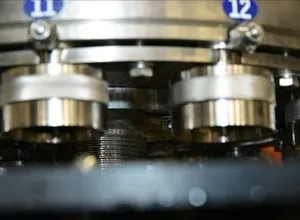

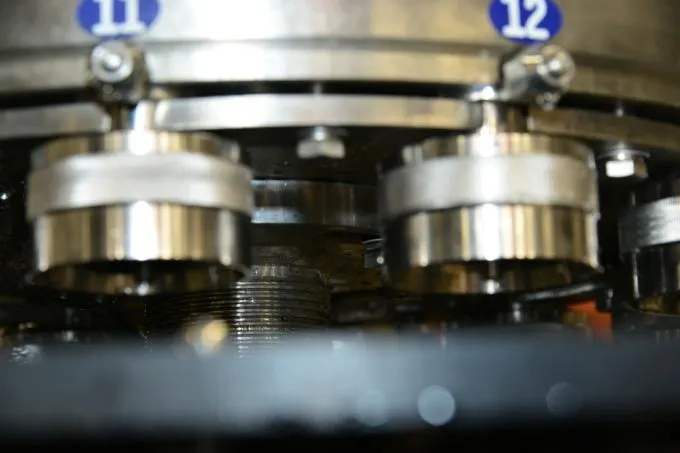

It adopts isobaric filling principle and filling valve adopts high precision mechanical valve. It has advantages of high precision in liquid level and realizing that it only starts to filling when there is a can, otherwise it will stop filling. Using the device structure of filling valve precover device plus supporting can bottom device, it can guarantee the maximum stability of cans when they passing in and out of the filling machine. Filling cylinder braces use worm-gear box going up and down to satisfy cans of different height. Float switches in the filling cylinder ensure a smooth liquid inlet.
The main transmission adopts gear transmission belt and gear box type exposed drive combination with advantages of high efficiency, low noise and smooth operation. It adopts frequency conversion stepless speed regulation and is controlled by PLC industrial computers. Sealing machine and filling machine are connected by hooks coupling universal coupling to make sure them a same working pace.

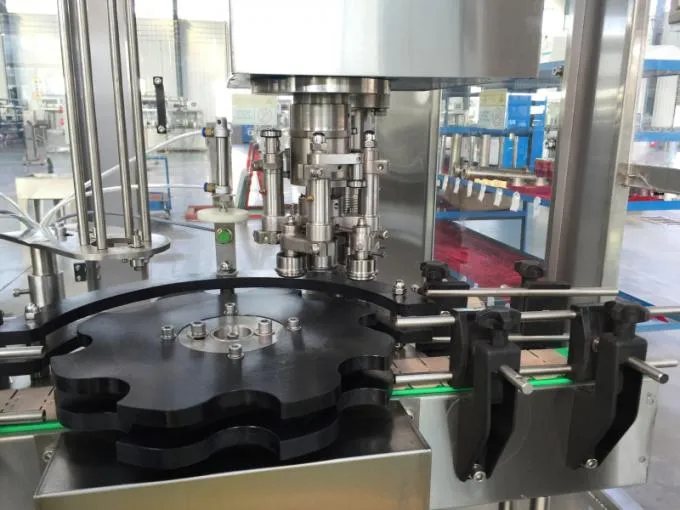

As to sealing machine, the machine has the control system that caps only come down when there are cans and caps will not come if there is no can below to ensure the machine run normally and reduce the cover loss rate.

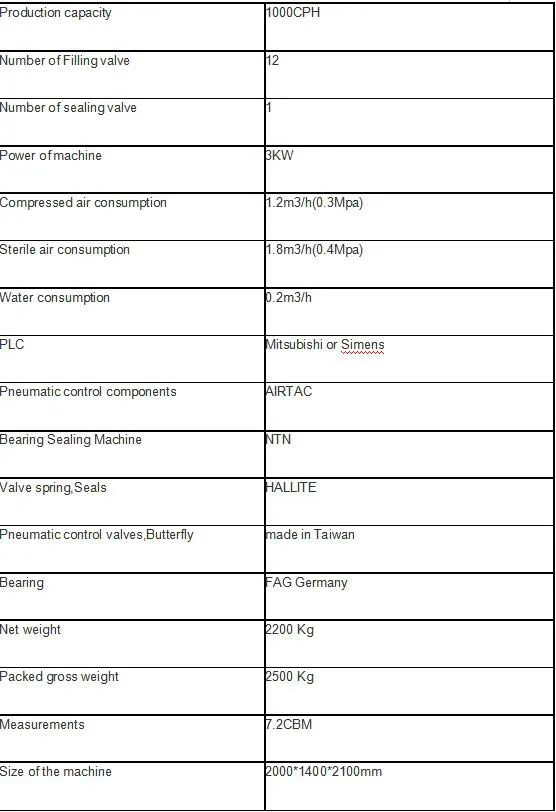

2) Technology parameter
