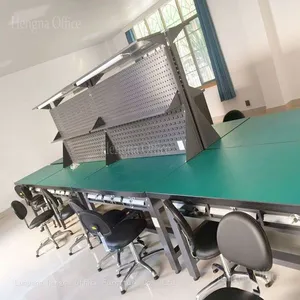

Help CenterESD Workbench | Anti-Static Electronic Assembly Line Workstation With LED Light / HN-ESD02 / Green Mat Tech Bench for PCB Repair
Related Products
-
Steel Workbench With Drawers | Heavy Duty Metal Tool Bench With Lockable Cabinet / HN-SW05 / 1000kg Loading Capacity Workshop FurnitureUS$ 78 - 268MOQ: 5 Combos -
Industrial Workbench | Modular Tool Storage Bench With Perforated Pegboard / HN-IW08 / Heavy Duty Steel Worktable for Maintenance & RepairUS$ 78 - 268MOQ: 5 Combos
-
Laboratory Workbench | Modular Science Lab Station With Power Outlets & Storage / HN-LW03 / Precision Tech Workstation for R&D CenterUS$ 78 - 268MOQ: 5 Combos
-
Packing Workbench | Heavy Duty Warehouse Fulfillment Station With Overhead Light / HN-PW06 / Shipping & Packaging Table for Logistic CenterUS$ 78 - 268MOQ: 5 Combos
-
Garage Workbench | Professional All-in-One Metal Tool Bench With Hanging Hooks / HN-GW09 / Heavy Duty Mechanic Work Table for Auto ShopUS$ 78 - 268MOQ: 5 Combos
In the high-stakes world of electronics manufacturing and PCB repair, Electrostatic Discharge (ESD) is the "silent killer" of sensitive components. A single microscopic spark can compromise a multi-thousand-dollar circuit board. To mitigate this risk, the HN-ESD02 Anti-Static Electronic Assembly Line Workstation offers a meticulously engineered environment that combines superior grounding technology with industrial-grade structural integrity.
Designed specifically for the modern technician, the HN-ESD02 is more than just a table; it is a comprehensive technical ecosystem. Whether you are managing a large-scale SMT assembly line or a specialized mobile repair shop, this Green Mat Tech Bench provides the stability and protection required for high-precision tasks.
Technical Specifications: The HN-ESD02 Benchmark
For procurement managers and lead engineers, the technical parameters define the suitability of a workstation. The HN-ESD02 exceeds international standards for static dissipation and structural durability.
| Feature | Technical Specification |
| Model Number | HN-ESD02 |
| Surface Resistivity | 106Ω−109Ω (Static Dissipative) |
| Primary Material | Heavy-duty Cold Rolled Steel with ESD Powder Coating |
| Desktop Material | High-density MDF with 2mm Double-layer ESD Green Mat |
| Lighting System | Overhead Adjustable LED Light (Flicker-Free, 6500K) |
| Standard Dimensions | 1200/1500/1800mm (L) * 750mm (W) * 800mm (H) |
| Load Capacity | 500kg Static Load |
| Grounding System | Dual-point Grounding with Wrist Strap Junction Box |
Key Features that Empower Productivity
1. Advanced Anti-Static Surface (Green Mat Technology)
The heart of the HN-ESD02 is its high-performance green ESD tabletop. Unlike cheap alternatives that use a thin coating, our bench features a 2mm-thick, double-layer rubber mat. The top layer is dissipative to prevent rapid discharge, while the bottom conductive layer ensures a direct path to the ground. It is heat-resistant, scratch-resistant, and easy to clean, making it perfect for soldering and chemical-heavy repair environments.

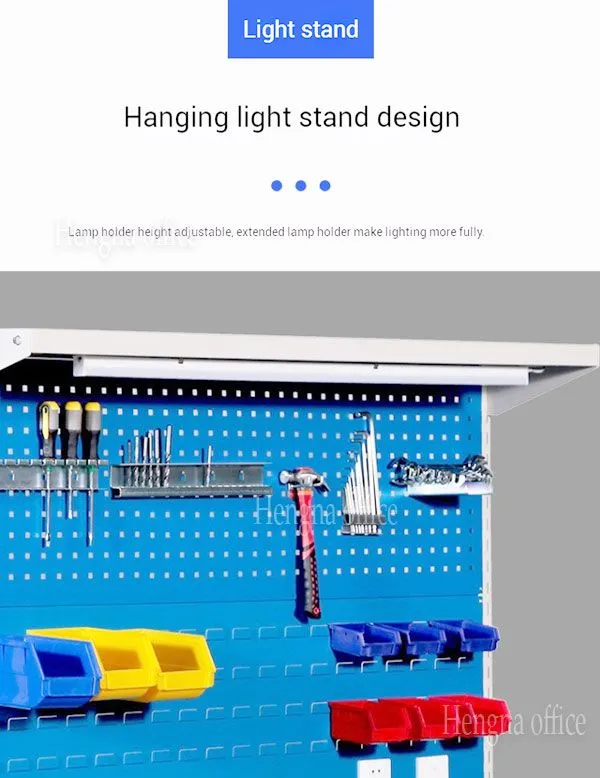

2. Integrated LED Lighting for Precision PCB Repair
Visual clarity is paramount when inspecting solder joints or microscopic components. The integrated overhead LED lighting system provides uniform, shadowless illumination across the entire work surface. Engineered to be flicker-free, it reduces eye strain for technicians during long shifts, directly improving quality control and throughput.

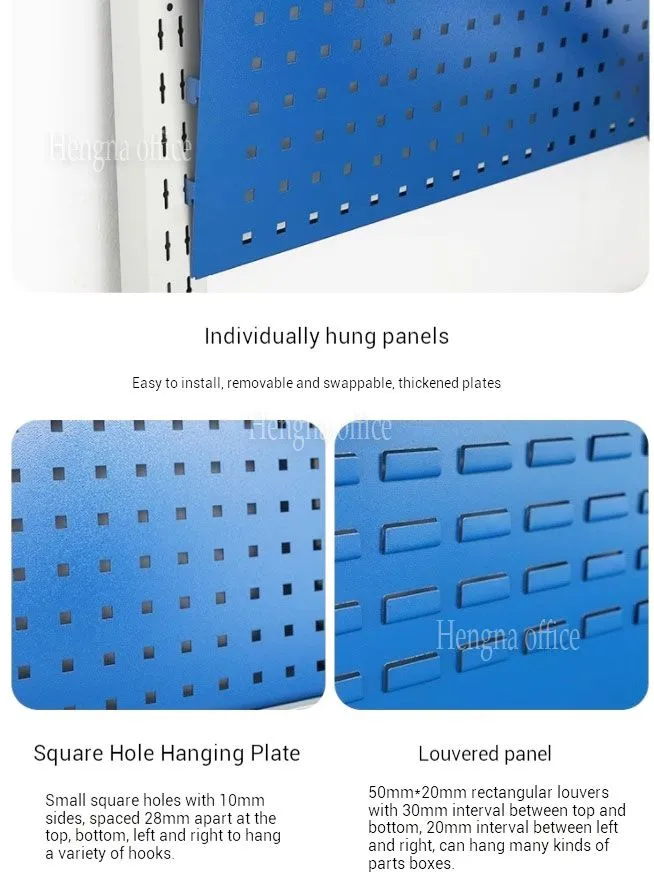

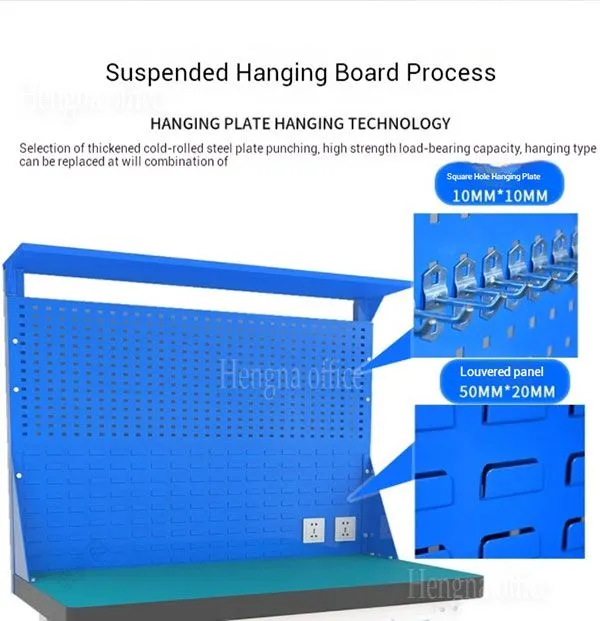

3. Modular Tool Organization (Pegboard & Storage)
The HN-ESD02 functions as a Professional Tool Organizer. The heavy-duty steel pegboard allows for the vertical mounting of specialized tools, bins, and test equipment. This keeps the primary work area clear, allowing the technician to focus on the PCB repair at hand. The lockable drawers provide secure storage for high-value measuring instruments or personal tools.
4. Ergonomic & Modular Design

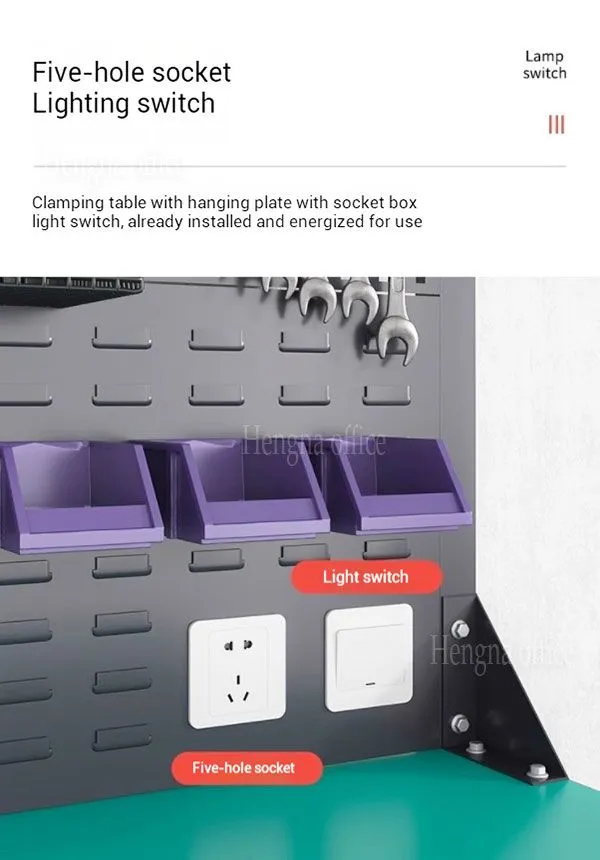

We understand that no two assembly lines are identical. The HN-ESD02 features a modular design that allows for the easy addition of power strips, monitor arms, and component shelves. The ergonomic height is optimized to reduce musculoskeletal strain, ensuring long-term health and efficiency for your workforce.
Application Scenarios: Where the HN-ESD02 Excels
The versatility of the HN-ESD02 ESD Workstation makes it an indispensable asset across several niche industries:
SMT & PCB Assembly: Provides a safe, grounded environment for the manual insertion of components and final board testing.
Mobile & Laptop Repair: The perfect "Tech Bench" for(after-sales) service centers where component-level repair is performed.
Aerospace & Defense: Meets stringent requirements for handling sensitive flight-control hardware.
Medical Device Manufacturing: Ensures that life-saving electronic equipment is assembled in a contamination-free, static-controlled environment.
R&D Laboratories: A stable platform for prototyping and hardware development where precision is non-negotiable.
Why Invest in the HN-ESD02 Workstation?
Choosing the HN-ESD02 is a strategic move to lower your Defect Rate (DPU). By eliminating static-related failures at the source, you reduce waste and increase customer satisfaction. Our workstations are finished with an eco-friendly, anti-static powder coating that provides a professional aesthetic to your facility, instilling confidence in visiting clients and auditors.
Furthermore, the Knock-Down (KD) structure allows for efficient global shipping, significantly reducing logistics costs without compromising the stability of the bench once assembled.
Frequently Asked Questions (FAQs)
Q1: How is the anti-static mat grounded in the HN-ESD02?A: The bench includes a dedicated grounding wire and a wrist strap junction box. The ESD mat is connected directly to the steel frame and then to the building's earth ground, ensuring a continuous path for static dissipation.
Q2: Can the LED light be adjusted for brightness?A: Our standard HN-ESD02 comes with a high-output, fixed-intensity LED. However, we offer an optional dimmable LED upgrade for tasks requiring variable light levels.
Q3: Is the green ESD mat resistant to soldering iron heat?A: Yes. The surface is designed to withstand high temperatures. While it is not fireproof, it will not melt or emit toxic fumes when accidentally touched by a soldering iron during normal repair work.
Q4: Do you support customization for large assembly lines?A: Absolutely. As a leading manufacturer, we can customize dimensions, colors (RAL system), and accessory configurations for bulk orders to match your specific production workflow.
Q5: What certifications does this workbench carry?A: The HN-ESD02 is manufactured according to ANSI/ESD S20.20 and IEC 61340-5-1 standards, ensuring it meets the most rigorous international ESD requirements.
Order the HN-ESD02 Today
Equip your team with the best-in-class HN-ESD02 ESD Workbench. Protect your components, organize your tools, and brighten your workspace.
Contact our sales team today for a bulk quotation and technical consultation.
