1.Product overview

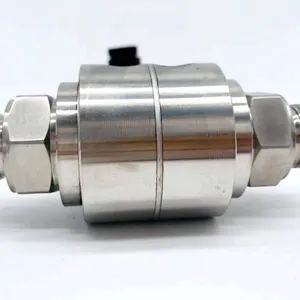

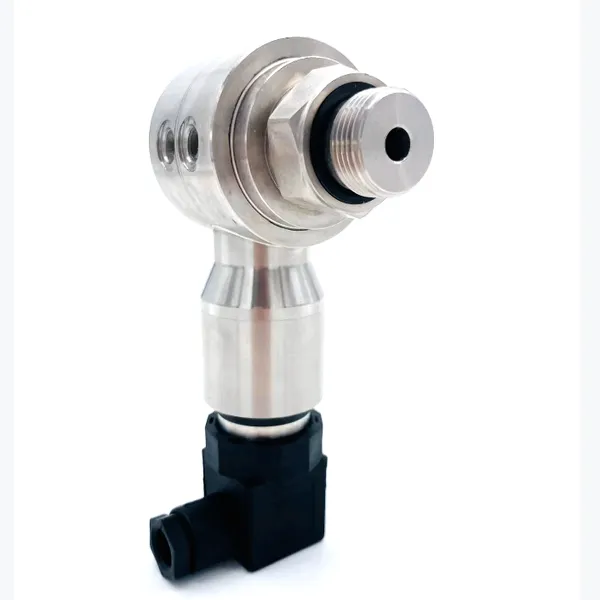

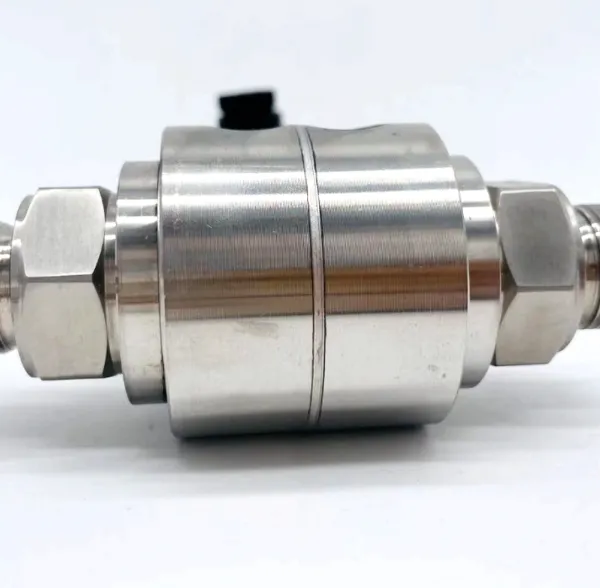

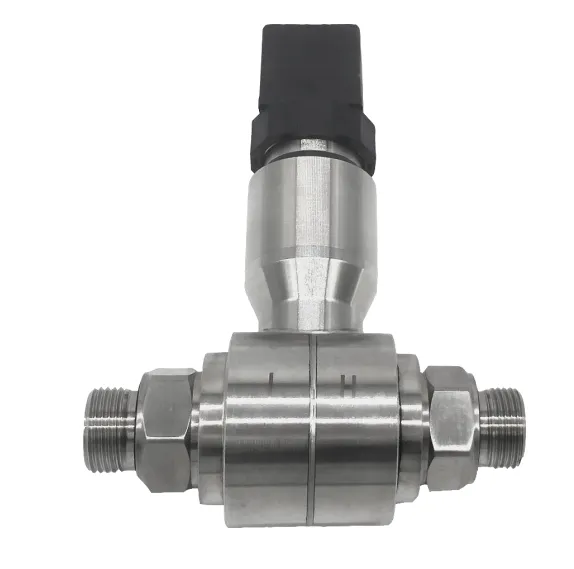

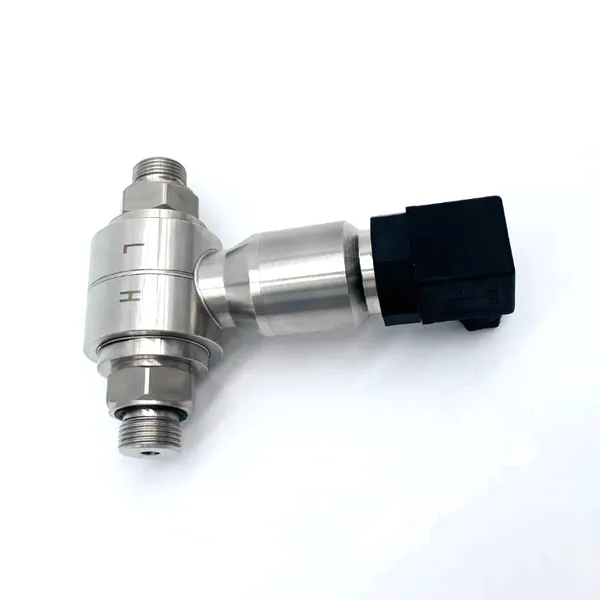

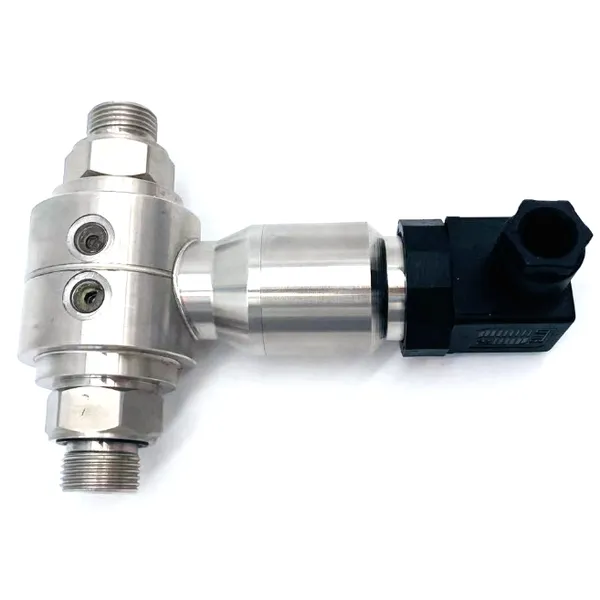

The KY5800D Integrated Differential Pressure Transmitter employs an imported diffused silicon differential pressure oil - filled core (silicon piezoresistive differential pressure core) as the central pressure - sensing element. It is equipped with 316L stainless steel isolation diaphragms, an all - stainless steel housing, and integrated stainless steel joints, providing excellent corrosion resistance. The device features built - in dedicated integrated circuits and offers comprehensive temperature compensation, characterized by high precision, strong anti - interference capability, and long - term operational stability and reliability. It converts sensor signals into standard voltage, current, or RS485 digital signal outputs. Electrical connections are available in multiple options, including Hirschmann connectors, aviation plugs, and direct wiring. The pressure interface adopts a threaded connection design, allowing direct installation on measurement pipelines or connection via pressure conduits for convenient differential pressure measurement. The product is widely used in process control, aerospace, automotive manufacturing, medical equipment, and HVAC (Heating, Ventilation, and Air Conditioning) systems for differential pressure, liquid level, and flow measurement and control.
2.Technical specification
| Measuring Range: | 0-1kPa-100kPa-6MPa (customizable) |
| Measuring medium : | air ,liquid ,engine oil (non-strongly corrosive ) |
| Over pressure; | 200% |
| Accuracy: | 0.2%F.S |
| Ambinent temperature | -40-85℃ |
| Protection Rating: | IP65 |
| Power supply: | 12-36VDC |
| Output signal: | 4~20mA DC (2-wire) |
| Process connection: | M20*1.5 (customizable) |
| Respond time |
1ms |
| Housing Material: | 304 Stainless Steel |
| Diaphragm Materi | 316L Stainless Steel |
3.Application Industries
Differential pressure monitoring in industrial process control systems
Pressure and flow measurement in aerospace equipment
Pressure control in automotive manufacturing and testing
Pressure monitoring in medical devices such as ventilators and anesthesia machines
Air pressure and flow measurement in HVAC systems
Liquid level detection and flow measurement applications
4.Contact us for selection support
