1.Product Overview

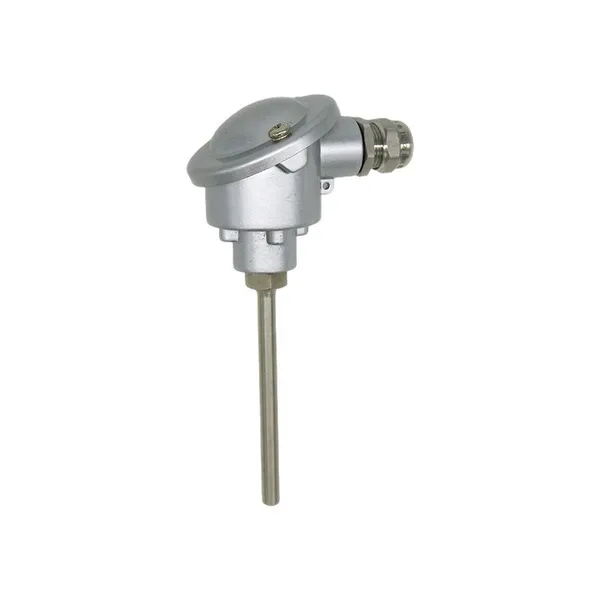

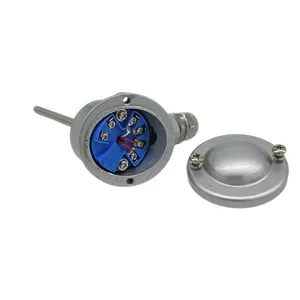

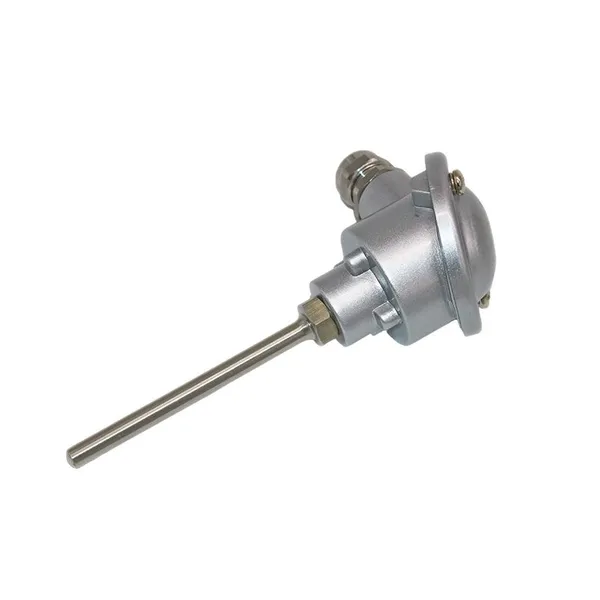

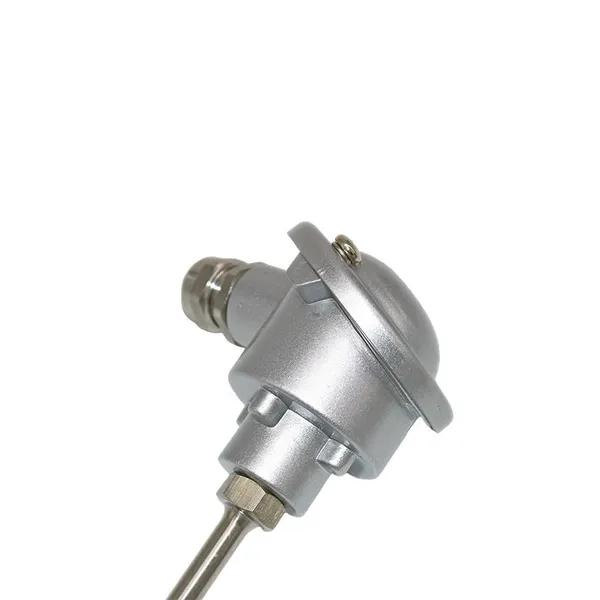

The KY-100RTD thermal resistor is a precision temperature sensor utilizing a platinum resistance element (Pt100). It features high accuracy, excellent stability, and a wide measurement range (-200°C to 650°C). With a rugged design and fast response time, this product is widely applicable for temperature detection in industrial process control, laboratory measurement, equipment monitoring, and automation systems. It is especially suited for scenarios requiring long-term stability and high reliability.
2.Technical Specifications
| Model | KY-100RTD |
| Sensor Type | Platinum RTD Pt100 |
| Measurement Range | -200°C ~ +650°C |
| Accuracy Class | Class A (±0.15°C @ 0°C) / Class B (±0.3°C @ 0°C) |
| Wiring Configuration | 2-wire / 3-wire / 4-wire (optional) |
| Probe Material | Stainless Steel 316L (standard), other materials optional |

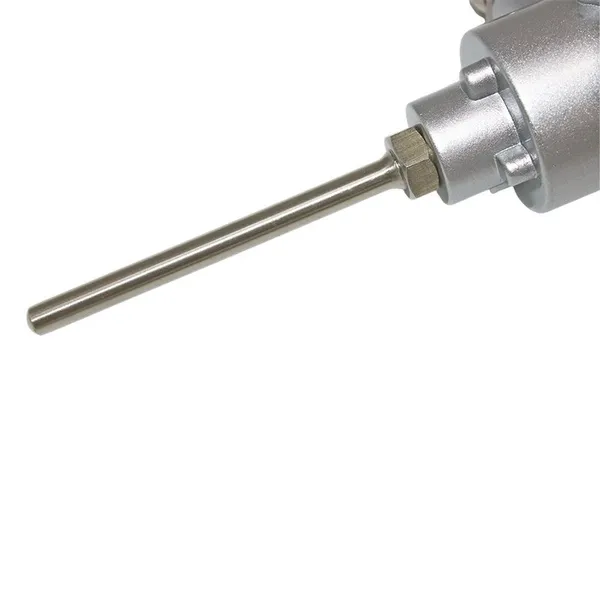

| Protection Tube Diameter | φ6mm (standard), other sizes customizable |
| Insulation Resistance | ≥100 MΩ (@ 500V DC) |
| Long-term Stability | ≤0.1°C/year |
| Operating Pressure | ≤10 MPa (depends on construction) |
| Protection Rating | IP65 |
| Mounting Style | Threaded mount (M8×1, M10×1, G1/2", etc.), flange mount, or non-fixed |
| Output Signal | Resistance signal (directly compatible with PLC/DCS/temperature controllers) |
| Ambient Temperature | -40°C ~ +85°C (electronics head section) |
3.Typical Application Fields
Industrial Process Control: Temperature monitoring in chemical reactors, petroleum refining equipment, power plant boilers, heat treatment furnaces, etc.
Laboratory & Scientific Instruments: Constant temperature baths, ovens, environmental test chambers, material testing equipment.
Equipment Condition Monitoring: Temperature detection for motor bearings, compressors, generators, transformer windings.
Food & Pharmaceutical Industry: Sterilization equipment, fermentation tanks, cold chain transportation temperature logging.
HVAC & Energy Management: Air conditioning systems, solar thermal utilization, ground source heat pump temperature collection.
-
Automotive & Aerospace: Engine testing, fuel/lubricant temperature monitoring, environmental simulation chambers.
For more detailed selection information or technical consultation, please contact us.
