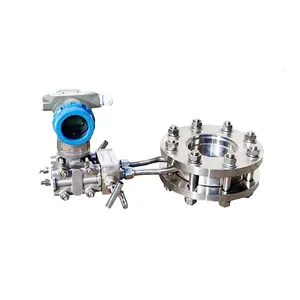

Help CenterKYUE OEM Standard Orifice Plate Flow Meter – The Classic DP Solution Flowmeter 0.1-500T/h
Related Products
-
Kyue Vortex Flowmeter DN15 for Steam Liquid Compressed Air Nitrogen HART RS485US$ 200MOQ: 1 Piece -
Kyue KTF200 Turbine Flowmeter 24VDC RS485 Hart Pulse Explosion Proof Turbine MeterNegotiableMOQ: 1 Piece
-
Kyue KTF200 Industrial Automation Liquid Turbine Flowmeter 4-20mA Pulse RS485 Diesel Fuel Hot Water Flow Meter Flow SensorNegotiableMOQ: 1 Piece
-
Kyue KTF200 Industrial Mechanical Turbine Flow Meter 4-20mA Pulse RS485 Diesel Fuel Hot Water Gases Flow MeterNegotiableMOQ: 1 Piece
-
DN15-DN1000 OEM Digital Display Stainless Steel Vortex Flow Meter Sensor High Accuracy Liquid Gas Effective Flow MeasurementUS$ 200MOQ: 1 Piece
1.Product Overview
The KOF200 orifice plate flow meter is a differential pressure (DP) type flow measurement instrument, belonging to the category of flow restriction devices. It is a sensor that does not have a direct reading function (no scale) and determines flow indirectly by measuring differential pressure.
A matching differential pressure transmitter (pneumatic, electronic, or smart) converts this differential pressure signal into a standard pneumatic signal (20-100 kPa) or electrical signal (4-20 mA/digital signal). This signal is then transmitted to a secondary instrument (flow computer, DCS, PLC, etc.) for square root extraction, temperature/pressure compensation, and totalization, ultimately achieving indication, recording, integration, and automatic control of the fluid flow rate.
2.Technical specifications
| Item | Specifications and Description |
|---|---|
| Measurement Principle | Differential Pressure, based on standard orifice principle (ISO 5167, GB/T 2624) |
| Suitable Media | Liquids, gases, steam (single-phase, homogeneous, continuous flow) |
| Nominal Diameter | DN25 ~ DN1200 |
| Nominal Pressure | ≤10MPa |
| Media Temperature | -50-550℃ |
| Orifice Plate Material | 304/316 Stainless Steel (standard), other alloys (e.g., Hastelloy, Monel) |
| Flange Material | Carbon Steel, 304/316 Stainless Steel, etc. |
| Accuracy Class | ±0.5% ~ ±1.0% (depends on transmitter, secondary instrument, and installation conditions) |
| Orifice plate type | Standard ,Restriction, Segmental , Integral , Annular , Eccentric |
| Matching Instruments | DP Transmitter, Pressure Transmitter, Temperature Sensor, Flow Computer |
| Output signal | 4-20mA |
| Communication protocal | Hart ,RS485 |
| Range | 0.1-500T/h |
3.Applications
Power Industry: Flow measurement of boiler feedwater, superheated steam, saturated steam.
Petrochemical Industry: Measurement and control of crude oil, refined products, natural gas, process gases, various chemical feedstocks.
Metallurgical Industry: Flow measurement of blast furnace gas, coke oven gas, compressed air, oxygen, water.
Heating Industry: Measurement of hot water, steam for trade settlement and energy consumption accounting.
General Industry: Measurement of various plant utilities (compressed air, nitrogen, cooling water).
This flowmeter provides precise measurement of clean water, wastewater, acid/alkali/salt solutions, sludge, ore slurry, pulp, and food-grade liquids (e.g., beverages, sauces), delivering reliable data support for process control and operational management across industries.
