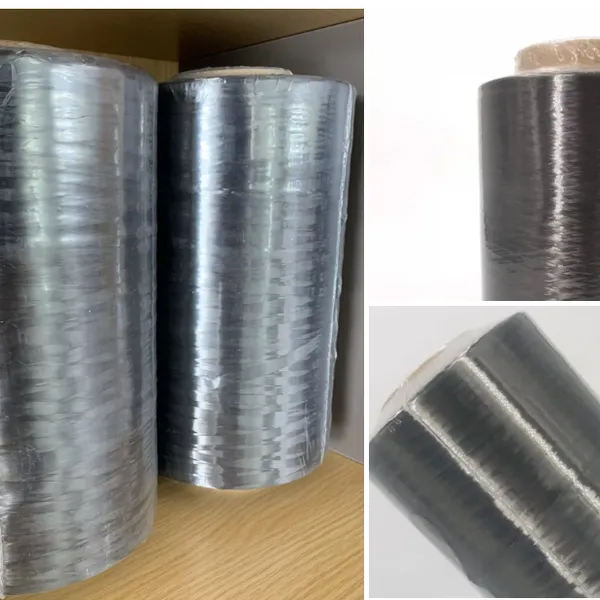

Help CenterConductive Carbon Fiber Yarn With High Tensile Strength for Advanced Composite Materials
Related Products
-
High-Performance Carbon Fiber Conductive Filament Yarn for Aerospace Composite ReinforcementNegotiableMOQ: 100 Kilograms -
Electrically Conductive Carbon Fiber Yarn for EMI Shielding and Smart Textile ApplicationsNegotiableMOQ: 100 Kilograms
-
Versatile Carbon Fiber Yarn Solution for Construction Materials and Defense ApplicationsNegotiableMOQ: 500 Kilograms
-
Industrial-Grade Carbon Fiber Yarn Offering Enhanced Electrical Conductivity PropertiesNegotiableMOQ: 500 Kilograms
-
Premium Carbon Fiber Yarn With Excellent Tensile Strength for Industrial Textile ManufacturingNegotiableMOQ: 500 Kilograms
As a specialized manufacturer based in Xuzhou, Jiangsu, Xuzhou Guozi Intelligent Technology Co., Ltd. delivers cutting-edge conductive carbon fiber yarn engineered for demanding composite applications. Our high-tensile carbon fiber yarn combines exceptional mechanical properties with electrical conductivity, offering material engineers innovative solutions for next-generation lightweight structures.
Core Technical Advantages:
Superior Strength-to-Weight Ratio: Enables creation of lightweight yet structurally robust components
Integrated Conductivity: Provides inherent electrical properties without additional metal components
Thermal Stability: Maintains performance across extreme temperature environments
Detailed Specifications:
| Parameter | Specification |
|---|---|
| Fiber Type | Continuous PAN-based carbon fiber |
| Tensile Modulus | 230-240 GPa (customizable) |
| Electrical Resistivity | 1.5×10-3 Ω·cm |
| Filament Count | 3K, 6K, 12K configurations |
| Density | 1.78 g/cm³ |
Application-Specific Benefits:
Aerospace Components: Lightning strike protection integrated into structural elements
Automotive Structures: EMI shielding for electric vehicle battery enclosures
Industrial Robotics: Static dissipation in moving composite parts
Sporting Goods: Weight reduction with enhanced durability
Processing Advantages:
Compatible with resin transfer molding (RTM) and prepreg systems
Uniform sizing for improved matrix adhesion
Controlled fiber spread for optimized laminate quality
Backed by Xuzhou Guozi's technical expertise in advanced material manufacturing, this conductive carbon fiber yarn undergoes rigorous quality control throughout production. Our Jiangsu-based facility utilizes precision winding technology to ensure consistent yarn geometry and mechanical properties across all production batches.
FAQ Section
Q: What is the temperature resistance of this conductive yarn?
A: The yarn maintains structural integrity at continuous operating temperatures up to 350°C in inert environments.
Q: Can this fiber be combined with non-conductive reinforcement?
A: Yes, hybrid layups combining conductive and standard carbon fibers are possible for zoned functionality.
Q: Are custom sizing formulations available?
A: Our technical team can develop compatible sizing chemistry for specific resin systems upon request.
Q: What packaging options are offered?
A: Standard spool sizes range from 1kg to 5kg, with protective vacuum-sealing available for moisture-sensitive applications.

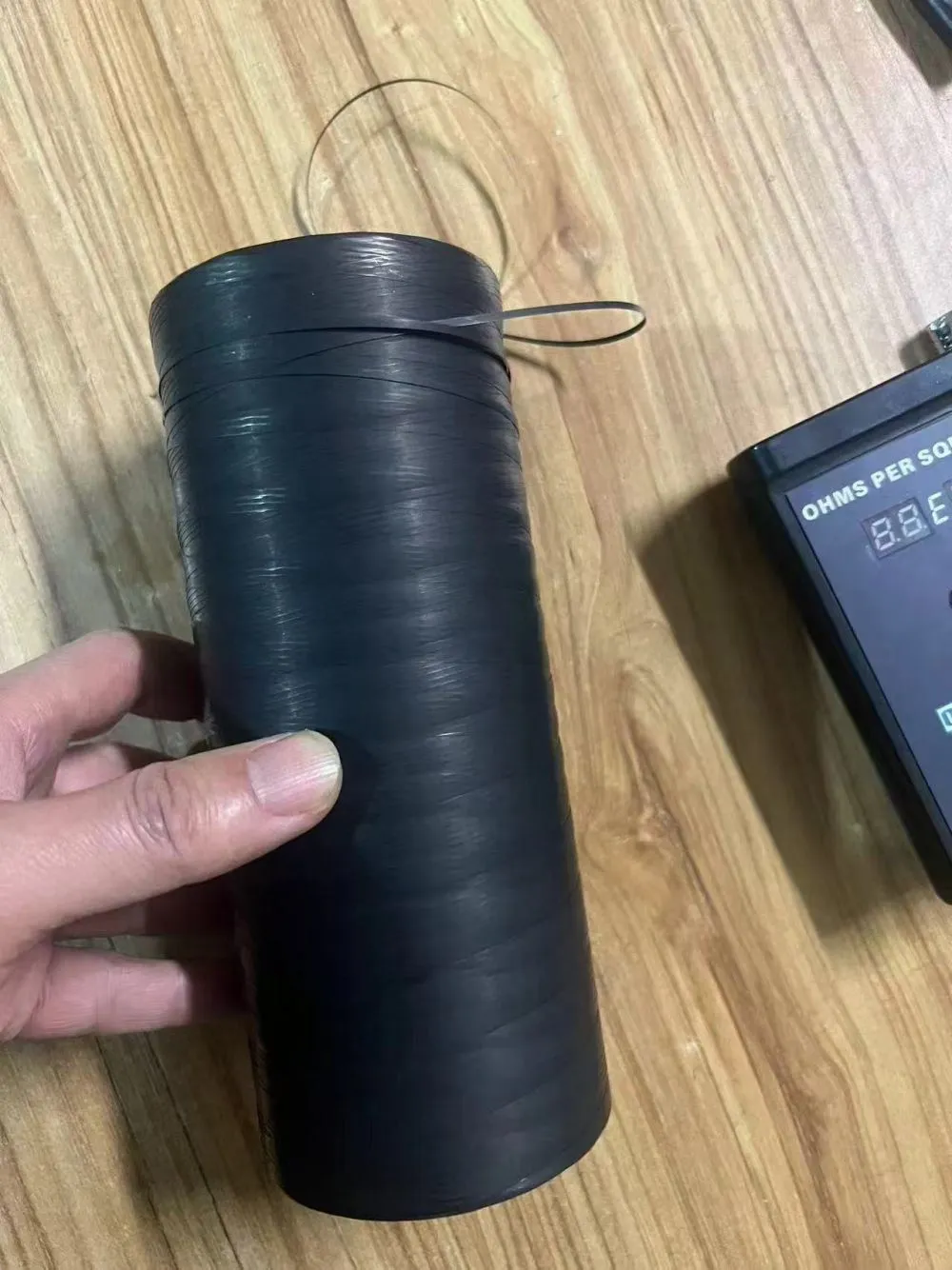

Q: How is electrical conductivity measured?
A: We provide standardized four-point probe testing data with each production batch.
Q: What is the minimum order quantity?
A: MOQ starts at 10kg for standard configurations, with sample quantities available for testing.
For industrial clients seeking to enhance composite functionality, Xuzhou Guozi Intelligent Technology provides material solutions backed by extensive manufacturing experience. Contact our technical team to discuss how our conductive carbon fiber yarn can optimize your next-generation composite designs through integrated structural and electrical performance.
