Introduction: Mitigating Advanced Hazards in Research Environments
Research centers and advanced laboratories routinely handle volatile, reactive, and flammable chemicals that are essential for innovation but pose significant explosion and fire risks if not managed correctly. Standard storage is insufficient for these high-hazard materials. The HN-EX60G Explosion-Proof Safety Cabinet is engineered specifically for such demanding settings. Its design incorporates critical protective features, including dual flame arrester ventilation ports and a 5cm secondary containment sump, to provide a robust line of defense. This cabinet aims to safely isolate these materials, manage internal vapors, and incorporate design elements that help mitigate the consequences of an internal ignition, thereby protecting both research assets and personnel.
Product Definition & Safety Philosophy
The HN-EX60G is a 60-gallon hazardous material storage cabinet with a focus on mitigating explosion risks, commonly referred to as an explosion-proof or fireproof cabinet. Its core safety philosophy is based on containment, pressure management, and vapor control. It provides a dedicated, reinforced enclosure for storing chemicals that can generate explosive atmospheres or are highly reactive. The cabinet is not intended to prevent an internal chemical reaction but is designed to safely contain and vent the energy and products of such an event in a controlled manner, minimizing external damage.
Material & Construction: Engineered for Resilience
The construction quality directly influences the cabinet's ability to perform under duress.
Reinforced Structure: Built with heavy-gauge cold-rolled steel (typically at the higher end of the 1.2-2.0mm spectrum), offering superior strength to withstand pressure stresses.

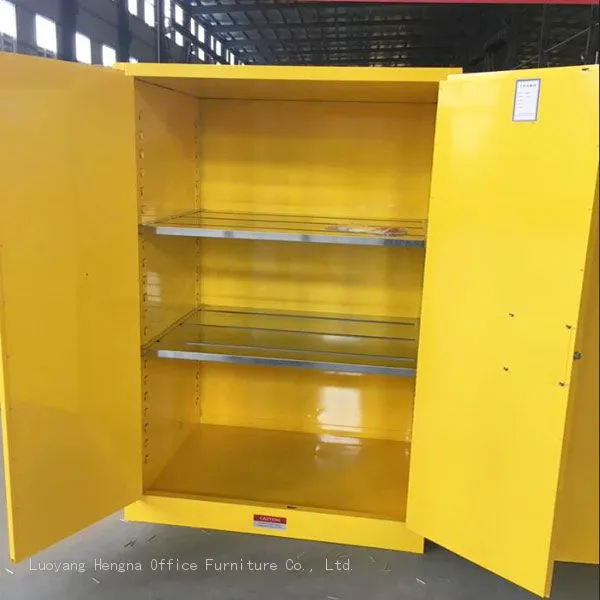

Protective Coatings: Features a high-temperature powder-coated exterior for corrosion resistance. The interior utilizes adjustable galvanized steel shelves for flexibility and durability against chemical exposure.
Fire and Blast Mitigating Design: Employs a double-walled construction with a 38mm air gap. This layer provides essential thermal insulation (fire resistance ≥90 minutes) and adds a degree of mechanical buffering.
5cm Secondary Containment Sump: An integral 50mm deep safety sump forms the bottom of the storage compartment. This sump is designed to contain leaks from multiple containers, with a holding capacity meeting or exceeding 25% of the cabinet's total volume, preventing spilled liquids from escaping into the environment.

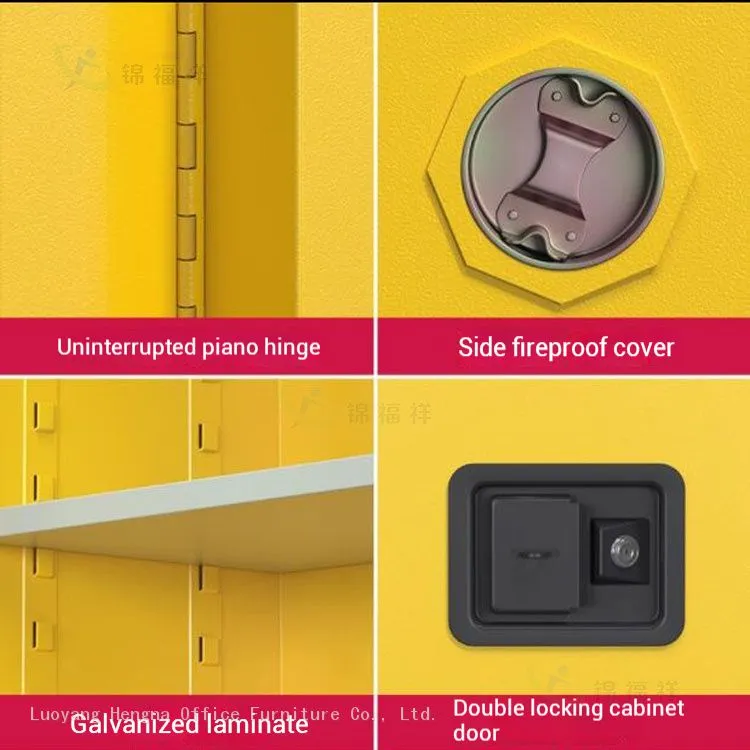

Robust Hardware: Includes heavy-duty hinges and a strong locking mechanism to ensure door integrity.
Key Safety & Functional Features: Addressing Explosion Risks
The HN-EX60G's "explosion-proof" designation stems from a combination of specific safety features.
Dual Flame Arrester Vents (A Core Highlight): This is a critical feature for venting cabinets storing flammable vapors.
Function: These vents are designed to be fitted with specialized flame arrestor inserts. The arrestor contains a matrix of small passages.
Safety Mechanism: In the event flames from an internal ignition attempt to exit through the vent, the flame arrestor cools the gases below their ignition temperature as they pass through the narrow channels, effectively extinguishing the flame before it can reach the outside atmosphere.
"Dual" Configuration: Having two vents (typically one designated for intake and one for exhaust) facilitates safer connection to an optional forced ventilation system, ensuring proper airflow while maintaining the flame arrestor protection on both inlet and outlet.
Pressure Relief Mechanism: The cabinet design includes engineered weak points or relief panels. If pressure from a rapid deflagration builds up inside, these panels are designed to open in a controlled manner, venting pressure and combustion gases upward and away, preventing a catastrophic rupture of the main cabinet body.
5cm Secondary Containment: The deep sump is vital for containing leaks, which is a primary step in preventing the formation of hazardous vapor clouds or pools outside the cabinet.
Thermal Insulation: The double-wall construction delays heat transfer, protecting contents from an external fire and providing time for emergency response.

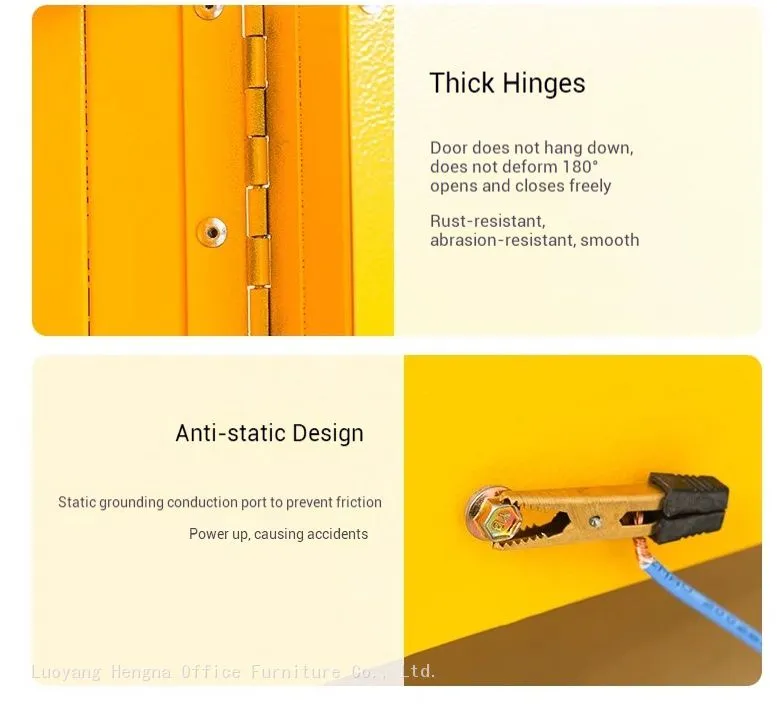

Static Grounding Connection: A designated bonding point allows the cabinet to be grounded, dissipating static electricity that could ignite vapors.
Product Classification & Specifications
This cabinet is suited for a mix of flammable and reactive chemicals often found in research settings.
| Color Category | Primary Storage Use | Typical Research Center Examples |
|---|---|---|
| Yellow | Flammable/Reactive Chemicals, Oxidizers | Solvents (ether, hexanes), certain metal hydrides, peroxides (in limited quantities), reaction intermediates, paint & coating materials for labs. |
The HN-EX60G is commonly configured as a YELLOW cabinet for this broad hazard class.
| Model | Capacity | Approx. External Dimensions (H×W×D) | Door Type | Key Safety Features |
|---|---|---|---|---|
| HN-EX60G | 60 Gallons | 1650mm × 860mm × 860mm | Double Door | Dual Flame Arrester Vents, 5cm Containment Sump, Pressure Relief Design |
Ideal Applications & Compliance Context
The HN-EX60G is designed for demanding environments such as:
Chemical & Materials Research Laboratories
Pharmaceutical R&D Labs
University Departmental Core Research Facilities
Industrial R&D Centers
Labs handling pilot-scale chemical quantities
The cabinet’s design incorporates safety principles like vapor control (via venting), explosion pressure relief, and secondary containment, which are recognized in guidelines for safe chemical storage. It assists facilities in managing risks associated with volatile materials. Ultimate compliance with specific national or institutional explosion protection standards and regulations must be determined by the user based on their specific chemicals and local requirements.
A Proactive Engineering Solution for High-Hazard Storage
The HN-EX60G Explosion-Proof Cabinet represents a specialized engineering approach to chemical storage safety in research centers. By integrating dual flame arrester vents to manage vapors and prevent flame propagation, along with a 5cm secondary containment sump and pressure relief design, it addresses the complex risks associated with volatile and reactive chemicals. This cabinet serves as a vital component in a research facility’s overall safety strategy, enabling scientific work to proceed with a reduced level of risk and providing researchers with a safer, more secure storage environment for their essential but hazardous materials.
