Cold Room Shelving Units for Frozen Food Warehouses — Every Level Adjusts With Gloves On
Short answer first: powder-coated cold-rolled steel shelving belongs inside a frozen store, not at the door. Keep it in stable cold, keep loads inside the rated tiers, and it will outlast the building's next refrigeration upgrade. Put it where warm air meets cold steel every shift, and no coating on earth will save it. You want stainless there. That decision takes thirty seconds. The rest of this page is about making the first option work.
1. Cold room racks do not fail all at once. They fail in four places.
The decks sag. Not dramatically, just enough that cartons stop sitting flat and the bottom layer crushes under the one above.
The beam clips stop holding. A cart clips a beam on a tight turn, the clip lets go, and the shelf ends up resting on the freight instead of the frame.
The upright feet rot out. This is the one that kills racks, and it almost never starts in the middle of the room.
Half the levels are the wrong height. Someone bought on price, spacing did not match real carton sizes, and now two of four levels sit empty while boxes cover the floor.
None of these are coating problems. All four are spec problems, and all four get decided before anyone signs the purchase order.
2. Why it happens: the temperature line
Every cold store has a line in it. One side is cold and dry and steel behaves. The other side has warm humid air meeting cold steel all day, and that is where corrosion starts.
| Zone | Temperature | Moisture | What it does to a powder-coated rack | What to use |
|---|---|---|---|---|
| Deep frozen store | -18C to -25C | Low | Almost nothing; corrosion nearly stops in dry cold | Powder-coated cold-rolled steel |
| Chiller / cold room | 2C to 8C | Moderate | Fine, if the room drains and air moves | Powder-coated cold-rolled steel |
| Doorway and dock ramp | Fluctuates | Condensation on every cold surface | Rust starts at the feet and beam ends | Stainless, or clear the apron |
| Thaw room and wash-down bay | Above 0C | Standing water, cleaning chemicals | The coating will not survive it | Stainless |
| Open dock staging | Ambient | Rain, road salt | Rust, and rust fast | Stainless or galvanised |
If your racks live in the first two rows, powder-coated steel is the right buy and stainless is money you do not need to spend.
3. Five things a cold store rack has to have
Tool-free level adjustment. Frozen stores re-shelve constantly. If changing a level means finding a wrench, it will not get done. It has to be possible with gloves on, in under a minute.

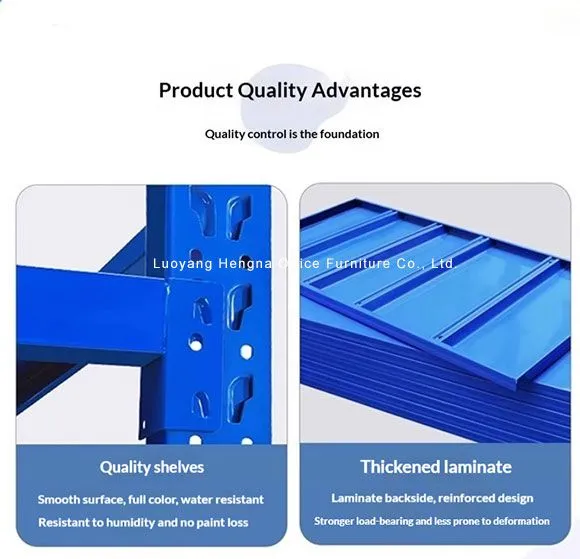

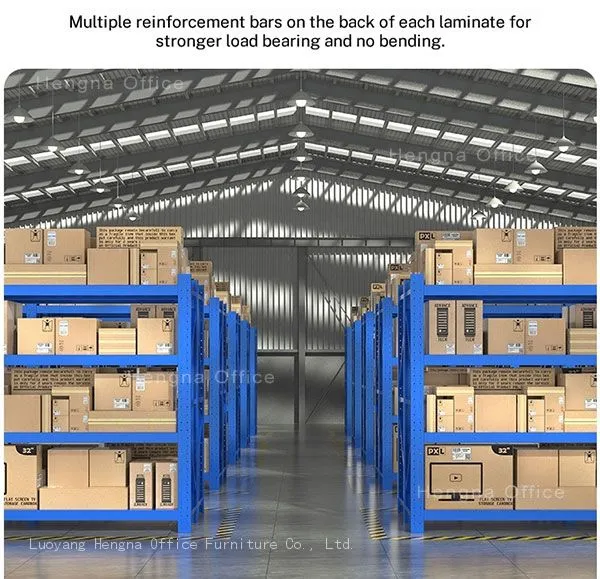

A deck that stays flat. Once a deck bows, cartons sit wrong and the level above loses clearance. Look for ribs under the panel, not a flat sheet with a lip folded onto it.
Uprights that are welded, not spotted. A tack weld holds an upright square the day it leaves the line. Continuous welding along the braces is what keeps it square after two years of cart bumps.
A coating that survives freeze-thaw. Powder coating handles cold cycles well. What it does not handle is standing water at the base, which is why the base design matters more than the coating spec.
Shared uprights. A cold store is one long run, not a wall of separate racks. Starter plus add-on units use one upright per bay instead of two, and where every cubic metre carries a refrigeration cost, that buys back floor space.
4. What the 2026 Hengna cold store line looks like
| Item | Detail |
|---|---|
| Material | Cold-rolled steel, electrostatic powder coat |
| Assembly | Boltless butterfly clip, no tools |
| Load tiers | 300kg and 500kg per level, two frame builds |
| Level adjustment | 50mm pitch, tool-free |
| Deck | Reinforced steel panel, ribs beneath |
| Uprights | Braced and continuously welded |
| Extension | Starter unit plus add-on units sharing uprights |
| Widths | 1000 / 1200 / 1500 / 2000mm |
| Depths | 400 / 500 / 600mm |
| Heights | 1800 / 2000 / 2200 / 2500mm |
| Levels | 3, 4 or 5 as standard |
| Colours | Blue, white, grey, custom |
| Certification | CE available |
| Warranty | 1 year |
One figure worth having before you plan: a 40HQ holds roughly 200 to 300 units depending on size, because everything ships knocked down.
5. Where powder-coated steel stops working
We would rather lose a quote than have a customer find this out in year two.
Do not buy powder-coated steel for a wash-down bay, a thaw room, anything with standing water, or any rack within splash distance of a drain. Those places need stainless, and we will say so.
Watch the first two metres inside the door. If the dock opens all day and the floor stays wet, move the racks back, add matting, or specify stainless for that first bay only. Mixed runs are normal. Nobody will thank you for uniformity if the first bay rusts.
You can wipe a powder-coated rack with a damp cloth. You cannot hose it.
6. A routine that keeps a cold room rack alive
Twenty minutes a month beats a replacement order.
Daily: wipe spills at the base instead of leaving them. Standing water at a foot is the fastest route to a rusted-out upright.
Weekly: push every beam up with a gloved hand. A clip that moves has worked loose.
Monthly: check the feet and the lowest stretch of every upright. Rust shows here first, and here you can still stop it.
Quarterly: check level spacing against what is actually stored. Empty levels plus freight on the floor means your spacing is wrong, not your capacity.
Annually: confirm anchors and look for uprights pushed out of plumb by impacts.
7. Four things buyers get wrong
Buying a cold room rack like a dry warehouse rack. Same catalogue page, different failure mode. The deciding document is the room's moisture map, not the product listing.
Comparing price per unit only. Same price, different hole pitch and different deck means it is not the same product. Put both specs side by side.
Forgetting the door zone. Almost every rusted rack we have seen in a cold store started within a few metres of the door.
Locking level heights in at order. If you cannot change a level with gloves on, you will live with the wrong spacing for years.
8. FAQ
MOQ? 50 units for standard configurations. Custom sizes and colours start higher, and we confirm the figure with your quote.
Trade terms? EXW, FOB and CIF. Most cold store projects ship FOB from Qingdao, Shanghai or Ningbo.
Warranty? One year.
After-sales? Replacement uprights, beams, clips and decks ship as spares, so a damaged bay does not mean replacing a whole run. Order spare clips with the original batch.
OEM and ODM? Yes. Silk-screen logo on uprights and decks, custom packaging, custom manuals, plus custom sizes, colours and level counts.
Lead time? 15 to 20 working days standard, 25 to 35 for custom work.
Packaging? Moisture film, corner protectors, uprights, beams and decks packed separately, hardware bagged on its own, bundle fixed to a pallet. Cold stores and long sea routes are exactly why we pack this way.
Quote speed? Within 24 hours.
Who are you? Luoyang Hengna Office Furniture Co., Ltd. Nine years in steel furniture, working directly with the production facilities that build our range. Our own trademark.
