The HENGNA Industrial Gas Bottle Safety Locker is built specifically for these demanding conditions. It doesn’t rely on complex electronics—though an alarm option is available. Instead, it focuses on what matters most in oilfield environments: physical strength, secure restraint, and easy handling. With heavy‑duty retaining chains that hold cylinders firmly in place and a loading pedal that lets one person safely maneuver heavy bottles, this locker is the choice of Texas operators who know that reliability comes from rugged simplicity.
This guide explains how the HENGNA industrial locker meets the unique challenges of oil and gas sites, from the desolate plains of West Texas to the humid coastal refineries.
Key Specifications
| Parameter | Value |
|---|---|
| Model | HNG‑OIL‑DBL (double bottle) / HNG‑OIL‑SGL (single bottle) |
| External Dimensions | H1900 × W500–1200 × D450 mm (depending on model) |
| Material | Heavy‑duty cold‑rolled steel |
| Surface Coating | Phosphorus‑free epoxy powder coat (yellow/gray) – corrosion resistant |
| Door | Full‑length with reinforced embedded handle |
| Lock | Heavy‑duty all‑steel lock, rust‑resistant |
| Window | Explosion‑proof tempered glass (optional, can be omitted for all‑steel door) |
| Cylinder Restraint | Two heavy‑duty retaining chains per cylinder, welded attachment points |
| Loading Pedal | Fold‑down ramp for easy cylinder rolling (removable plate design) |
| Optional Alarm | Combustible gas sensor with audible/visual alarm (field installable) |
| Electrical | 110V AC (if alarm/fan option included) |
| Weight | 100–150 kg (heavier gauge steel) |
Built for the Oilfield: Key Physical Features
1. Heavy‑Gauge Steel Construction
Oilfield equipment takes abuse. Trucks back into things. Tools get dropped. Wind blows sand and grit. The HENGNA industrial locker uses 1.5mm cold‑rolled steel—thicker than our standard cabinets—to withstand impacts and resist bending. The frame is fully welded, not just bolted, for maximum rigidity.

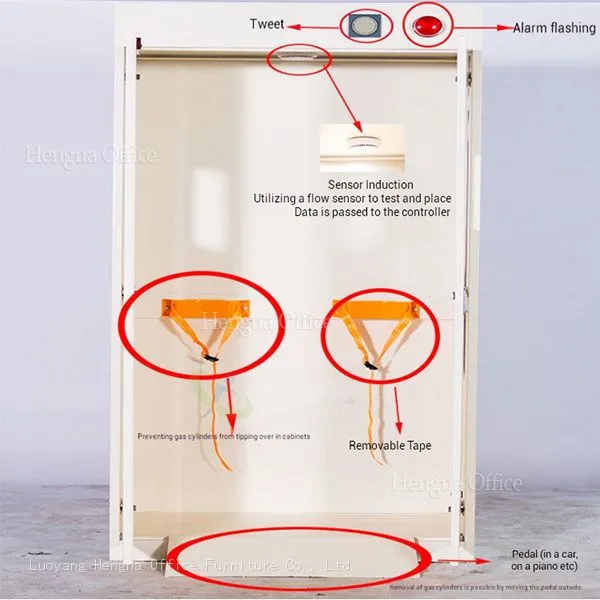

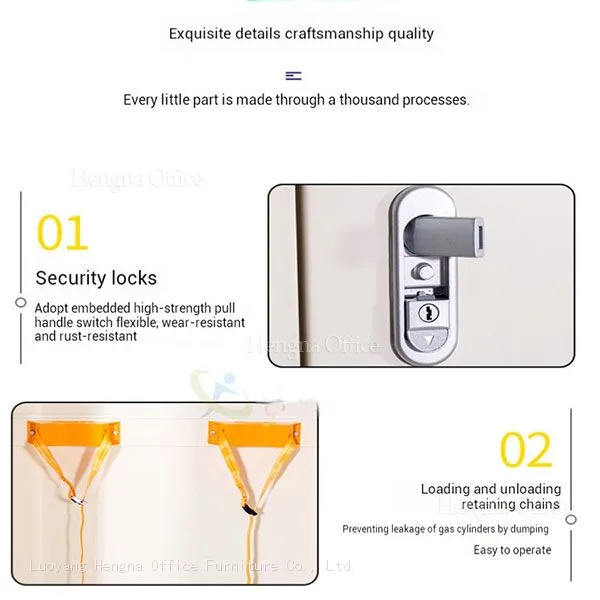

2. Dual Retaining Chains per Cylinder
Standard cabinets often use a single chain or strap. In oilfield conditions, that may not be enough. Our locker includes two heavy‑duty chains per cylinder, each attached to welded anchor points inside the cabinet. The chains are coated to resist rust and have easy‑grip hooks that fasten securely without tools. Even if one chain is accidentally left loose, the second provides backup restraint.
3. Loading Pedal (Fold‑Down Ramp)
Moving a full gas cylinder—which can weigh over 100 pounds—is a common cause of back injuries. The integrated loading pedal solves this: simply flip it down, and you have a smooth ramp that lets you roll the cylinder directly into the cabinet. Once inside, the removable bottom plate (the “pedal” itself) slides back into place to support the cylinder. This design allows one person to safely load or unload without lifting.
| Loading Method | Risk | HENGNA Solution |
|---|---|---|
| Manual lifting | Back strain, dropped cylinder | Roll cylinder up ramp, no lifting |
| Two‑person carry | Coordination issues, pinch points | Single operator, hands‑free positioning |
| Using forklift | Over‑travel, damage to cylinder | Simple manual operation, precise placement |
4. Anti‑Tip Stability
The cabinet’s wide footprint and low center of gravity resist tipping. For extra security in windy locations or on uneven ground, we offer optional floor anchoring brackets that bolt to concrete or steel decking.
5. All‑Steel Door Option
While our standard cabinet includes an explosion‑proof glass window for visual inspection, oilfield customers often prefer a solid steel door for maximum durability. Both options are available. The solid door eliminates any risk of glass breakage, and you can simply open the door briefly to check cylinder status.
Why Texas Oil & Gas Sites Choose This Locker
Remote Locations Demand Reliability
Oilfield sites are often far from town, with limited maintenance staff. Equipment must work without constant attention. The HENGNA industrial locker has no electronics to fail (unless you add the alarm option). The chains and pedal are mechanical, proven, and simple.
Harsh Environments

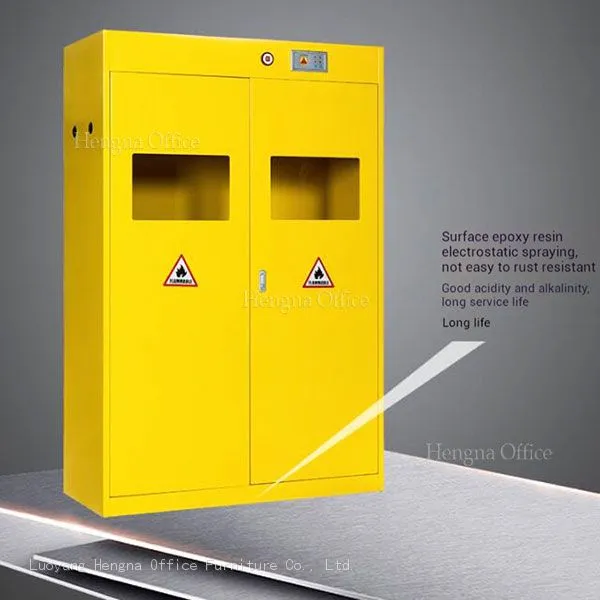

Heat: Texas summers can exceed 100°F; the epoxy coating withstands high temperatures without peeling.
Dust and sand: Sealed seams and gasketed doors keep out particulates.
Rain and humidity: Rust‑resistant coating and stainless steel hardware prevent corrosion.

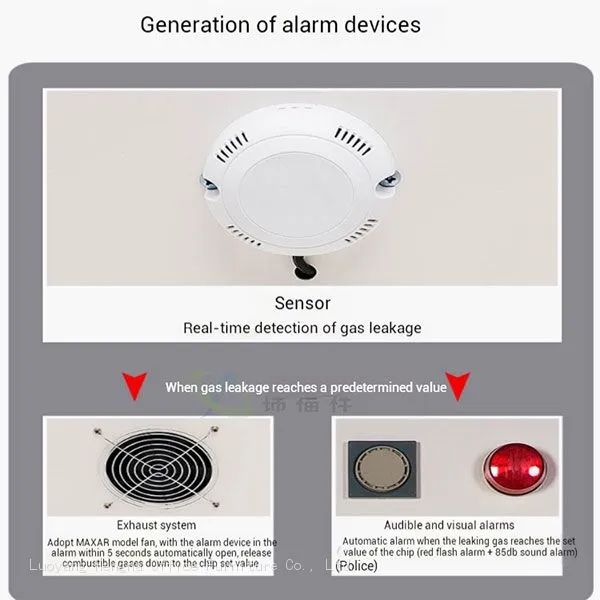

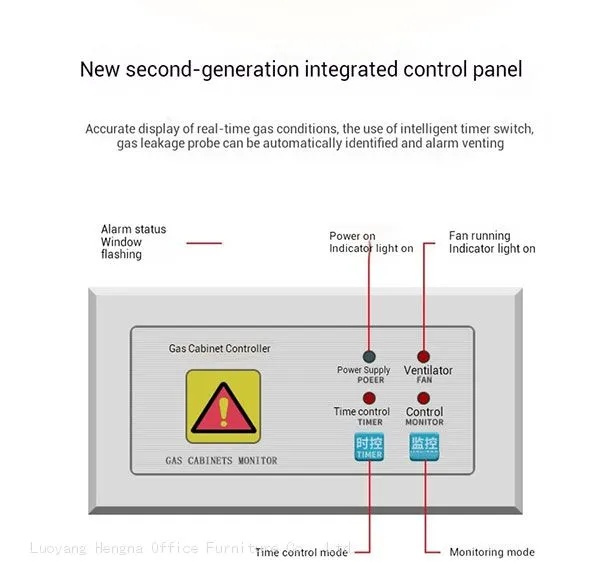

Optional Alarm System
For sites that want electronic monitoring, the locker can be equipped with a combustible gas sensor, 85dB audible alarm, and red flashing light. The system operates on standard 110V AC and includes a MAXAR exhaust fan that activates automatically when gas is detected. This is the same reliable alarm used in our chemical plant cabinets, now available as a field‑installable option.
Comparison: Industrial Locker vs. Standard Cabinet
| Feature | Standard HENGNA Cabinet | Industrial Oilfield Locker |
|---|---|---|
| Cylinder Restraint | Single chain per cylinder | Dual chains per cylinder |
| Loading Mechanism | Removable bottom plate (manual lift required) | Fold‑down pedal ramp (no lift) |
| Door | Glass window standard | Solid steel or glass option |
| Anchoring | Optional | Standard anchoring brackets |
| Typical Application | Labs, hospitals, general industry | Oilfields, drilling sites, remote locations |
How to Use the Loading Pedal
Unlock and open the cabinet door.
Pull out the bottom plate (it slides forward). It doubles as the ramp.
Fold down the attached support legs so the plate rests on the ground at an angle.
Roll the cylinder up the ramp into the cabinet.
Lift the ramp back to horizontal and slide it into place under the cylinder.
Secure both retaining chains around the cylinder and hook them to the anchors.
Close and lock the door.
The entire process takes less than two minutes and requires no heavy lifting.
Frequently Asked Questions

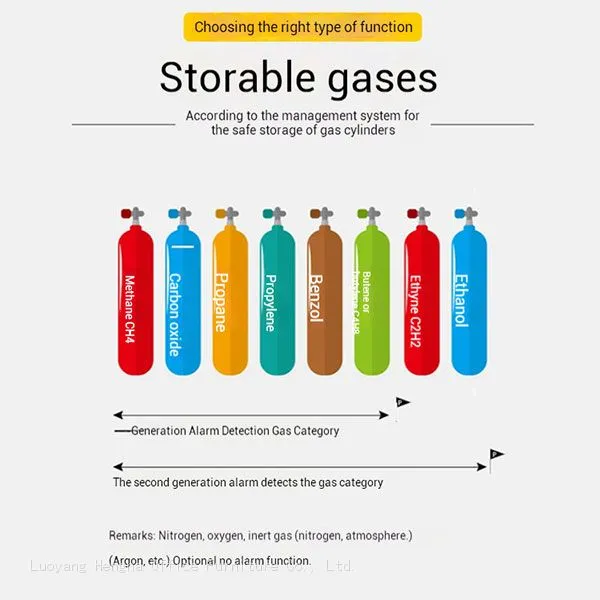

Q1: Do I need the alarm option for my oilfield site?
It depends on your gases and site safety policy. If you store flammable gases (e.g., acetylene, hydrogen) in an area where a leak could go unnoticed, we recommend the alarm. For inert gases like nitrogen or argon, the alarm is less critical—the main risk is physical impact or tipping, which the chains prevent. Many oilfield customers choose the locker without alarm for simplicity, relying on visual inspection and the physical restraints.
Q2: Can this locker withstand hurricane‑force winds?
The locker itself is heavy and stable, but in extreme weather, we recommend anchoring it to a concrete pad using the optional brackets. The cabinet has been tested to withstand winds up to 100 mph when properly anchored. For offshore or coastal installations, we offer additional corrosion protection packages.

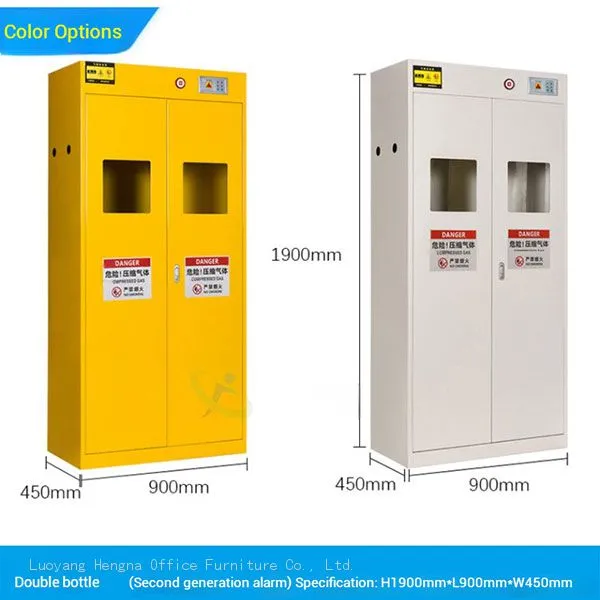

Q3: What sizes are available?
We offer three widths:
500mm: Single cylinder (ideal for tight spaces)
900mm: Double cylinder (most popular for oilfield trucks and workshops)
1200mm: Triple cylinder (for high‑volume sites)
All have the same 1900mm height and 450mm depth, so they fit together neatly if you need multiple units.
Applications Across Texas Oil & Gas
| Site Type | Typical Gases | Why This Locker Works |
|---|---|---|
| Drilling Rigs | Oxygen, acetylene, nitrogen | Rugged construction withstands rig moves; pedal allows quick cylinder changes |
| Wellhead Compressor Stations | Natural gas (for calibration), nitrogen | Dual chains secure cylinders against vibration from machinery |
| Pipeline Construction | Oxygen, acetylene, propane | Easy loading from pickup trucks; solid door option prevents damage |
| Refineries & Petrochemical Plants | Hydrogen, helium, calibration gases | Heavy‑duty steel and corrosion coating meet plant specs |
| Wireline & Pumping Units | Nitrogen, CO₂ | Compact single or double size fits on service trucks |
Why HENGNA as Your China Supplier
HENGNA has been manufacturing industrial safety equipment for over 15 years. We supply directly to oilfield service companies, EPC contractors, and drilling operators across Texas. Our factory in Luoyang, China, uses automated welding and coating lines to ensure consistent quality, and we ship containers weekly to Houston and other Gulf ports.
Benefits of Buying Direct
Competitive pricing – No middleman markups.
Customization – Add your company logo, specify colors, or modify dimensions.
Quality assurance – Every cabinet is tested before shipping.
Spare parts availability – Chains, pedals, locks, and sensors are stocked in our Houston warehouse.
For Texas oil and gas sites, safety isn’t a luxury—it’s a daily necessity. The HENGNA Industrial Gas Bottle Safety Locker delivers the rugged physical protection you need: heavy‑gauge steel, dual retaining chains, and a loading pedal that eliminates manual lifting. Whether you choose the basic mechanical version or add our optional alarm system, you’re getting equipment built to survive the toughest conditions.
Choose HENGNA for:
Strength – 1.5mm steel, welded construction
Security – Dual chains per cylinder
Ease – No‑lift loading pedal
Durability – Epoxy coating resists heat, dust, and corrosion
The contact information of the sales manager is shown in the picture below. You can make inquiries directly without waiting.
