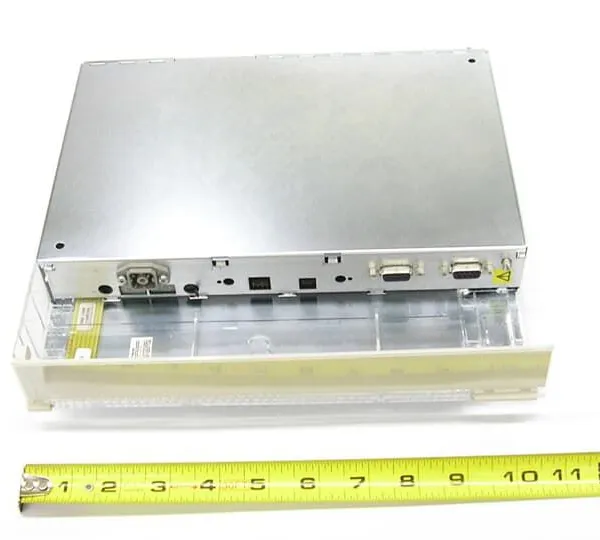

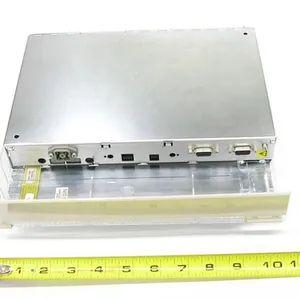

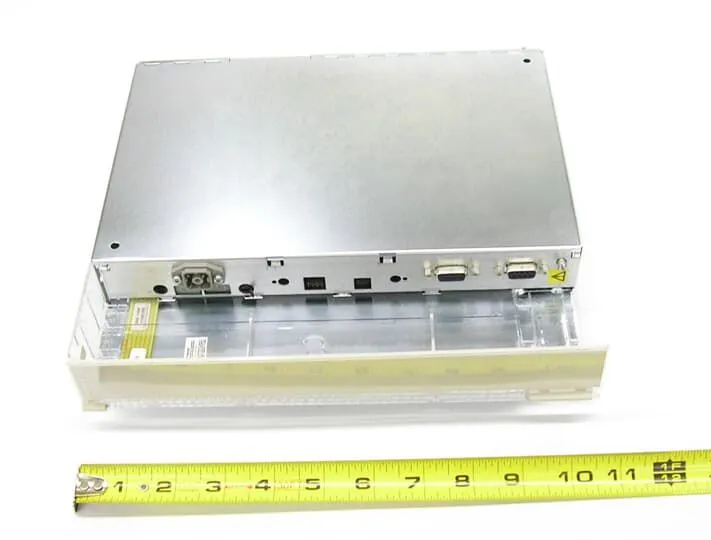

ABB PM632 3BSE005831R1 is an industrial‑grade central processing unit (CPU) module. It serves as the control core of distributed industrial automation systems, designed specifically for harsh industrial environments. It is widely compatible with the Advant Controller 110 and Advant Open control systems.Its main functions are to execute control programs, manage communication with I/O modules, and coordinate the operation of the entire automation system. Featuring high reliability and strong compatibility, it supports stable operation in new industrial automation projects and serves as an ideal spare part for legacy ABB systems. It is a key component for industrial automation and process control in power generation, chemical, oil and gas, general manufacturing, and other industries.
1 Technical Data
1.1 Electrical and Processor Parameters
Type: Industrial‑grade central processing unit (CPU) module. Core functions: execute control programs, manage I/O module communication, coordinate overall system operation, and support distributed industrial automation control.
Processor: MC 68000 processor, operating frequency 16 MHz, providing high‑efficiency logic operation and instruction execution to quickly process various control commands and data on the industrial site.
Power supply: 24 VDC, suitable for industrial standard DC power systems, ensuring stable and reliable continuous operation of the CPU module to meet on‑site power requirements.
Memory: Supports external battery‑backed memory modules for long‑term storage of control programs and operating data, preventing data loss due to unexpected power failure and ensuring system continuity.
Communication: Equipped with complete communication interfaces, mainly responsible for managing communication with internal I/O modules and coordinating collaborative operation. It also supports seamless connection with the Advant Open control system for data exchange and system management.
1.2 Mechanical and Installation Parameters
Structure: Standardized modular package, dimensions 310.5 × 38.7 × 238.5 mm (W × H × D). Compact design suitable for standard layouts in industrial control cabinets, facilitating system integration and cabinet space planning.
Weight: Approx. 1.2 kg. Lightweight design for easy on‑site installation, removal, and maintenance, reducing labor costs while meeting cabinet load requirements.
Mounting: Rack‑mounted design for stable integration into industrial control cabinets. Easy and secure installation, resistant to on‑site vibration, ensuring stable module operation.
1.3 Environmental and Reliability Parameters
Operating temperature: -20 °C to +60 °C. Wide temperature range adapts to temperature variations in power, chemical, oil and gas, and other industrial sites, enabling stable long‑term operation in extreme cold and heat without additional temperature control equipment.
Storage temperature: -40 °C to +85 °C. Excellent storage adaptability for long‑term spare part storage without special conditions.
Immunity: Industrial‑grade rugged design with high resistance to electromagnetic interference, vibration, and dust. Withstands various on‑site disturbances to avoid abnormal program operation or communication interruption.
Reliability: 12‑month warranty. Uses high‑quality industrial components with tight packaging, low long‑term failure rate, enabling continuous stable operation of industrial automation systems and reducing downtime.
2 Key Features
2.1 Core Control Capability for Distributed Automation Systems
As the core CPU module of the Advant Controller 110 series, equipped with a 16 MHz MC 68000 processor, it delivers efficient instruction execution and logic operations. It stably runs control programs, accurately manages I/O communication, coordinates orderly operation of the distributed system, and provides core support for industrial automation and process control to ensure precise production management.
2.2 High Compatibility for New and Legacy Systems
Fully compatible with new Advant Controller 110 and Advant Open control systems, while also supporting ABB legacy systems. It is an ideal replacement spare for aging automation setups. Seamless replacement without major system modifications effectively resolves shortages and maintenance difficulties of old parts, ensuring continuous stable operation of legacy systems.
2.3 Secure and Reliable Data for System Continuity
Supports external battery‑backed memory for permanent storage of critical data such as control programs and operating parameters. Data is protected even during unexpected power outages. The system quickly resumes normal operation after power restoration, minimizing production disruption and ensuring continuity.
2.4 Rugged Design for Harsh Industrial Conditions
Industrial‑grade rugged construction and rack mounting fit standard cabinet layouts with secure installation and excellent resistance to vibration and dust. The wide temperature range (-20 °C to +60 °C) enables stable long‑term operation in demanding environments such as power, chemical, and oil and gas facilities, reducing environmental maintenance costs.
2.5 Easy Integration and Maintenance for Improved Availability
Standardized modular design and convenient rack mounting allow fast integration into compatible automation systems with seamless compatibility with I/O and communication modules, simplifying system setup. Lightweight build and clear interface layout simplify on‑site installation and servicing. As an original standard spare, procurement and replacement are efficient, shortening downtime and improving system availability.
3 Typical Applications
Power generation: Used in power plant automation systems as the core CPU module to execute programs, manage I/O communication, and coordinate auxiliary equipment and power generation processes. Also serves as a spare for aging plant systems to ensure stable operation.
Chemical industry: Applied in automation for chemical production, compatible with the Advant Controller 110 system, providing logic control and coordination for reactors, pumps, compressors, and other equipment. Resists harsh on‑site conditions to ensure continuous stable production.
Oil and gas: Deployed in automation systems for oil and gas extraction and transportation, performing core control and coordinating field equipment. Acts as a legacy spare to resolve maintenance issues and ensure safe and efficient production.
General manufacturing: Suitable for distributed automation systems in various manufacturing fields, delivering precise control and coordination for production lines and processing equipment to improve efficiency. Also supports spare replacement for aging production systems to extend service life.
