In the sensitive environment of a pathology laboratory, the handling and storage of flammable reagents are tasks that demand zero tolerance for error. From tissue processing to slide staining, the use of volatile solvents like xylene, ethanol, and formaldehyde is routine. The Flammable Reagent Safety Cabinet is engineered to address the specific safety challenges of these labs, combining critical fire protection with strict access control, ensuring that hazardous materials are contained without compromising the workflow of medical professionals.
The Critical Need for Specialized Storage in Pathology
Pathology labs differ from standard industrial sites. The chemicals used are often not only flammable but also toxic. A simple spark caused by static electricity or unauthorized access to dangerous reagents can lead to irreversible consequences. Standard storage cabinets fail to provide the necessary protection against these dual risks. This cabinet is built to bridge the gap between safety compliance and operational efficiency.
Anti-static Protection: Eliminating the Invisible Threat
In pathology labs, dry air and synthetic flooring can generate significant static electricity. For flammable liquids like ethanol, a static spark is a potent ignition source.
Validated Grounding System: This cabinet is equipped with a dedicated anti-static grounding port. Tested by Shenzhen Tianhai Testing Technology Co., Ltd., the grounding continuity was verified with a resistance of just 0.021Ω. This ultra-low resistance ensures that any static charge accumulated during the pouring or movement of containers is instantly dissipated into the earth, effectively neutralizing the risk of static-induced fires.
Dielectric Safety: To ensure electrical safety in labs filled with sensitive equipment, the cabinet passed an insulation dielectric strength test at 1760V for 1 minute without breakdown.
Double Lock System: Ensuring Regulatory Compliance
The storage of hazardous reagents in medical facilities is subject to strict regulatory oversight. The double lock system integrated into this cabinet is designed for:
Controlled Access: The dual-lock mechanism (supporting a combination of key locks and padlocks) ensures that two authorized personnel must be present to access the chemicals. This “two-person rule” is a standard security measure in high-security medical storage.
Theft and Misuse Prevention: It prevents unauthorized staff or cleaning personnel from accidentally exposing themselves to dangerous chemicals or removing them from the premises.
Validated Fire and Explosion Resistance
Safety claims are backed by rigorous testing. The cabinet has been assessed against some of the toughest standards:
Explosion-Proof Compliance: It meets the requirements of GB 3836.1-2021 and GB/T 3836.8-2021 for explosive environments. This means the cabinet is safe for use in areas where flammable vapors may be present.

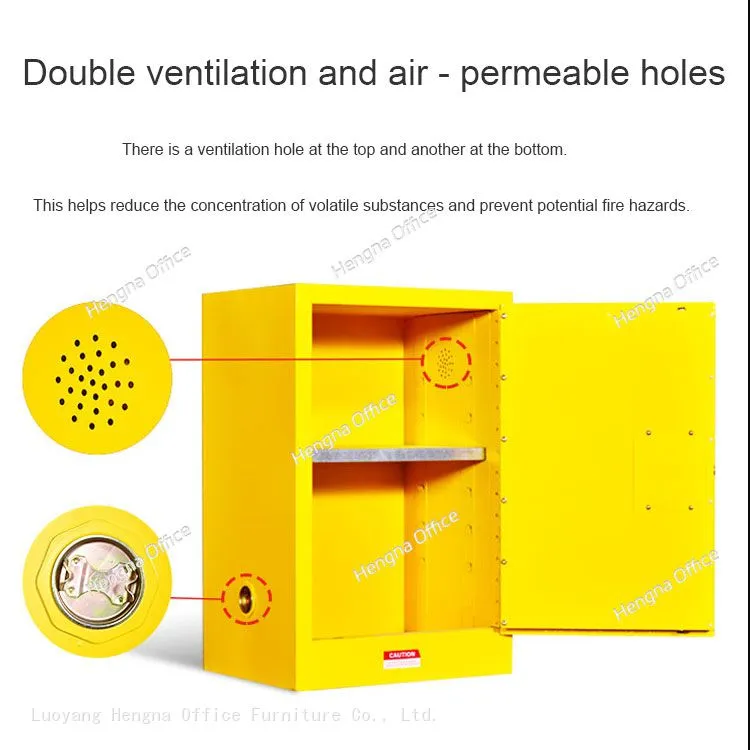

Flame Arrestor Performance: The ventilation ports are fitted with flame arrestors that passed a 15-minute combustion test with no flashback. This is crucial for pathology labs, preventing external fire sources from igniting the stored solvents.
Technical Specifications
| Feature | Specification |
|---|---|
| Application | Pathology Labs, Medical Research |
| Locking System | Double Lock System (Two-person access) |
| Anti-static | Grounding Port (Resistance 0.021Ω) |
| Fire Resistance | Validated to NFPA 30 Time-Temperature Curve |
| Explosion Proof | GB 3836.1-2021, GB/T 3836.8-2021 Compliant |
| Material | 1.2-2.0mm Cold-Rolled Steel |
| Impact Resistance | 7.0J (Tested) |
For pathology labs, safety is about precision. This Flammable Reagent Safety Cabinet offers a precise solution to the risks of fire, explosion, and unauthorized access. With its validated anti-static grounding and secure double lock system, it allows medical professionals to focus on diagnostics and research, knowing their chemical storage is fully compliant and secure.
