F57 Fluidized Bed Boiler Coal Feeder
Strength and Honors
-
Electronic belt scale has been awarded the title of "National Manufacturing Single Champion Product".
-
Chief drafter of the national standard "Continuous Totalizing Automatic Weighing Instrument (Belt Scale)" and co-drafter of the national standard "Pressure-Tolerant Metering Coal Feeder".
-
The first and only listed company in the dynamic weighing industry (Stock Code: 300466).
-
The first and only company globally to obtain both the 0.2% belt scale OIML certificate from the International Organization of Legal Metrology and the EU EC certificate.
-
Ranked first in domestic sales for 19 consecutive years and first in international sales for 9 consecutive years in belt scale (including weighing coal feeders and weighing feeders) sales statistics by the Weighing Instrument Association.
-
Over 100 related product patents, including more than 20 invention patents, 4 outstanding invention patents, and 7 core weighing technologies.
-
30 years of R&D and manufacturing expertise, with cumulative sales exceeding 50,000 units/sets of equipment and over 6,000 customers.
-
Vice Chairman Unit of the China Weighing Instrument Association.
-
Hosts the Jiangsu Provincial Automatic Weighing Instrument Engineering & Technology R&D Center and the Jiangsu Provincial Dynamic Weighing Engineering & Technology Research Center.
-
Developer of China's first material test system for weighing coal feeders.
Product Overview

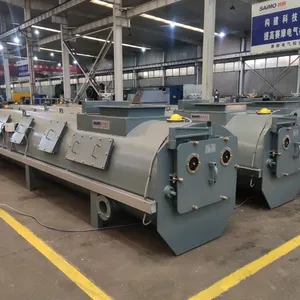

The Saimo F57 Triple-Check Weighing Coal Feeder is specifically designed for feeding fuel and sorbents to various types of fluidized bed boilers. It performs dynamic weighing, totalization, and flow control during the feeding process. Saimo coal feeders are widely used for the quantitative feeding of coal in various boiler applications within the power generation, chemical, and metallurgy industries.
Working Principle: During operation, as coal on the belt passes the weighing zone, two high-precision strain-gauge load cells installed beneath the weighing bridge detect the instantaneous coal weight in real-time. A digital speed sensor mounted on the tail pulley provides continuous belt speed measurement. Installing the sensor on the tail pulley ensures accurate speed measurement, preventing inaccuracies caused by belt slip. The speed and weight signals are processed by the Saimo feeder controller to calculate the instantaneous coal feed rate and accumulated total. The controller compares the actual flow signal with the desired flow signal from the combustion control room, and outputs a control signal via PID regulation to the inverter. This dynamically adjusts the belt speed to ensure continuous, uniform, and quantitative coal feed.
Product Features:
-
Robust, Pressure-Tolerant Enclosure: The feeder features a sturdy, sealed, pressure-resistant housing designed to withstand pressures up to 0.35 MPa, preventing air leakage and coal dust escape.
-
Shaft Sealing: All shaft exit points use packing gland seals to meet pressure containment requirements.
-
Access Doors: Front and rear access doors employ a tongue-and-groove structure; inspection windows use blind-hole connections, effectively enhancing sealing.
-
Sealing Air Interface: Equipped with a sealing air interface featuring a multi-point air outlet structure to improve sealing and effectively isolate hot air ingress.
-
Flat Idler & Belt: Utilizes a flat idler structure. The belt is an endless, jointless, flame-retardant, skirted rubber belt with a 40mm skirt height.
-
Drive Pulley: The drive pulley has a herringbone rubber lagging for strong traction and prevention of belt misalignment.
-
Tail Pulley: The tail pulley features a crowned, self-cleaning design to effectively prevent belt misalignment and coal buildup.
-
Take-up: Tail pulley tensioning uses a screw-type take-up device adjustable from outside the housing.
-
Belt Training: The return belt is equipped with a gravity-type automatic training device to ensure proper belt tracking.
-
Bearing Support: Main and tail pulley bearings are pillow block types, with lubrication points located outside the housing.
-
Idlers: 89mm diameter steel cylindrical idlers with minimal radial runout relative to the shaft, beneficial for accurate weighing.
-
Internal Belt Training: The feeder includes an automatic belt training device for self-correction of belt misalignment.
-
Belt Cleaning: External belt cleaning uses a weighted scraper. A chain conveyor at the bottom removes spilled material/fly ash.
-
Access: Convenient access doors with viewing windows are provided at both ends of the feeder.
-
Lighting: Multiple lighting fixtures are installed on the housing, allowing bulb replacement without shutdown.
-
Inlet Gate: The inlet section has a sliding adjustable gate to ensure uniform material flow.
-
Weighing System: Employs the Saimo F1 dual-load cell weighing bridge structure, effectively compensating for errors caused by off-center loading.
-
Calibration: Includes a test weight calibration device for on-machine calibration.
-
Speed Sensor: Mounted on the tail pulley to reduce errors from belt slip and increase sensor reliability.
-
Controller: The Saimo feeder controller uses a 32-bit CPU and 20-bit A/D conversion for fast data processing and ensured calculation accuracy. It offers multiple digital I/O and communication functions for versatile connectivity.
-
Drive Motor Connection: Options include direct coupling via coupling, chain drive, or shaft-mounted type.
Leveraging 30 years of R&D, production experience, and thousands of reliable field installations, Saimo designs and manufactures a wide variety of coal feeders. Models are available with belt widths from 500mm to 1400mm and lengths from 2m to 38m, tailored to specific site conditions. The pressure-resistant housing is constructed from carbon steel, manufactured and sealed to withstand explosion pressures of 0.35 MPa, meeting diverse customer needs.
The F57 feeder can be optionally equipped with the advanced Saimo Triple-Check Weighing Technology combined with a double-idler scale frame, achieving feeding accuracy as high as ±0.5%. This technology solves the problem of system failure when a single load cell malfunctions, allowing the feeder to continue operating in weighing mode even if one sensor fails, ensuring operational stability and reliability.
The Saimo controller, dedicated for coal feeders, uses a microprocessor and a large screen display. It conveniently shows parameters like instantaneous feed rate, accumulated total, deviation from setpoint, and other optional data, while indicating various statuses and alarms. It also provides outputs for remote monitoring and enables communication with DCS systems.
Technical Parameters
Item |
Parameter Range |
|---|---|
Flow Rate Range |
0.5 - 300 t/h |
Material Test Error |
Number of idlers n=1 or 2; ≤ ±0.5% (Initial Verification); ≤ ±1.0% (In-service) |
Number of Load Cells |
2 or 4 |
Effective Weighing Length |
L × n (L: Idler spacing) |
Belt Width |
500 - 1400 mm |
Belt Speed |
0 - 0.6 m/s |
Belt Type |
Endless skirted rubber belt or others |
Communication Protocol |
Standard MODBUS, PROFIBUS, TCP/IP |
Communication Interface |
RS-485, RS-232, Ethernet |
