GE DS200ACNAG1ADD is an ARCNET communication interface card (Attached Resource Computer Network card) designed for the Speedtronic Mark V series gas/steam turbine control system. As a core component for network communication in the Mark V system, it establishes high-speed data links between the controller, the host computer (engineering station/operator station), and network nodes, ensuring stable interaction of turbine control commands and operating status. It is widely used in demanding industrial applications such as power generation and petrochemicals. Manufactured in the United States, it fully complies with GE’s high industrial control standards.
1 Product Positioning and System Compatibility
1.1 Core Positioning
As the ARCNET LAN communication hub of the Mark V system, the DS200ACNAG1ADD performs two key functions:
It builds a signal path between the main processor board (LDCC) and the turbine control operator interface, enabling ARCNET network communication via coaxial cable transmission.
It supports remote monitoring, parameter downloading, data uploading, and system diagnostics from the host computer, providing efficient data interaction support for turbine control and serving as the communication foundation for reliable system operation.
1.2 System Compatibility
Exclusively compatible with the GE Speedtronic Mark V series gas/steam turbine control system; can be seamlessly installed into a standard control rack and work cooperatively with core modules such as LDCC, TCQC, and STCA.
Supports ARCNET network topology expansion and multi-node communication to meet the network expansion requirements of turbine systems in large power plants and petrochemical plants.
Features a high-reliability design that aligns with the triple modular redundant architecture of critical parameters in the Mark V system, ensuring continuity of communication links.
1.3 Environmental and Physical Characteristics
Operating environment: Temperature -10℃ to +40℃, relative humidity ≤85% (non-condensing), suitable for standard industrial environments in control cabinets.

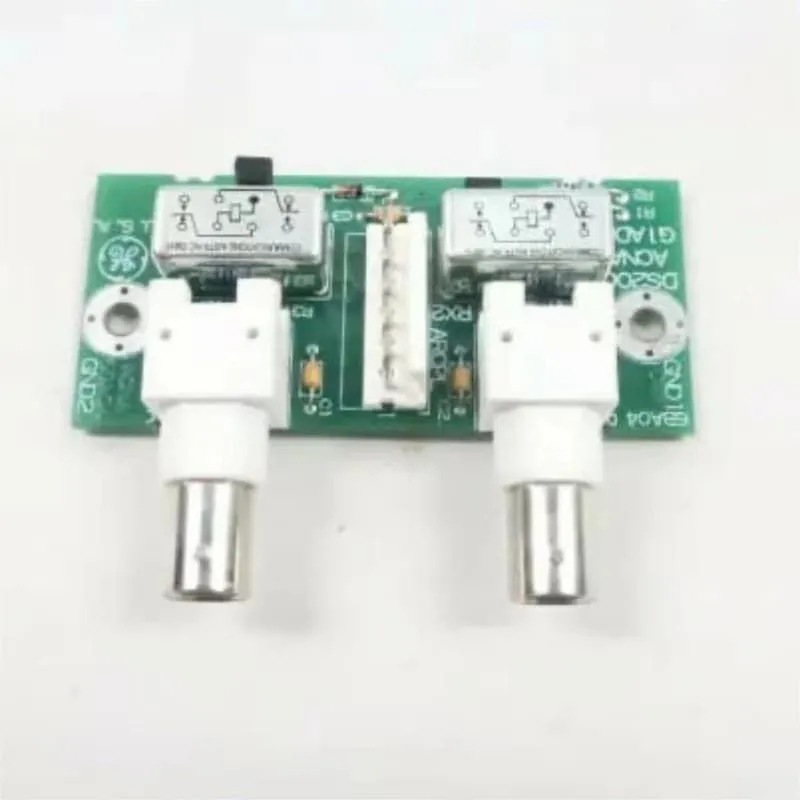

Protection and structure: Standard PCB coating for dustproof, moisture-proof, and anti-interference performance; the circuit board integrates 4 metal film resistors, 3 capacitors, 1 diode, and 2 operating logic relays with a compact layout.
Physical interfaces: Onboard 2 right-angle BNC female connectors (for ARCNET coaxial LAN cables) + 1 6-pin vertical pin terminal connector (for auxiliary communication/power supply), enabling convenient installation.
Power requirement: 24V DC power supply, with power consumption matching the Mark V rack power specifications.
2 Functions and Technical Advantages
2.1 Core Functions
ARCNET Network Communication
Provides a physical access point for the ARCNET local area network, enabling high-speed data exchange between the Mark V controller, host computer, and other control nodes. It supports core communication tasks including command transmission, status feedback, and fault diagnosis.The signal path covers “LDCC Main Processor → ARCNET Card → Operator Interface”, ensuring bidirectional, real-time transmission of turbine control commands and feedback signals.
System Diagnosis and Maintenance
Built-in 2 relays for operating logic status indication. Combined with the ARCNET network, it supports remote diagnosis of module and system faults from the host computer, reducing on-site maintenance difficulty.The minimalist hardware design (fewer components, clear layout) allows quick troubleshooting of communication abnormalities, interface faults, and other issues, improving maintenance efficiency.
High-Reliability Communication Assurance
Adapts to the triple modular redundant architecture of the Mark V system, with redundant backup for critical communication links to prevent system shutdown caused by single-point failures and ensure continuous turbine control.Industrial-grade PCB coating and anti-interference design effectively resist harsh environmental influences such as electromagnetic interference, dust, and moisture, ensuring long-term stable operation.
2.2 Technical Advantages
| Advantage Aspect | Description |
|---|---|
| High Compatibility | Exclusively adapted to the Mark V system for integration without additional modification; compatible with existing ARCNET network nodes, reducing system upgrade/replacement costs. |
| Easy Maintenance | Modular plug-and-play design supports on-site quick replacement; clearly labeled interfaces for convenient testing/maintenance, greatly reducing downtime. |
| High Stability | Uses GE original-quality components to meet long-term industrial operation requirements, suitable for continuous production scenarios such as power generation and petrochemicals. |
| Flexible Expansion | Supports ARCNET network node expansion, flexibly adapting to communication requirements of turbine control systems of different scales. |
3 Application Scenarios
3.1 Power Industry
Used in Mark V turbine control systems of gas-fired power plants and combined-cycle power plants to realize communication between the controller and HMI operator stations/engineer stations, supporting unit startup/shutdown, operation monitoring, parameter optimization, and other operations.Ensures real-time transmission of commands and feedback data for generator excitation systems and gas turbine governing systems, supporting safe, efficient, and stable power generation.
3.2 Petrochemical Industry
Applied in gas turbine/compressor control systems of petrochemical plants and natural gas processing plants. It maintains stable communication links in high-temperature, high-humidity, oily, flammable, and explosive environments, supporting continuous control of production processes.Supports remote monitoring of turbine operating status, rapid feedback of abnormalities, and activation of protection mechanisms to avoid production interruptions.
3.3 Other Industrial Scenarios
Suitable for control systems of large rotating equipment (such as steam turbines, compressors) in metallurgy, papermaking, wastewater treatment, and other industries. As an ARCNET communication interface card, it enables data interaction between equipment control and the host computer.Can be used for the upgrade and renovation of Mark V systems by replacing old communication modules, improving system communication efficiency and reliability.
4 Technical Specifications
| Parameter Category | Detailed Specification |
|---|---|
| Model / Manufacturer | DS200ACNAG1ADD / General Electric (USA) |
| Product Series | GE Speedtronic Mark V Gas/Steam Turbine Control System |
| Core Functions | ARCNET LAN communication interface, system status indication, auxiliary fault diagnosis |
| Communication Interfaces | ARCNET (2×BNC female, coaxial cable), RS485 (terminal connector) |
| Power Requirement | 24V DC |
| Operating Temperature | -10℃ ~ +40℃ |
| Relative Humidity | ≤85% (non-condensing) |
| Hardware Composition | 4×metal film resistors, 3×capacitors, 1×diode, 2×operating logic relays |
| Physical Interfaces | 2×BNC connectors (LAN communication), 1×6-pin terminal connector |
| Protection Features | Standard PCB coating (dustproof, moisture-proof, anti-interference) |
| Mounting Method | Plug-in installation in Mark V standard rack |
| Key Features | High reliability, high compatibility, easy maintenance, adapted to triple modular redundant architecture |
