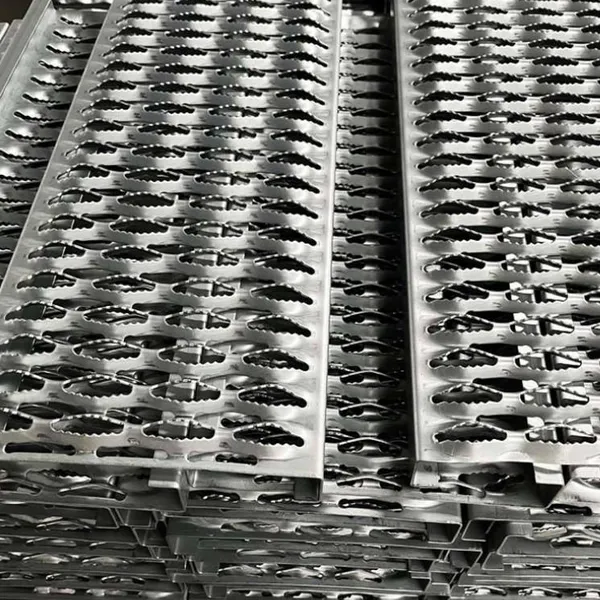

Aluminum Serrated Grip Strut Grating with Diamond Perforated Holes for Stair Treads
Product Description
Grip strut safety grating is used to create non-slip walkways and stair treads. The planks have a high strength-to-weight performance, which ensures a high load capacity and long life.
The product is made from a lightweight metal grating specifically designed for safety underfoot. The unique one-piece diamond shaped construction provides slip-resistance in all directions.
Grip strut is ideally suited for all walking/working surfaces where mud, ice, snow, grease, oil and detergents create slippery or hazardous conditions.
The serrated surface is designed in an open diamond pattern. This allows drainage of fluids, mud, chips and other accident-causing debris.
| Material |
hot rolled, cold rolled, aluminum, galvanized plate, stainless steel panel etc. |
| Hole patterns | crocodile mouth, round raised hole, tears shape etc. |
| Thickness | generally 2mm, 2.5mm, 3.0mm |
| Height | 20mm, 40mm, 45mm, 50mm, customized |
| Length | 1m, 2m, 2.5m, 3.0m, 3.66m |
| Production technique | punching, cutting, bending, welding |
Material
12 & 14 ga. Pre-Galvanized and Plain Steel
(.080 and .100 ga. 5052-H32)Type 304 16 ga. Stainless Steel
(Type 316L Stainless by special order)
Widths
24”
Heights
4-1/2”
Lengths
10’, 12’, or cut to size, walkways up to 24’ by special order.
(Stock sizes are run to full diamonds)
| Material Grade | Pre-Galvanized Steel Hot Rolled Pickled and Oiled (HRPO) steel Aluminum Alloy 5052 Stainless Steel 304, Stainless Steel 316 |
| Material Gauge | 9Guage, 10Guage, 11Guage, 12Guage, 13Guage, |
| Available Patterns | Standard Serrated, Non-serrated, Heavy duty |
| Widths and holes number | 2 Diamond holes for 4-3/4"width 3 Diamond holes for 7" width 4 Diamond holes of 9-1/2" width 5 Diamond holes of 11-3/4" width 6 Diamond holes of 14-3/4" width 7 Diamond holes of 17" width 9 Diamond holes of 21-1/2" width 10 Diamond holes of 24" width |
| Channel Depth | 1-1/2, 2, 2-1/2, 3" or customized |
| Channel Length | 6',8', 10', 12', or customized |
| Loading capacity | To check with our sales or engineers for Loading capacity table list |
| Slip resistance | complies with Federal Specification RR-G-1602D standards |
| 2 Diamond / 9-1/4" Width | ||||
| Diamond Pattern | Width | Channel Depth | galvanized | Aluminum |
| 2 Diamonds | 9-1/4" | 2" | 11 Ga., 10 Ga., 9Ga. | 12 Ga. (.080"), 10 Ga. (.100") |
| 9-1/4" | 2-1/2" | 11 Ga., 10 Ga., 9Ga. | 12 Ga. (.080"), 10 Ga. (.100") | |
| 9-1/4" | 3" | 11 Ga., 10 Ga., 9Ga. | 12 Ga. (.080"), 10 Ga. (.100") | |
| 9-1/4" | 4" | 11 Ga., 10 Ga., 9Ga. | 12 Ga. (.080"), 10 Ga. (.100") |
| 3 Diamond / 13-3/4" Width | ||||
| Diamond Pattern | Width | Channel Depth | galvanized | Aluminum |
| 3 Diamonds | 13-3/4" | 2" | 11 Ga., 10 Ga., 9Ga. | 12 Ga. (.080"), 10 Ga. (.100") |
| 13-3/4" | 2-1/2" | 11 Ga., 10 Ga., 9Ga. | 12 Ga. (.080"), 10 Ga. (.100") | |
| 13-3/4" | 3" | 11 Ga., 10 Ga., 9Ga. | 12 Ga. (.080"), 10 Ga. (.100") | |
| 13-3/4" | 4" | 11 Ga., 10 Ga., 9Ga. | 12 Ga. (.080"), 10 Ga. (.100") |
| 5 Diamond / 23-1/4" Width | ||||
| Diamond Pattern | Width | Channel Depth | galvanized | Aluminum |
| 5 Diamonds | 23-1/4" | 2" | 11 Ga., 10 Ga., 9Ga. | 12 Ga. (.080"), 10 Ga. (.100") |
| 23-1/4" | 2-1/2" | 11 Ga., 10 Ga., 9Ga. | 12 Ga. (.080"), 10 Ga. (.100") | |
| 23-1/4" | 3" | 11 Ga., 10 Ga., 9Ga. | 12 Ga. (.080"), 10 Ga. (.100") | |
| 23-1/4" | 4" | 11 Ga., 10 Ga., 9Ga. | 12 Ga. (.080"), 10 Ga. (.100") |
| 6 Diamond / 27-3/4" Width | ||||
| Diamond Pattern | Width | Channel Depth | galvanized | Aluminum |
| 6 Diamonds | 27-3/4" | 2" | 11 Ga., 10 Ga., 9Ga. | 12 Ga. (.080"), 10 Ga. (.100") |
| 27-3/4" | 2-1/2" | 11 Ga., 10 Ga., 9Ga. | 12 Ga. (.080"), 10 Ga. (.100") | |
| 27-3/4" | 3" | 11 Ga., 10 Ga., 9Ga. | 12 Ga. (.080"), 10 Ga. (.100") | |
| 27-3/4" | 4" | 11 Ga., 10 Ga., 9Ga. | 12 Ga. (.080"), 10 Ga. (.100") |
| 8 Diamond / 36" Width | ||||
| Diamond Pattern | Width | Channel Depth | galvanized | Aluminum |
| 8 Diamonds | 36" | 1-1/2" | 11 Ga., 10 Ga., 9Ga. | 12 Ga. (.080"), 10 Ga. (.100") |
| 36" | 2" | 11 Ga., 10 Ga., 9Ga. | 12 Ga. (.080"), 10 Ga. (.100") | |
| 36" | 2-1/2" | 11 Ga., 10 Ga., 9Ga. | 12 Ga. (.080"), 10 Ga. (.100") | |
| 36" | 3" | 11 Ga., 10 Ga., 9Ga. | 12 Ga. (.080"), 10 Ga. (.100") |
Product Features
1. Varied material types
2. Greatly increased safety with a special non-slip serrated edge surface
3. Maintenance-free open diamond design with the self-cleaning feature
4. Heavy load-carrying capacity with minimal deflection
5. Easy to install with low erection cost
6. Versatile in applications
