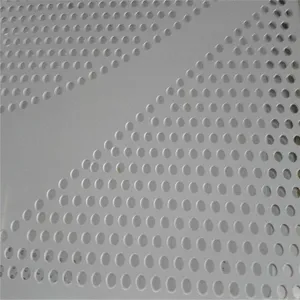

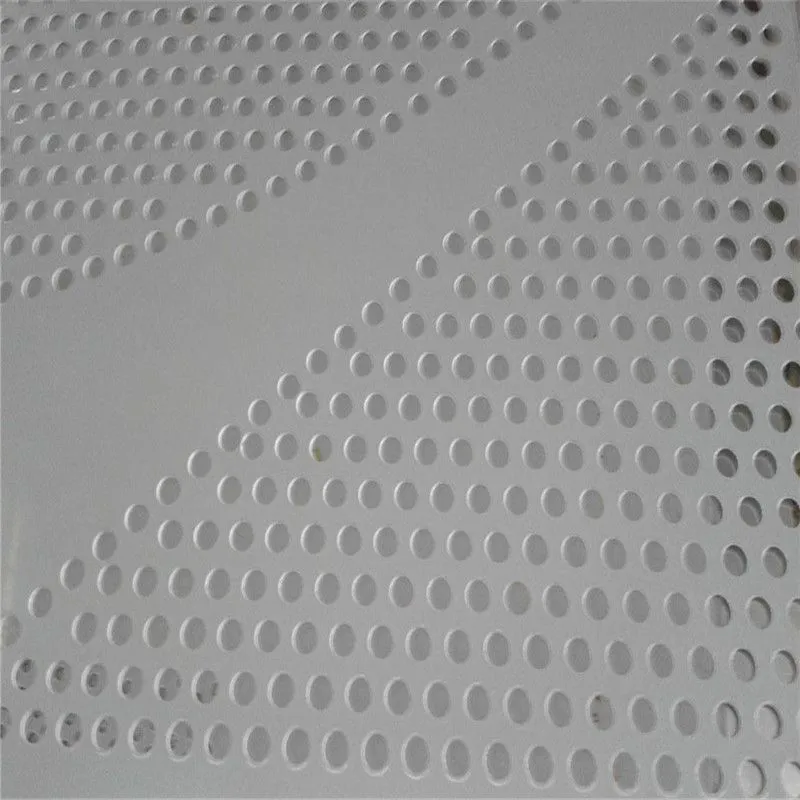

Help CenterRound Hole Perforated Metal Mesh 1.2mm Thickness for Industrial Filtration
Product Spotlights
Related Products
-
Standard Compliant Perforated Metal Ceiling Panels 1250x2500mmUS$ 8 - 9.50MOQ: 50 Square Meters -
Decorative Hexagonal Perforated Metal Panels for Architectural ScreensUS$ 6 - 8MOQ: 50 Square Meters
-
Powder-coated Perforated Metal Sheets 1220x2440mm for Noise BarriersUS$ 6 - 8.83MOQ: 100 Square Meters
-
Perforated Metal Roll 0.3-3mm Thickness for Automotive Ventilation SystemsUS$ 8 - 9.50MOQ: 50 Square Meters
-
Galvanized Perforated Metal Mesh Panel for Building Facade CladdingUS$ 8 - 9.50MOQ: 50 Square Meters

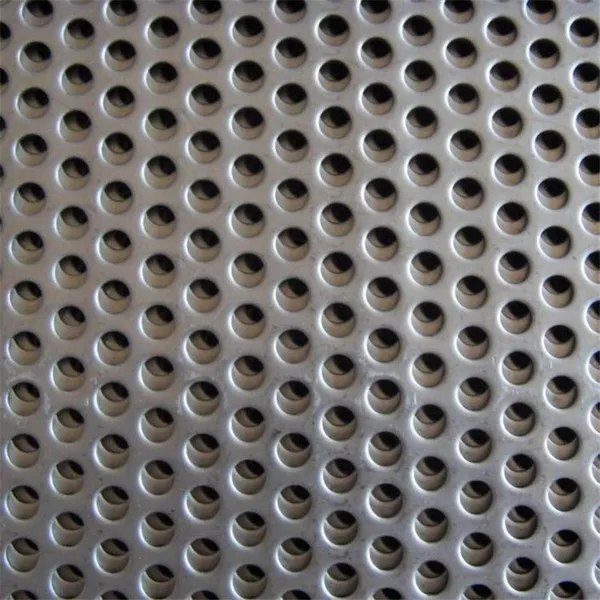

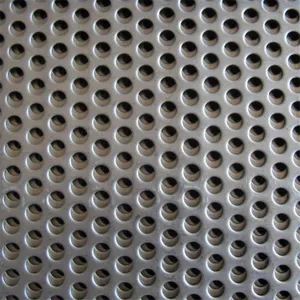

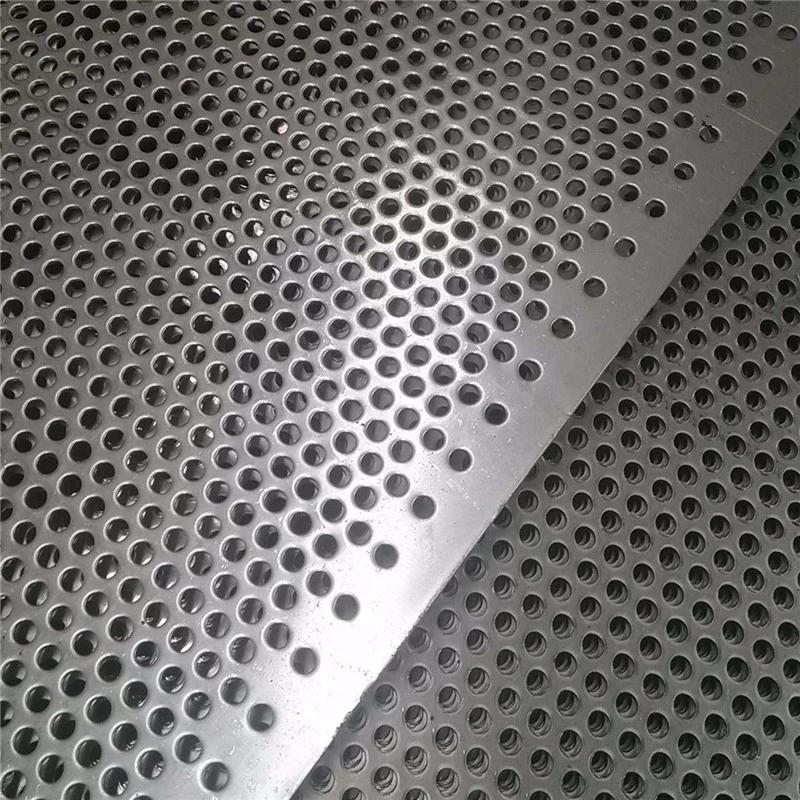

As a leading ISO9001-certified manufacturer since 2015, Anping Wanglai Wire Mesh Products Co., Ltd. specializes in producing high-performance Round Hole Perforated Metal Mesh with a precise 1.2mm thickness, engineered specifically for demanding industrial filtration applications. Operating from our expansive 5,000-10,000 sqm facility in Hebei, China, we leverage advanced technology and stringent quality control to deliver meshes that excel in durability, flow efficiency, and particle separation. Our annual export value of US$5 Million - US$10 Million to markets worldwide, including North America, EU, and Southeast Asia, underscores our commitment to global reliability.
This precision perforated mesh is designed to offer:
Superior Flow Control & Particle Retention: Engineered hole patterns ensure optimal fluid passage while capturing specific particle sizes critical for filtration accuracy.
Enhanced Structural Rigidity: The 1.2mm thickness provides exceptional strength and resistance to deformation under pressure, vibration, or impact.
Corrosion Resistance Options: Available in standard carbon steel or upgraded stainless steel (e.g., SUS 304, 316) for harsh chemical or humid environments. Surface treatments like galvanization or powder coating further enhance longevity.
Customizable Configurations: Tailor hole diameter, pitch (center-to-center distance), and open area percentage to meet exact process requirements.
Easy Integration & Maintenance: Smooth surface and uniform hole pattern prevent clogging and simplify cleaning.
Technical Specifications:
| Item | Details |
|---|---|
| Material | Low carbon steel, Stainless steel sheet, Galvanized steel, Aluminum metal |
| Thickness | 0.2 mm – 20 mm |
| Aperture | 0.5 mm – 200 mm |
| Size | 1200×2400 mm, 1220×2440 mm, or cut to size |

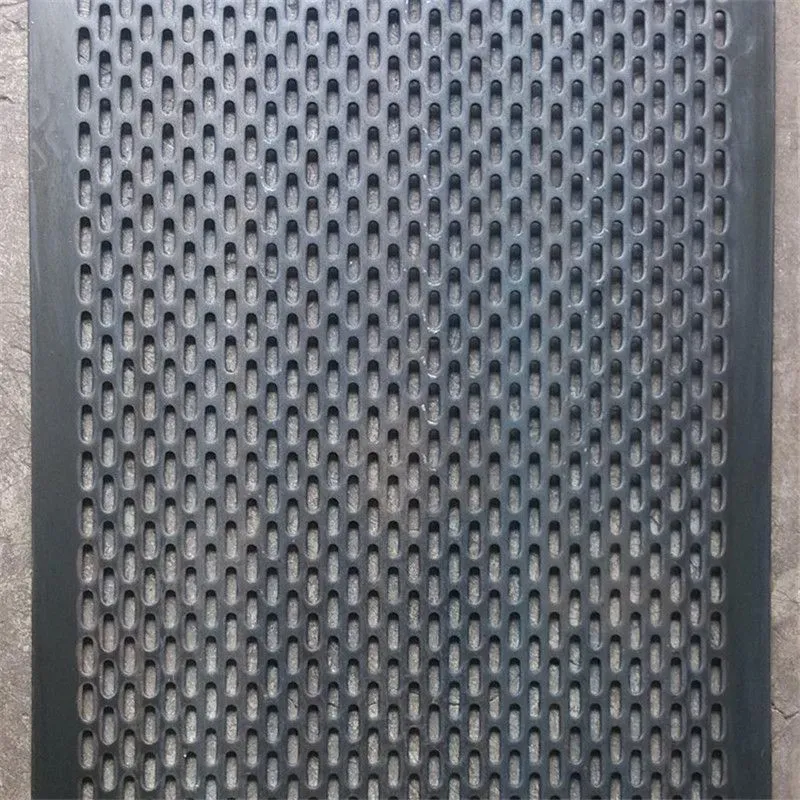

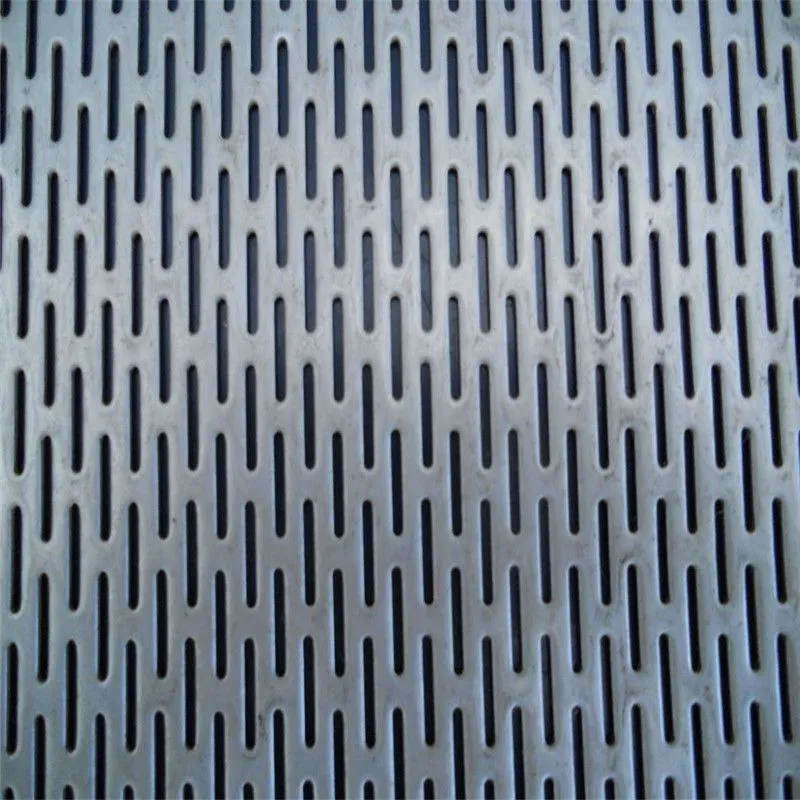

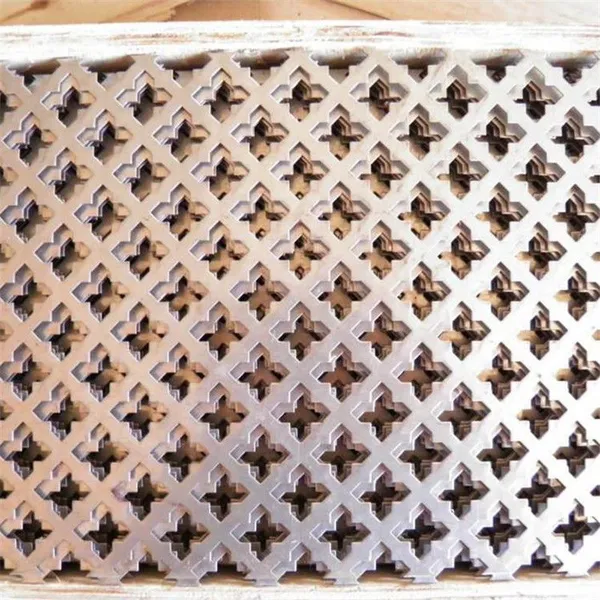

| Hole shape | Rectangular, square, diamond, round, triangular, louver, irregular hole |
| Hole arrangement | 90° staggered, 45° staggered, 60° staggered, 90° straight |
| Surface treatment | Galvanized, powder coating, anodized, fluorocarbon coating |
| Advantages | Light weight, durable application, good sound absorption, various hole design |
| Application | Machinery, filtration, enclosure, equipment, handicrafts production |
Applications extend beyond core filtration, including:
Safety grating & machine guards
Architectural screens & facades
Acoustic panels & silencer baffles
Agricultural sorting & drying beds
Mining & mineral processing screens
Backed by our 51-100 skilled workforce and ISO9001 quality management system, every mesh undergoes rigorous inspection for dimensional accuracy, hole consistency, and surface integrity. Our extensive experience serving diverse markets across North America, Europe, Asia, Africa, and Oceania ensures we understand the critical performance needs of industrial filtration. Shipments efficiently depart from Tianjin port, facilitating smooth global logistics. Trust Anping Wanglai for perforated metal mesh that combines precision engineering with robust manufacturing capabilities – contact us today for a quotation tailored to your exact specifications and experience the reliability trusted by industries worldwide.
FAQ:
Q: What is the minimum hole diameter achievable with 1.2mm thickness?
A: Typically, 1.0mm diameter is feasible with precision punching, though hole size must be slightly larger than material thickness for clean punching.Q: Can this mesh withstand high-temperature filtration processes?
A: Yes, especially when made from stainless steel (e.g., 304, 316). Carbon steel options have lower temperature limits unless specified for heat resistance.Q: Is the mesh suitable for corrosive liquid filtration?
A: Stainless steel grades (304, 316, 316L) are highly recommended for corrosive environments due to their superior corrosion resistance.Q: How is the open area percentage calculated?
A: It's the ratio of the total hole area to the total sheet area, expressed as a percentage. It depends on hole diameter and pitch. We provide calculations for your specific pattern.Q: Can I get samples before bulk ordering?
A: Absolutely. Sample pieces of standard configurations are available to evaluate quality and suitability for your application.Q: What lead time can I expect for custom orders?
A: Standard configurations ship within 7-14 days. Custom hole patterns/sizes typically require 15-25 days, depending on complexity and order volume.Q: How is the mesh packaged for export?
A: Sheets are securely packed in wooden crates or pallets with protective wrapping to prevent damage during transit from Tianjin port.Q: Can you supply the mesh in pre-cut shapes or fabricated panels?
A> Yes, value-added services like cutting, bending, welding, and framing are available upon request.
