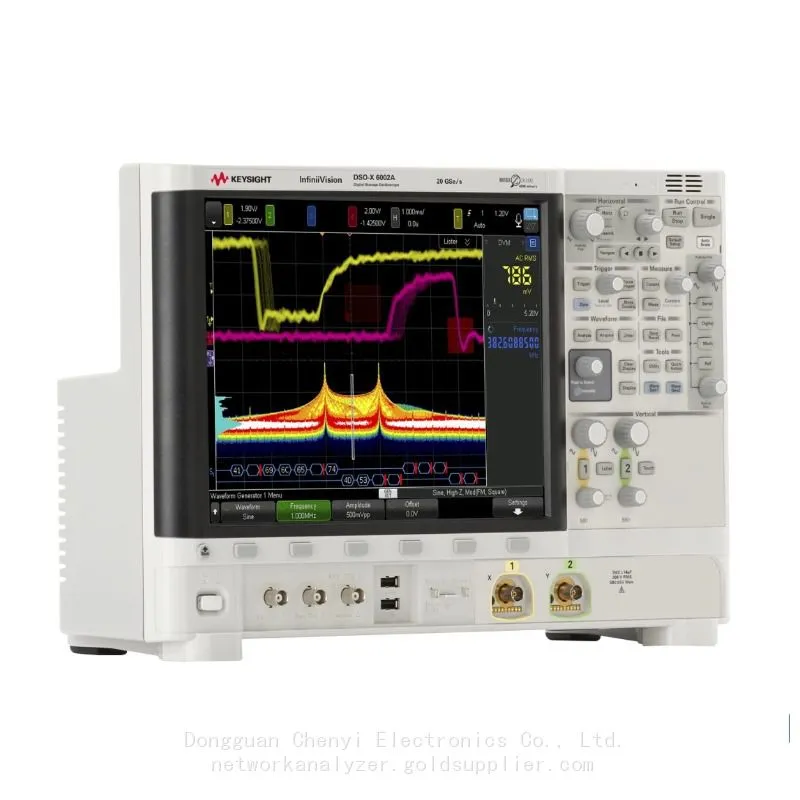

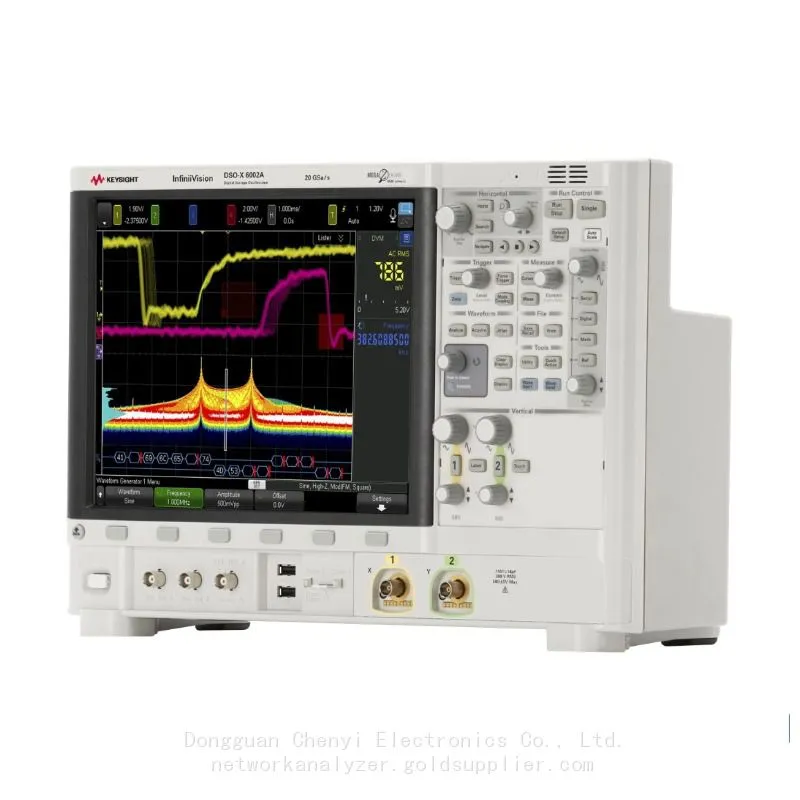

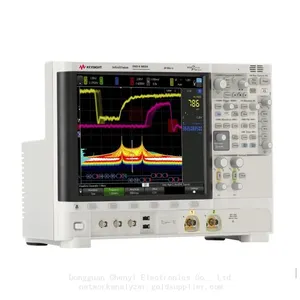

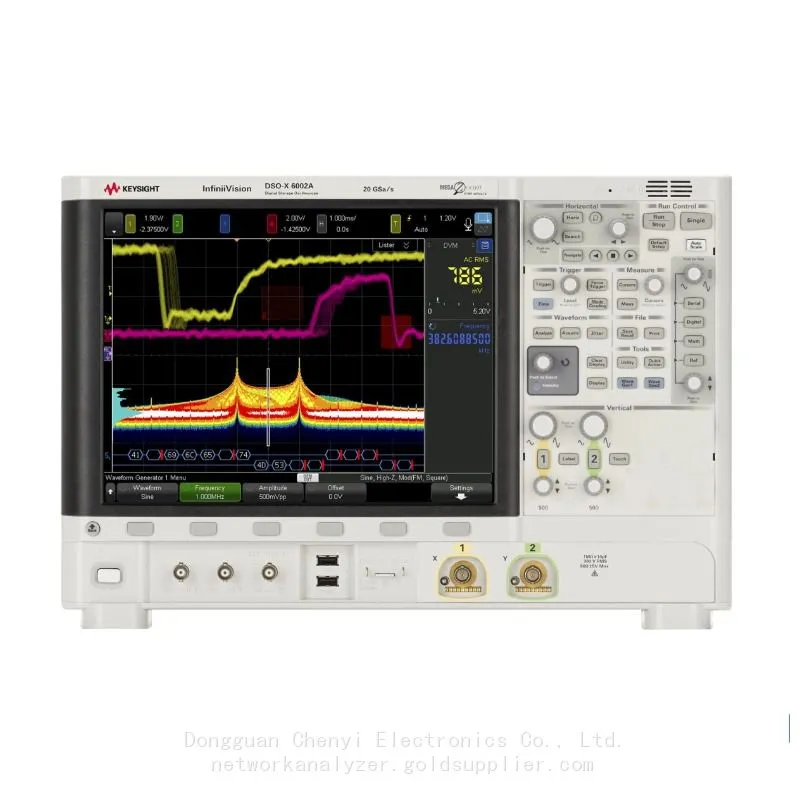

Keysight DSOX6002A Oscilloscope: 1 GHz - 6 GHz, 2 Analog Channels
DSOX6002A：1 GHz - 6 GHz, 2 Analog Channels
Key Features
• Bandwidths of up to 500 MHz to 6 GHz on all 4 or 8 analog channels
• 16 GSa/s Sample Rate
• 100 Mpts standard memory, up to 1.6 Gpts Mpts optional (half channel)
• 4 or 8 channels + 16 digital channels (MSO or upgrade)
• 10 bits of vertical resolution, up to 16 with high resolution
• 15.6-inch full HD touch display
• Widest range of applications including serial compliance, jitter analysis and more
Highlights
• 1 GHz - 6 GHz
• 2 analog channels
• Easily view and isolate signals on the 12.1-in capacitive multi-touch screen with Zone triggering
and 450,000 wfms/s update rate
• Make more precise measurements with 115 Vrms noise floor at 1 mV/div (1 GHz)
• Get performance measurements anywhere with the portable 6-in deep size

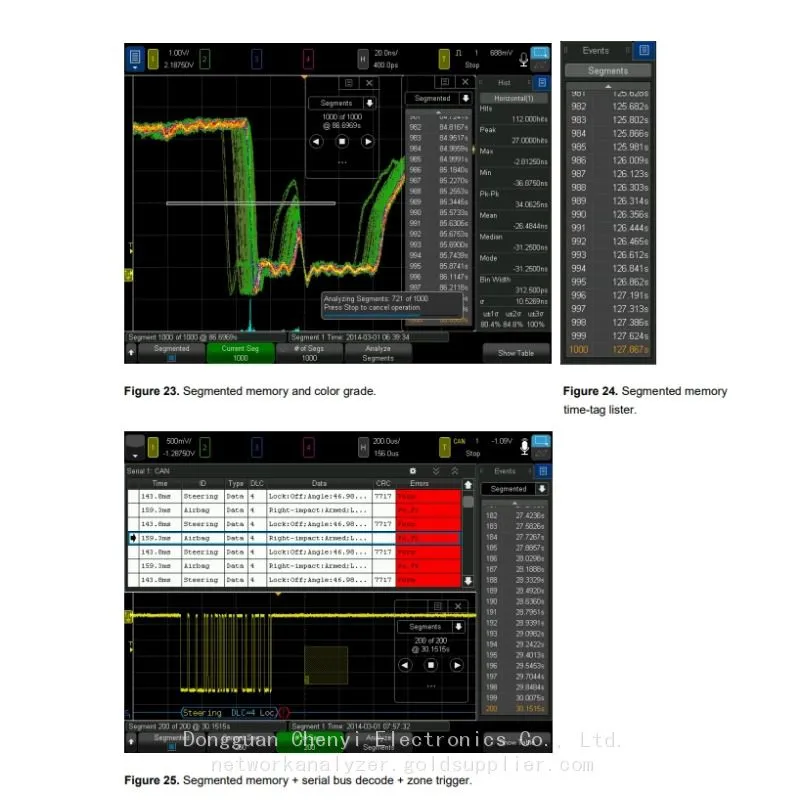

• Quickly see analysis details with standard histogram and color grade
• View signal integrity with jitter and eye diagram analysis options
• Expand capabilities with full upgradeability
What's included:
• Factory warranty 3-year warranty (90 days for unserialized accessories such as passive probes)
• Certificate of calibration, 2-year calibration interval
• One N2894A 700-MHz passive probe (10:1 attenuation) per channel
• Localized interface front panel overlay and built-in help system in help English, Chinese (simplified and
traditional), French, German, Italian, Japanese, Korean, Portuguese, Russian, and Spanish
• Voice control support in English, Chinese Simplified, Chinese Traditional, French, German, Italian,
Japanese, Korean, Portuguese, Russian, Spanish (Latin America) and Spanish (Castilian)
• Localized power cord
• Front-panel cover
• Documentation CD containing localized user’s guide, service guide, and programmer’s manual
Key features of the 6000 X-Series oscilloscopes
New bandwidth standard:
• Portable, 6-GHz, 20-GSa/s
• 210-µVrms noise floor at 1 mV/div (6 GHz)
• 115-µVrms noise floor at 1 mV/div (1 GHz)
New visualization standard:
• > 450,000 wfms/sec update rate
• Hardware zone touch trigger
• 12.1-inch capacitive multi-touch screen
• Histogram, color grade, jitter analysis (option), real-time eye diagram analysis (option), and more
New integration standard:

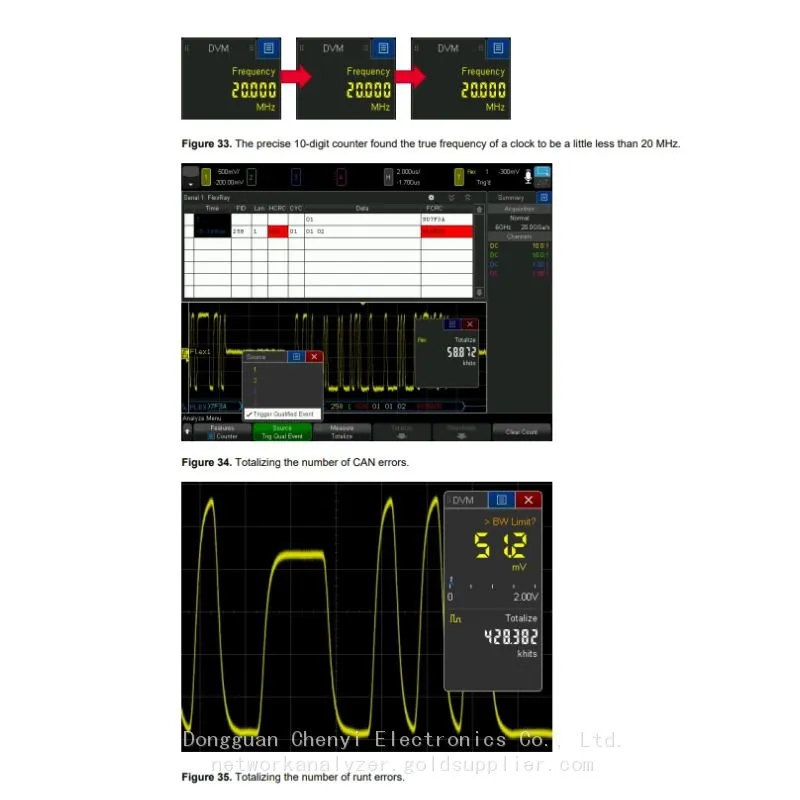

• 7 instruments in 1 (now with 10-digit counter)
• Standard multi-language voice control
• Bandwidth and options are upgradable
