Home > Electrical & Electronics > Electric Contact & Materials > 35KV High-voltage Transformer JDJJ(F)2 With 10-Year Warranty and Technical Support

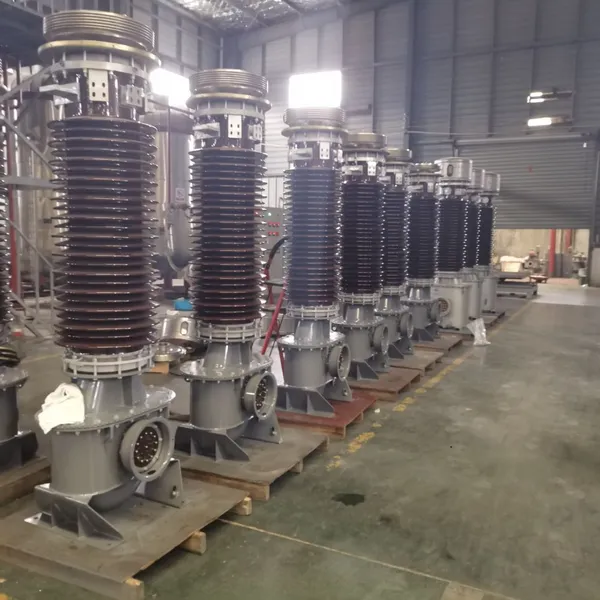

35KV High-voltage Transformer JDJJ(F)2 With 10-Year Warranty and Technical Support

35KV High-voltage Transformer JDJJ(F)2 With 10-Year Warranty and Technical Support thumbnail-3

35KV High-voltage Transformer JDJJ(F)2 With 10-Year Warranty and Technical Support thumbnail-4

35KV High-voltage Transformer JDJJ(F)2 With 10-Year Warranty and Technical Support thumbnail-5

35KV High-voltage Transformer JDJJ(F)2 With 10-Year Warranty and Technical Support photo-1

35KV High-voltage Transformer JDJJ(F)2 With 10-Year Warranty and Technical Support photo-2

35KV High-voltage Transformer JDJJ(F)2 With 10-Year Warranty and Technical Support photo-3

35KV High-voltage Transformer JDJJ(F)2 With 10-Year Warranty and Technical Support photo-4

35KV High-voltage Transformer JDJJ(F)2 With 10-Year Warranty and Technical Support photo-5

Product Spotlights

Invest in grid reliability with the 35KV JDJJ(F)2 Transformer. Features a robust 10-year warranty & global technical support for operational security. Manufactured under ISO9001 standards, it offers optimized efficiency with low losses, high short-circuit strength, and adaptable configurations for global power systems (50/60Hz). Benefit from reduced lifetime costs, proven performance in diverse markets, and efficient shipping from major Chinese ports. Ideal for demanding transmission/distribution networks.

US$ 500 ≥3 Units

Key Specifications

Get Latest Price

Certification:

Other, ISO9001 Quality System

Rated Voltage:

35KV

Model:

JDJJ(F)2

Contact Supplier Request Quote Chat Now

Jinhua Dika Electrical Equipment Co., Ltd.

1Yr

Payment & Shipping

Payment Methods:

Port of Shipment:

China

Delivery Detail:

Delivery time depends on order quantity.

Product Details
Company Profile
Contact Us

Certification Other, ISO9001 Quality System

Rated Voltage 35KV

Model JDJJ(F)2

Warranty 10-Year Comprehensive

Cooling Type Oil-immersed

Phase Three-phase

Frequency 50/60Hz

Application Power transmission & distribution

As a dedicated manufacturer with over a decade of expertise, Jinhua Dika Electrical Equipment Co., Ltd. proudly presents the 35KV High-voltage Transformer JDJJ(F)2. Engineered for exceptional reliability in demanding power transmission and distribution networks, this transformer stands out with its industry-leading 10-year warranty and robust global technical support. Our commitment to quality, evidenced by ISO9001 certification, ensures this critical infrastructure component delivers consistent performance under high-voltage conditions. Serving diverse international markets from North America to Oceania, we understand the stringent requirements of grid stability and operational efficiency.

The JDJJ(F)2 transformer is meticulously designed to meet the rigorous demands of modern electrical grids. Key features include:

Enhanced Insulation System: Utilizes advanced oil-paper insulation materials and structural design, significantly improving dielectric strength and resistance to thermal aging, ensuring long-term operational safety in 35KV applications.
Optimized Magnetic Core: Features high-grade, low-loss silicon steel laminations with step-lap core construction, effectively minimizing no-load losses and noise levels for greater energy efficiency and reduced environmental impact.
Robust Tank Construction: Fabricated from high-quality steel with superior corrosion protection, the tank ensures mechanical integrity and longevity, even in challenging environmental conditions. Sealed design minimizes maintenance needs.
Intelligent Protection & Monitoring (Optional): Can be equipped with Buchholz relays, pressure relief devices, winding temperature indicators (WTI), and oil temperature indicators (OTI) for comprehensive fault detection and operational oversight.
Flexible Configuration: Available in various standard ratings and tap changer options (off-circuit or on-load tap changers available upon request) to match specific grid voltage regulation requirements.

Below are key technical specifications for standard models (Custom specifications available):

Parameter	Value / Description
Rated High Voltage (HV)	35 kV (Standard)
Rated Low Voltage (LV)	0.4kV, 6.3kV, 10.5kV, 11kV, 33kV (Common Options)
Frequency	50Hz or 60Hz
Vector Group	Dyn11, Yyn0, YNd11, etc. (Customizable)
Insulation Level (LI/AC)	200/85 kV (Typical for 35KV class)
On-load Tap Changer (OLTC)	Optional, typically ±8x1.25% or ±10x1.0%
Standard	IEC 60076, GB 1094 (Equivalent)

Choosing the JDJJ(F)2 translates into tangible benefits for your operations:

Reduced Lifetime Cost: The combination of low guaranteed losses (No-load & Load), high efficiency, and minimal maintenance requirements significantly lowers the total cost of ownership over the transformer's extended lifespan.
Unmatched Operational Security: The comprehensive 10-year warranty provides financial peace of mind, while our responsive global technical support network ensures expert assistance is available for troubleshooting, maintenance advice, or spare parts, minimizing downtime risks.
Proven Grid Stability: Rigorous design, quality materials, and strict manufacturing controls under ISO9001 ensure stable voltage transformation, high short-circuit withstand capability, and reliable performance critical for uninterrupted power supply.
Global Compliance & Adaptability: Designed to meet international standards (IEC) and adaptable to regional specifications, facilitating seamless integration into diverse power systems worldwide. Ports like Shanghai, Tianjin, Guangzhou, and Ningbo ensure efficient logistics.

Trusted by utilities and industries across North America, South America, Eastern Europe, Southeast Asia, Africa, Oceania, the Middle East, and beyond, Jinhua Dika leverages its experience serving a global clientele to deliver robust solutions. Our annual export value of US$1 Million - US$1.5 Million underscores our commitment to international markets and reliable partnerships. The JDJJ(F)2 transformer isn't just a component; it's a long-term investment in the resilience and efficiency of your power infrastructure. Benefit from our manufacturing expertise, stringent quality control, and unwavering post-sales commitment.

Frequently Asked Questions (FAQ):

Q: What exactly does the 10-year warranty cover?
A: Our warranty covers defects in materials and workmanship under normal operating conditions for ten years from commissioning. It includes core components like the windings, core, and tank. Specific terms are detailed in the warranty certificate provided with the transformer.
Q: Is the ISO9001 certification applicable to this specific transformer model?
A: Yes. Jinhua Dika Electrical Equipment Co., Ltd. holds valid ISO9001 certification for its quality management system, which governs the design, manufacturing, testing, and servicing of all our transformers, including the JDJJ(F)2 series.
Q: Can you provide transformers compatible with both 50Hz and 60Hz systems?
A: Absolutely. The JDJJ(F)2 can be designed and manufactured to operate efficiently on either 50Hz or 60Hz power systems. Please specify your required frequency during the inquiry.
Q: What are the standard delivery ports, and what is the typical lead time?
A: We primarily ship from Shanghai, Tianjin, Guangzhou, and Ningbo ports. Standard lead times range from 8-12 weeks after order confirmation, depending on specifications and order volume. Expedited options may be available.
Q: Do you offer technical support for installation and commissioning?
A: Yes, comprehensive technical support is a core part of our offering. We provide detailed installation manuals, and our engineering team is available for remote consultation. On-site supervision for installation and commissioning can be arranged upon request (may incur additional fees).
Q: Are spare parts readily available for the JDJJ(F)2 model?
A: Yes, we maintain an inventory of critical spare parts (like bushings, gaskets, indicators, relays) for the JDJJ(F)2 to ensure prompt support and minimize downtime. A recommended spare parts list is available.
Q: Can the transformer be customized for specific environmental conditions (e.g., extreme cold, high humidity, corrosive atmosphere)?
A: Yes. We offer customization options such as special low-temperature oils, enhanced tank coatings (C5-M), sealed conservator tanks (nitrogen blanket), and higher IP protection ratings to suit harsh operating environments.
Q: What testing is performed before shipment?
A: Every JDJJ(F)2 undergoes rigorous routine tests as per IEC 60076 standards, including but not limited to: Turns Ratio Test, Resistance Measurement, Insulation Resistance Test, Dielectric Tests (Separate & Induced), No-Load Loss & Current Test, Load Loss & Impedance Test. Optional special tests (e.g., temperature rise, sound level) are available.
