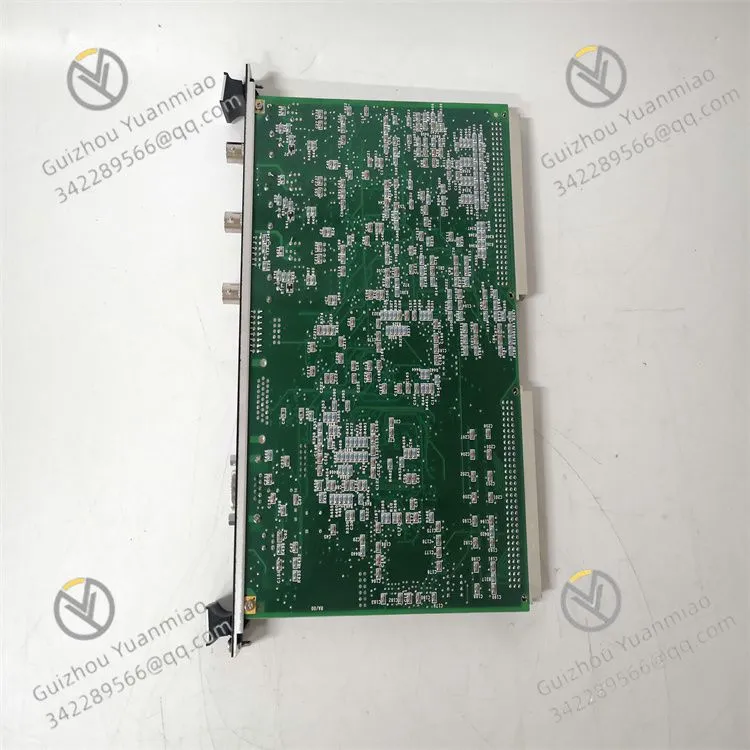

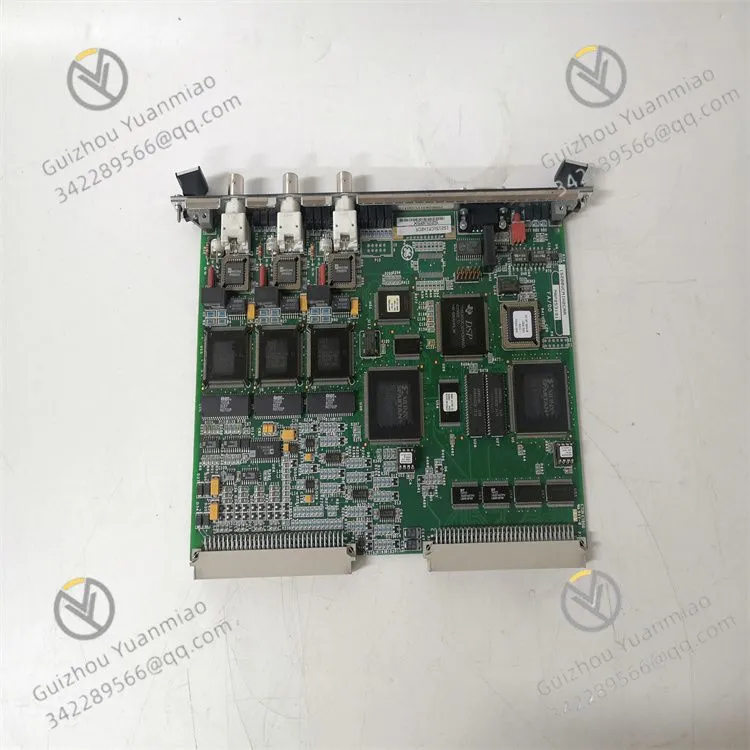

GE IS200VCMIH2BCC is a VME communication interface board that falls under the category of VME I/O boards. It features a multi-layer PCB design equipped with SMD components and connectors, integrating both communication control and I/O signal interaction functions. It offers high reliability, high-speed data transmission, multi-channel communication, and strong anti-interference capability. Designed specifically for the Mark VI steam and gas turbine management system and industrial automation control systems, it serves as an internal communication control card that enables interconnection and communication between I/O cards within the rack and across modules, acting as a core component ensuring coordinated system operation and data exchange.
1. Positioning and System Relationship
System Affiliation
Belongs to the GE Speedtronic Mark VI series, model IS200VCMIH2BCC, classified as a VME Communication Board. Manufactured by GE General Electric, it is one of the core components of the Mark VI turbine management system. As an important part of the “Speedtronic” series, the Mark VI system has been widely used in steam and gas turbine management since the 1960s. It complies with ISO-9000-3 quality management standards and relevant guidelines for software development, supply, and maintenance, and supports high-speed networked I/O requirements for simplex, dual-redundant, and triple-redundant systems.
Designed with a VME architecture, the board is compatible with standard VME racks and conforms to the Mark VI system architecture specifications. It cannot operate independently and must be installed in the designated slot (Slot 1) of the central control module. It connects with I/O modules, control modules, or protection modules in the system via two backplanes and vertical pin connectors to achieve signal interaction and communication control within the rack and across modules, serving as the “communication hub” connecting all system components. It can also interconnect with other IS200VCMIH2BCC boards of the same model via IONet.
Core Role
Positioned as the “internal communication control core” of the Mark VI system and industrial control systems, its core responsibilities are:
Acting as an internal communication control card to enable communication between I/O cards within the rack or in other control and protection modules, achieving high-speed data transmission and exchange;
Equipped with a Field-Programmable Gate Array (FPGA) and multiple integrated circuits, providing efficient data processing capabilities to ensure accurate communication and control;
Integrating various communication interfaces for flexible connection with in-system modules and external devices, supporting stable operation of redundant systems;
Providing signal monitoring and fault feedback functions for convenient system operation and maintenance support.
Mounting Position
Designed for standard VME rack mounting with a narrow front panel, it fits standard rack sizes widely used in industrial control cabinets and can be securely installed in a VME rack without occupying a dedicated power supply slot.The front of the module integrates multiple core components, including 1 × 9-pin serial port, 3 × DIN connectors (IONet1, IONet2, IONet3), 1 × reset switch, and 20 × LED indicators. All components are clearly labeled for easy wiring and intuitive status indication.The overall layout is double-sided (components mounted on both front and rear sides). The circuit board is a multi-layer PCB with three transformers, more than 50 integrated circuits, over 25 ferrite beads, as well as capacitors, resistors, diodes, and other components distributed on its surface. It features a compact structure, and its modular design allows quick installation, maintenance, and fault replacement, meeting the dense installation requirements of industrial sites.
System Architecture
Integrated into the communication chain of the Mark VI system and industrial control:External devices / sensors → In-system I/O modules → IS200VCMIH2BCC communication board (communication control, data exchange) → Other control / protection modules → Central control system (data processing, command issuance).At the same time, the module interconnects with other boards of the same model via IONet to build a redundant communication network. Its built-in stable communication and control circuit monitors communication status and signal transmission in real time. In case of abnormalities, it can be reset via the reset switch or send fault feedback, forming a complete closed loop of “signal interaction – communication transmission – status monitoring – fault handling” to ensure coordinated and stable operation of the entire control system.
2. Functions and Technical Features
1. High-Speed Communication Control and Data Exchange
Core communication function: As an internal communication control card, it mainly realizes interconnection and communication between I/O cards within the rack and across modules, supporting high-speed networked I/O transmission for simplex, dual-redundant, and triple-redundant systems, ensuring timely and stable data exchange and supporting efficient operation of the Mark VI turbine management system.
Data processing capability: Built-in FPGA (Field-Programmable Gate Array) and more than 50 integrated circuits, providing high-speed data processing to quickly handle various communication data, optimize signal transmission efficiency, and ensure accurate exchange of control commands and monitoring data.
2. Abundant Communication Interfaces and Flexible Connection
Communication interfaces: Integrates multiple core communication interfaces, including 1 × 9-pin serial port, 3 × IONet DIN connectors (IONet1, IONet2, IONet3), two backplanes, two vertical pin connectors, and multiple conductive trace connectors, enabling flexible connection with in-system modules, external devices, and other boards of the same model to meet communication needs in different scenarios.
Network adaptation: Supports IONet network connection and can interconnect with other IS200VCMIH2BCC boards via IONet to build redundant communication links, improving system communication reliability and meeting high-stability requirements in complex industrial control scenarios.
3. High Reliability and Anti-Interference Design
High reliability: Uses industrial-grade high-quality SMD components and passes strict quality inspections. It features high overall reliability, resistance to damage, and long-term stable operation in complex industrial environments. It supports professional repair and refurbishment, including replacement of aging and vulnerable components, reflow soldering to eliminate cold joints, industrial-grade cleaning, and protective coating treatment, which can extend the service life of the board.
Anti-interference design: The module is equipped with three transformers and more than 25 ferrite beads distributed on the circuit board surface, which can effectively suppress electromagnetic interference and ensure stable transmission of communication signals. The multi-layer PCB design optimizes circuit layout to further enhance anti-interference capability, adapting to strong-interference industrial environments.
4. Status Monitoring and Troubleshooting
Status indication: Equipped with 20 LED indicators on the front panel, which display real-time key information such as communication status, module operating status, and interface connection status, providing intuitive feedback on the board’s working condition and enabling operation and maintenance personnel to quickly judge equipment status and locate potential problems.
Fault handling: Features a reset switch to quickly restore operation in case of communication failures or module abnormalities. It supports professional fault detection and repair, which can be completed by specialized personnel using dedicated tools in a controlled environment. All replacement parts comply with industrial-grade standards and pass Functional Verification Tests (FVT), with warranty provided after repair.
5. Industrial-Grade Structure and Environmental Adaptability
Structural design: Adopts a multi-layer PCB with SMD components and dedicated connectors, and a double-sided component layout to fully utilize space, resulting in a compact and highly integrated structure. The narrow panel design meets dense installation requirements in industrial control cabinets while facilitating wiring and maintenance.
Environmental adaptability: Suitable for complex industrial environments, operating stably within standard industrial temperature and humidity ranges. It features good resistance to vibration, dust, and electromagnetic interference, meeting the requirements of most industrial scenarios without additional protection equipment, especially adapting to high-temperature, strong-interference scenarios such as turbine management.
6. Modular Design and Scalability
Modular structure: Features a modular design for easy installation and removal, allowing quick replacement of faulty modules to reduce system downtime and improve maintenance efficiency. The service life of the board can be extended through professional refurbishment, reducing equipment operation and maintenance costs.
Expansion capability: Supports interconnection with other IS200VCMIH2BCC boards via IONet to achieve communication channel expansion and redundant backup. It can work seamlessly with other control modules and I/O modules of the Mark VI series, adapting to simplex, dual-redundant, and triple-redundant systems to meet the communication needs of large and complex industrial control systems.
3. Technical Specifications
Product Identification
Model: GE IS200VCMIH2BCC
Brand: GE General Electric
Manufacturer: GE General Electric
Series: Speedtronic Mark VI Series
Type: VME Communication Board / VME I/O Board
Mounting: VME rack mounting, Slot 1 of central control module
Circuit board type: Multi-layer PCB with SMD components
Warranty: Warranty provided for both new and repaired products (repaired products comply with relevant standards; warranty for new products available upon request)
Core Parameters
Core function: Internal communication control, interconnection of I/O cards within the rack and across modules, supporting high-speed networked I/O transmission
Communication interfaces: 1 × 9-pin serial port, 3 × DIN connectors (IONet1, IONet2, IONet3), 2 backplanes, 2 vertical pin connectors, multiple conductive trace connectors
Processing unit: Built-in FPGA (Field-Programmable Gate Array) and 50+ integrated circuits
Component configuration: 3 transformers, 25+ ferrite beads, SMD components including capacitors, resistors, diodes, etc.
Installation slot: Slot 1 of central control module
Status indication: 20 LED indicators
Fault handling: Onboard reset switch, supports professional fault repair and Functional Verification Test (FVT)
Applicable systems: Simplex, dual-redundant, triple-redundant industrial control systems
Physical and Environmental
Installation location: Standard VME rack, Slot 1 of Mark VI central control module
Physical structure: Narrow panel design, double-sided component layout, multi-layer PCB
Operating temperature: Standard industrial temperature and humidity range, suitable for complex scenarios such as turbine management
Humidity: 5% ~ 95% RH (non-condensing)
Immunity: Strong electromagnetic interference immunity with built-in anti-interference components such as transformers and ferrite beads
Protection class: Industrial-grade protection, suitable for dusty and high-interference industrial sites
Compatibility
Compatible with: GE Speedtronic Mark VI series control systems, standard VME racks, Mark VI steam and gas turbine management systems
Integration: Works seamlessly with other Mark VI control modules and I/O modules; supports interconnection with other IS200VCMIH2BCC boards via IONet; adapts to simplex, dual-redundant, and triple-redundant systems
Incompatible with: Non-VME architecture racks, non-Mark VI series control systems, and non-compatible third-party communication modules
4. Compatible Systems and Supporting Components
Compatible Host Systems
Dedicated compatibility: GE Speedtronic Mark VI series control systems, Mark VI steam and gas turbine management systems
Applicable racks: Standard VME racks, Mark VI central control racks
Applicable scenarios: Coordinated communication between devices and I/O signal interaction in industrial control, especially steam and gas turbine management, power system control, large-scale industrial automation control systems, etc., meeting high-speed communication requirements of simplex, dual-redundant, and triple-redundant systems.
Required Supporting Components
GE Speedtronic Mark VI series control system, standard VME rack
24VDC power supply (for module operation and signal transmission, complying with Mark VI power standards)
Wiring terminals, shielded twisted-pair cables, and dedicated communication cables (for IONet and serial port wiring and signal transmission to reduce communication interference)
In-system I/O modules, control / protection modules (for interconnection communication with the board)
ESD storage box (for storing the board when idle or in transit to protect it from electrostatic damage)
Optional Accessories
Identical GE IS200VCMIH2BCC module (for redundant backup or communication channel expansion to improve system communication reliability)
Surge protectors (for industrial sites with strong interference and large voltage fluctuations to further protect the module and communication links)
Signal isolators (for complex high-interference environments to enhance transmission stability and avoid communication failures or signal distortion caused by interference)
VME rack mounting brackets (for secure installation of the module adapted to different cabinet layouts)
ESD gloves and ESD wrist straps (for electrostatic protection during board installation, removal, and maintenance)
5. Application Scenarios
Turbine management: As the core communication component of the Mark VI steam and gas turbine management system, it enables interconnection and communication between I/O modules and control modules in the turbine control system, transmits operating status signals and control commands, and ensures stable turbine operation in compliance with Speedtronic series requirements.
Power industry: Used in automation control systems of power plants and substations for inter-device communication, I/O signal interaction, and data transmission in redundant systems, ensuring coordinated operation of the power system and meeting high-speed communication requirements of simplex, dual-redundant, and triple-redundant systems.
Petrochemical industry: Applied in automation control systems during oil and gas exploration and processing for communication and signal interaction of remote monitoring equipment, supporting field data acquisition and transmission, and adapting to field, high-temperature, and strong-interference industrial environments.
Manufacturing automation: Used in automated production lines for large-scale machinery manufacturing and heavy equipment, providing communication connections between PLCs, I/O modules, and field devices to achieve coordinated control, signal acquisition, and status monitoring of production equipment, improving the automation level of production lines.
