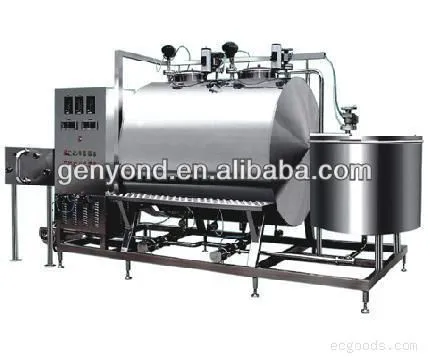

5000 Liters CIP Cleaning Machine

US$ 12000.00 ≥1 Set

Key Specifications

Certification:

CE, CB

cleaning process:

Acid Cleaning / Pickling

cleaning type:

Clean-In-Place (CIP)

Zhangjiagang Genyond Machine Co Ltd.

1Yr

Payment & Shipping

Payment Methods:

Port of Shipment:

China

Delivery Detail:

Delivery time depends on order quantity.

Certification CE, CB

cleaning process Acid Cleaning / Pickling

cleaning type Clean-In-Place (CIP)

fuel Electric

machine type Other

material 304/316 STAINLESS STEEL

brand name gy

place of origin Shanghai, China

condition New

dimension(l*w*h) 3000X1200X1850

power(w) 2KW

use CIP CLEANING

After-sales Service Provided Engineers available to service machinery overseas

Machine Type Other

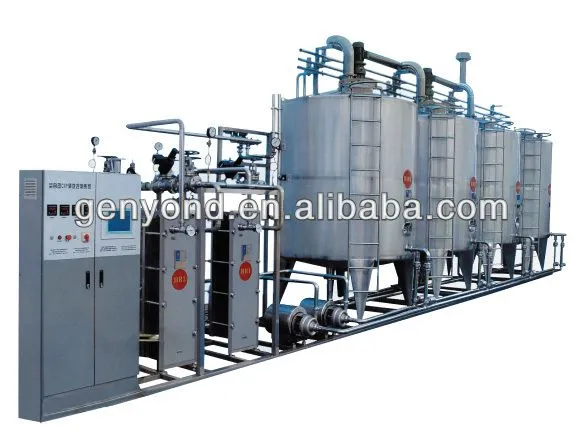

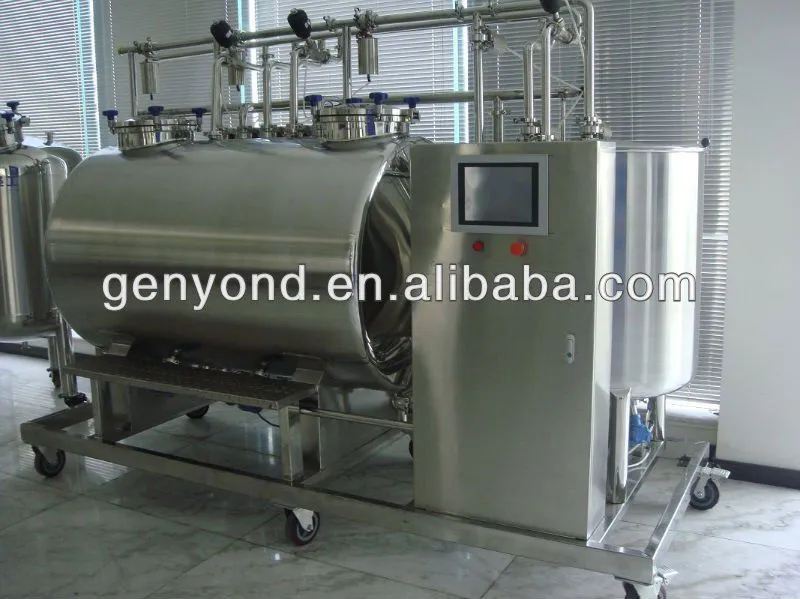

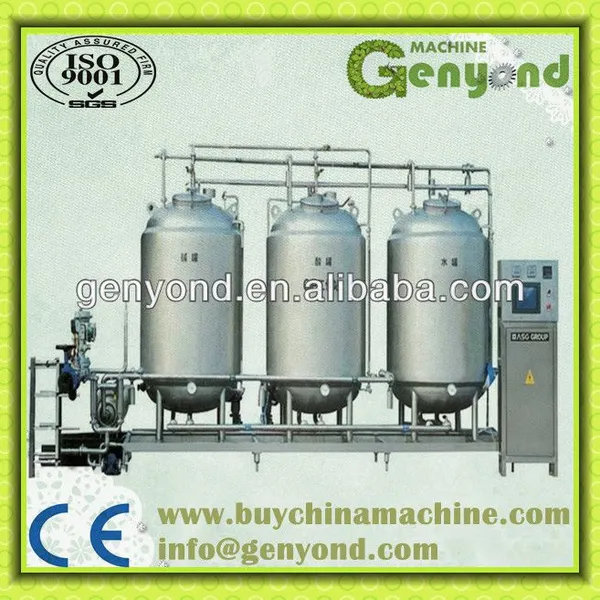

Details about Centrifugal CIP cleaning system:

Usage:

Centrifugal CIP Cleaning System is being used widely in beverage,dairy,liquor,pharmacy,food processing industries,etc;
Centrifugal CIP Cleaning System can be used as a non-resolved production equipment,as well as the simple operated and full-automatic cleaning system.It not only can wash on the spot,but also can restrain the development of microbe;

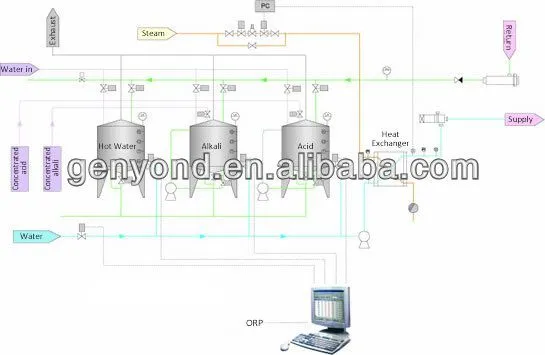

A centrifugal pump is used in centrifugal CIP cleaning system to convey cleansing liquid into mateial pipe and equipment recipients and to force the cleansing liquid to circulate to make cleaning without taking apart pipes or equipment.Improving the availability of equipment and reducing labour intensity.

Advantage:

It can rationalize production planning,enhance production capacity;
Comparing with manual washing,it will not influence the cleaning effect due to the difference of operators,and it can improve the quality of product;
Energy-saving,it can save cleansing liquid,steam,water and production cost;
Three types can be chose by customers---manual,semi-automatic,automatic.

Main technical parameters:

Model	GYCIP-1	GYCIP-2
Acid tan	1000L circular pipe heating	2000L circular pipe heating
Alkali tank	1000L circular pipe heating	2000L circular pipe heating
Water tank	800L circular pipe heating	1600L circular pipe heating
Pump flow (m³/h)	10	10
Pump lift (m)	36	36
Pump power (kw)	3	3
External size (length×width×height(mm)	3000×1200×1850	3200×1400×2000
Weight (kg)	420	480
