homogenizer Introduction
the milk homogenizer adopt pressure through an adjustable current-limiting gap process, the formation of loss of pressure expansion, explosion, shear, combined effect of high-speed collision, the particles and liquid droplets shatter into very small size, while creating an ideal solution or dispersion of emulsion. Product stability, consistency, mixed, and easy absorption, nutritional value, shelf life, flavor, color, security activities are realized in the homogeneous processing.
widely used in food, dairy, beverage, fine chemicals and bio-technology and other fields of production, scientific research and technological development.
homogenizer features
1,Noise of transmission is lower than noise of motor. The pointer of pressure meter is steady, and also the range of swing of pointer is less than 2M Pa.
2,Smashing granularity is between 0.1 micron to 0.2 micron, and their average size≤1 micron.
3,Sealing material can work under less than 150oC, and the parts touching material is made of stainless steel which can stay up to the acid and alkali. All of valves and plungers are made of special material, so they are durable and inexpensive. The bearing is also durable because it is made of special alloy material, which is the more friction, the more hardness.
4,Lubrication of homogenizers is credible, and it only need changing oil the first time when work 800 hours to 1000 hours, since then it need to be changed oil per year later.
5,The higher the pressure the finer the material the more uniform particle size, 30MPA the following models, mainly for liquid - liquid emulsification. Pressure of 30MPA above, on the liquid - solid dispersion of liquid into play when the pressure most of the material up to 60MPA reach 2μm particle size less than when the material reaches 80MPA more obvious when the role is mainly used for ultrafine particles broken Materials to achieve the following general 1μm. As to 100MPA above, can be produced more subtle particles, some of the material particles after repeated high pressure homogenization, 0.1-0.5μm can be prepared the following no-grain materials

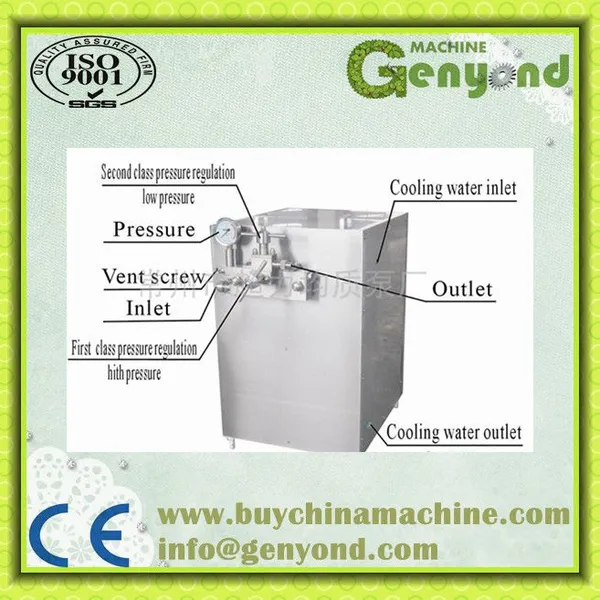

Working principle: through the reciprocating motion of the three plungers, the processed materials are sent to the homogenization valve in the form of high pressure, so that the moment when the materials flow through the small gap between the valve disc and the valve seat are subjected to the combined forces of turbulence, cavitation and shear, and the original rough emulsion is processed into fine, uniform and stable liquid-liquid mixed emulsion or liquid-solid dispersion. The average fineness of emulsification is less than 1um, and the average particle size of solid dispersion is less than 2um. It integrates the functions and principles of internal jet, ultrasonic homogenizer, chest mill and ball mill. After high pressure homogenization, the material has many advantages: high stability, reducing stratification, improving storage quality, accelerating reaction time, saving additives, etc.
homogenizer model list
|
Name |
type |
Rated flowL/H
|
Rated pressure Mpa |
Working pressureMPa |
Weight |
Size (cm) |
Power Kw
|
|
High pressure homogenizer |
GJB500-25 |
500 |
25 |
0~20 |
670 |
100×75×110 |
5.5 |
|
GJB1000-25 |
1000 |
25 |
0~20 |
670 |
100×75×110 |
7.5 |
|
|
GJB1500-25 |
1500 |
25 |
0~20 |
720 |
100×75×110 |
11 |
|
|
GJB1000-30 |
1000 |
30 |
0~24 |
720 |
100×75×110 |
11 |
|
|
GJB2000-25 |
2000 |
25 |
0~20 |
1150 |
100×75×110 |
18.5 |
|
|
GJB2500-25 |
2500 |
25 |
0~20 |
1250 |
100×75×110 |
22 |
|
|
GJB3000-25 |
3000 |
25 |
0~20 |
1350 |
100×75×110 |
30 |
|
|
GJB4000-25 |
4000 |
25 |
0~20 |
1400 |
100×75×110 |
37 |
|
|
GJB5000-25 |
5000 |
25 |
0~20 |
2000 |
100×75×110 |
45 |
|
|
|
|
|
|
|
|
GENYOND MACHINERY INDUSTRIAL GROUP
It has 6 factories in China for food machine and packing machine.
Shanghai Genyond Technology Co Ltd; Zhangjiagang Genyond Machinery Co Ltd
Shanghai Jou Yu industrial Co Ltd; Shanghai Keyfood Machinery Co Ltd
Sino topone machinery; Nantong Yihai Machinery; Kunshan Kpack Machinery
Our products have been exported to more than 160 countries with Annual sales reaching 80 millions in 2022 and it raises by yearly average 10% above.
Genyond machine has more than 100 engineers for the installation of oversea projects.
You just need to give us your idea on final product to be made, processing capacity, way of packing, we will make the proposals for your checking. You can also give us your budget, we can also design a line to meet your budget accordingly.
A satisfying project will be given; A long-term cooperation will come.
