Factory Direct Sale High Quality Evaporator Machine Falling Film Evaporator
US$ 28850.00
1 - 4 Set
US$ 26000.00
≥5 Set
Key Specifications
Get Latest Price
Material:
Stainless Steel
video outgoing-inspection:
Provided
machinery test report:
Provided
Payment & Shipping
Payment Methods:
Port of Shipment:
China
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
Shanghai GENYOND Customized Double Effect Falling Film Evaporator Equipment for SaleUS$ 32800.00 - 35200.00MOQ: 1 Set -
Continuous Sterilization & Concentration Falling Evaporator Double Effect Falling Film EvaporatorUS$ 54200.00 - 57000.00MOQ: 1 Set
-
Enency Saving Low Consumption Evaporating Structure Forced Circulating EvaporatorUS$ 20000.00 - 23400.00MOQ: 1 Set
-
Tomato Paste Automatic Evaporator Machine Forced Circulating Evaporato for SaleUS$ 24200.00 - 25000.00MOQ: 1 Set
-
Concentration Vacuum Evaporator Forced Circulating Evaporator MachineUS$ 36500.00 - 38900.00MOQ: 1 Set
Material
Stainless Steel
video outgoing-inspection
Provided
machinery test report
Provided
core components
PLC, Engine, Bearing, Motor, Gearbox, Pressure Vessel, Gear, Pump
Power Source
Electric
Processing
Evaporator
place of origin
Shanghai, China
brand name
GENYOND
voltage
110V~480V
Power(w)
25KW
dimension(l*w*h)
5000*2500*8500MM
warranty
1 Year
key selling points
Automatic, Easy To Operate, High Productivity, High Safety Level
Weight (KG)
220
Product name
Falling Film Evaporator
Function
Multifunction
After-sales Service Provided
Video Technical Support
Advantage
Low Consumption High Efficiency
Brand
GENYOND
Product Introduce

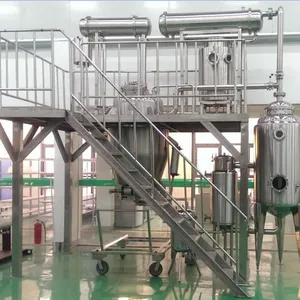

700kg/h Moisture Evaporation Double Effect Evaporator
By adopting the falling film evaporation form, the equipment is used for concentration and evaporation of fruit and vegetable juices and other heat sensitive materials. The equipment is mainly composed of evaporator, separator, condenser etc.
It is characterized by high efficiency of heat conduction, low power consumption etc.
Furthermore, it can widely use the waste heat (such as the drier's hot air and flue gas), the remaining heat (of condensing water, process water and flash steam) to form a waste heat evaporation machine unit.
It is widely used for concentration and dehydration in food, biology, pharmacy, chemical industry etc. The evaporation system can be made up of single-effect,2-effect,3-effect,4-effect,5-effect,6-effect according to the property of compressed material and customer's request. It can be also used together with the forced circulation evaporator and crystallized to deal with the concentration and product crystallization of high viscous and easy scaled material.
It is characterized by high efficiency of heat conduction, low power consumption etc.
Furthermore, it can widely use the waste heat (such as the drier's hot air and flue gas), the remaining heat (of condensing water, process water and flash steam) to form a waste heat evaporation machine unit.
Product Specification
Model |
YHCNS-30 |
YHCNS-600 |
YHCNS-700 |
YHCNS-1250 |
YHCNS-2000 |
||||
Material disposal quantity(kg) |
30 |
600 |
700 |
1250 |
2000 |
||||
Inlet material strength(%） |
≥11.5% |
||||||||
outlet material strength(%） |
45~48% |
||||||||
First effect evaporation temperature(℃） |
68~72 |
||||||||
Steam consumption(kg/h) |
7 |
8 |
9 |
12 |
14 |
||||
Size(m) |
3*1.5*4.8 |
5*2*8 |
5*2.5*8.5 |
5.5*3*8.5 |
5.5*3.*8.5 |
||||
