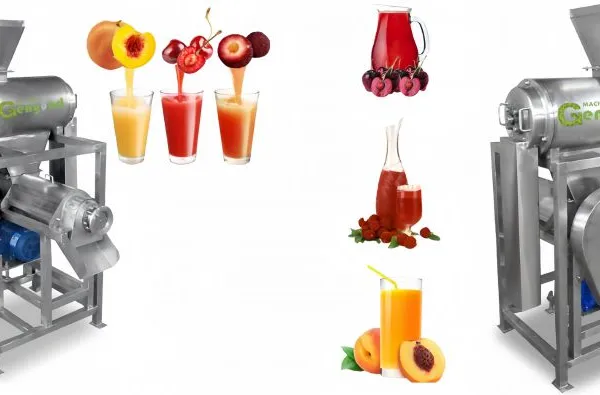

NFC Juice Tomato Pulping and Refining Machine 1000kg/h Capacity High Efficiency Machine
US$ 5200.00
1 - 4 Set
US$ 4800.00
≥5 Set
Key Specifications
Get Latest Price
video outgoing-inspection:
Provided
machinery test report:
Provided
core components:
PLC, Engine, Bearing, Gearbox, Motor, Pressure Vessel, Gear, Pump
Payment & Shipping
Payment Methods:
Port of Shipment:
China
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
Industrial Capacity Juicer Big Promotion High Speed Screw Juice Orange & Apple Juice MachineUS$ 1999.00 - 2350.00MOQ: 1 Set -
Lemon/Mandarin Orange/Pineapple/Passion Fruit Cut HalfJuicer High Juicer Extraction MachineUS$ 3150.00 - 3600.00MOQ: 1 Set
-
Large Capacity Industrial Vacuum Evaporator Tomato Paste Concentration Juice Concentrator EquipmentUS$ 17700.00 - 19800.00MOQ: 1 Set
-
Jam Concentration Forced External Circulation Vacuum Evaporator Sauce Evaporation MachineUS$ 48950.00 - 55000.00MOQ: 1 Set
-
Self-propelled Stainless Steel Double Heads 500 kg Per Hour Automatic Green Banana Peeling MachineUS$ 11960.00MOQ: 1 Set
video outgoing-inspection
Provided
machinery test report
Provided
core components
PLC, Engine, Bearing, Gearbox, Motor, Pressure Vessel, Gear, Pump
place of origin
Shanghai, China
brand name
GENYOND
type
Pulping and refining machine
power(w)
6KW
weight
95 KG
dimension(l*w*h)
1650*1100*1680MM
warranty
1 Year
Application
Fruit and Vegetable
Product name
Pulping and Refining Machine
After-sales Service Provided
Video Technical Support
Advantage
Low Consumption High Efficiency
Raw material
304 Sainless Steel
Capacity
1T/H~15T/H
Processing Types
Fruits Process Equpiment
MOQ
1 Set
Certification
CE/ISO9001
Package
Standard Wooden Case
Product Introduce
Fruit and Vegetable Pulping & Refining Machine
The machine is mainly composed of three rubber counter rollers, one knife roller, two dialing rollers, feed hopper, pulp outlet hopper, skin outlet hopper, frame, transmission and other parts. When working, turn on the power and pour the material into the feeding hopper.
The material first passes between the knife roller and a dialing roller, and is pressed into the knife roller by
another dialing roller for cutting. After cutting, it passes through three After further pressing by the pressure roller, the skin is discharged from the peeling hopper, and the passion fruit pulp with seeds is discharged from the pulping hopper, thereby achieving the purpose of pulping; Except for the transmission part, the equipment is made of stainless steel and food-grade nylon, and the blade is made of imported 440C material.
another dialing roller for cutting. After cutting, it passes through three After further pressing by the pressure roller, the skin is discharged from the peeling hopper, and the passion fruit pulp with seeds is discharged from the pulping hopper, thereby achieving the purpose of pulping; Except for the transmission part, the equipment is made of stainless steel and food-grade nylon, and the blade is made of imported 440C material.
Product Specification
Model |
JL-PR-2 |
JL-PR-5 |
JL-PR-10 |
JL-PR-15 |
|||
Processing capacity(t/h) |
1~2 |
3~7 |
8~10 |
10~15 |
|||
Power(KW) |
6 |
15 |
22 |
30 |
|||
Blade rotation speed(m/min） |
1440 |
||||||
Screen aperture(mm) |
0.6~0.8~1.1 |
||||||
Dimensions(mm) |
1650*1100*1680 |
1850*1300*1680 |
2000*1500*1850 |
2200*1800*2100 |
|||
OVERVIEW
Shanghai Genyond Machinery
Genyond machinery industrial group has been in the design and production of equipments on dairy production for more than 20 years.
We have 6 factories in Mainland China now.
We offer turnkey project on the production and packing of pasteurized milk, UHT milk, yogurt, cheese, cream, butter, ghee, ice cream jelly pudding,etc.
We have 6 factories in Mainland China now.
We offer turnkey project on the production and packing of pasteurized milk, UHT milk, yogurt, cheese, cream, butter, ghee, ice cream jelly pudding,etc.
