Home > Packaging & Printing > Packing Machinery > Filling Machine > Automatic Bag in Box Filling and Capping Bib Aseptic Filler for Coconut Water/apple Juice/wine With Vacuum and Nitrogen

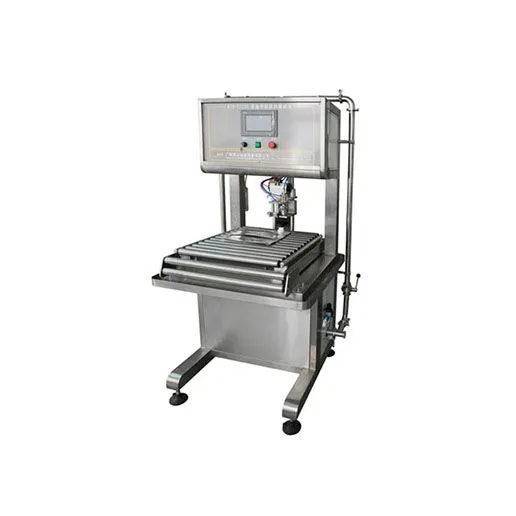

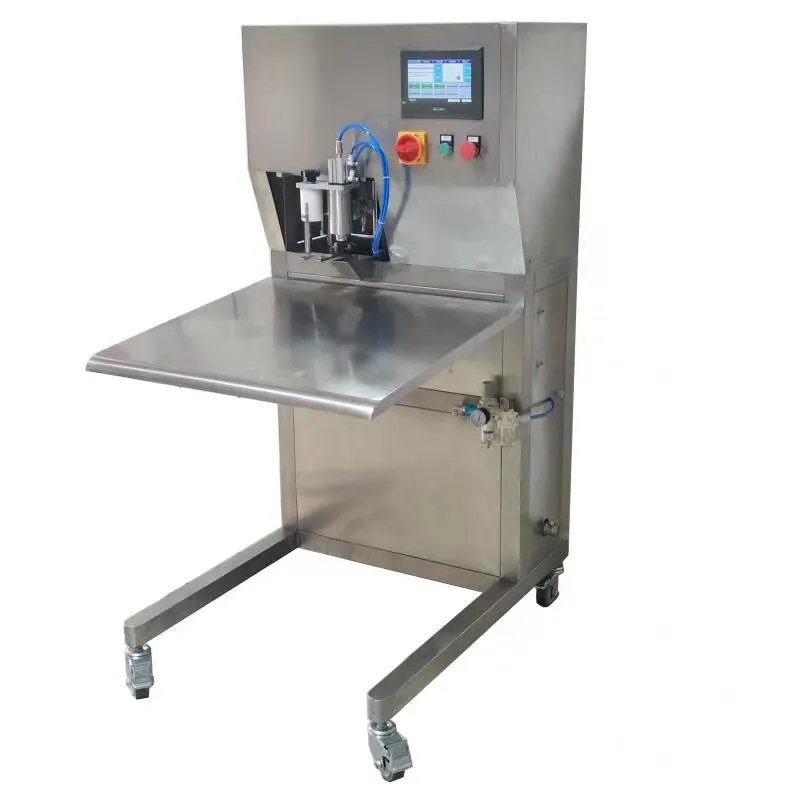

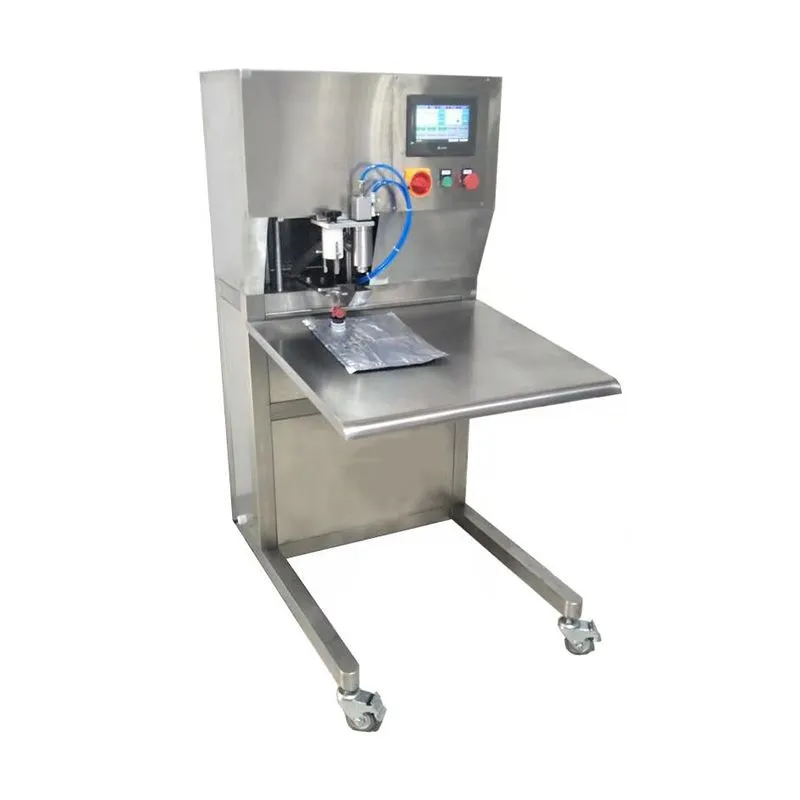

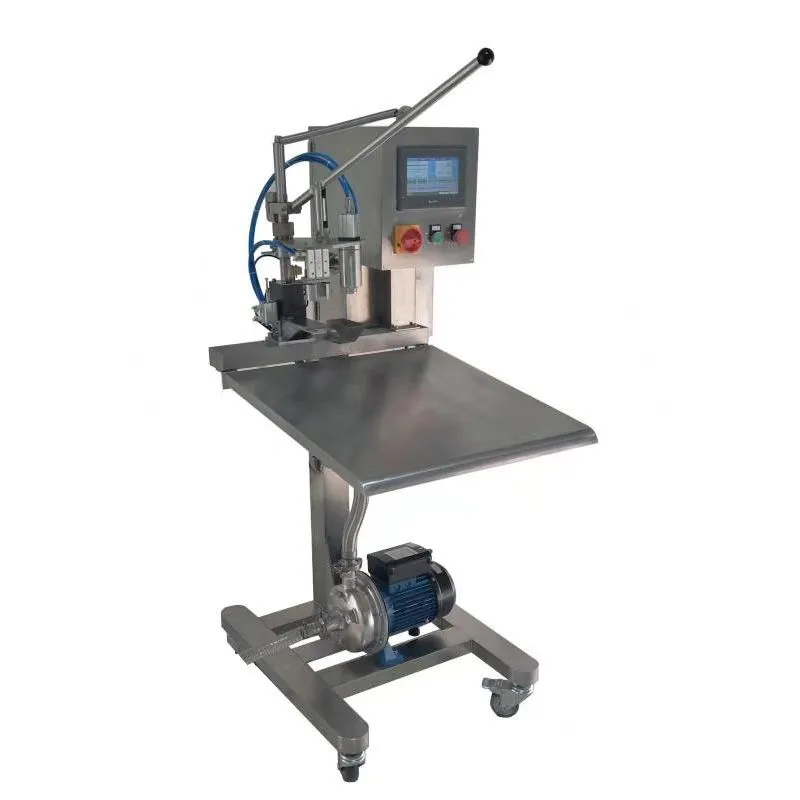

Automatic Bag in Box Filling and Capping Bib Aseptic Filler for Coconut Water/apple Juice/wine With Vacuum and Nitrogen

Automatic Bag in Box Filling and Capping Bib Aseptic Filler for Coconut Water/apple Juice/wine With Vacuum and Nitrogen thumbnail-3

Automatic Bag in Box Filling and Capping Bib Aseptic Filler for Coconut Water/apple Juice/wine With Vacuum and Nitrogen thumbnail-4

Automatic Bag in Box Filling and Capping Bib Aseptic Filler for Coconut Water/apple Juice/wine With Vacuum and Nitrogen thumbnail-5

Automatic Bag in Box Filling and Capping Bib Aseptic Filler for Coconut Water/apple Juice/wine With Vacuum and Nitrogen photo-1

Automatic Bag in Box Filling and Capping Bib Aseptic Filler for Coconut Water/apple Juice/wine With Vacuum and Nitrogen photo-2

Automatic Bag in Box Filling and Capping Bib Aseptic Filler for Coconut Water/apple Juice/wine With Vacuum and Nitrogen photo-3

Automatic Bag in Box Filling and Capping Bib Aseptic Filler for Coconut Water/apple Juice/wine With Vacuum and Nitrogen photo-4

Automatic Bag in Box Filling and Capping Bib Aseptic Filler for Coconut Water/apple Juice/wine With Vacuum and Nitrogen photo-5

US$ 20000.00 1 Set

US$ 17000.00 ≥2 Set

Key Specifications

Get Latest Price

Type:

Filling Machine

application:

Beverage

packaging type:

Bags

Contact Supplier Request Quote Chat Now

Zhangjiagang Genyond Machine Co Ltd.

1Yr

Payment & Shipping

Payment Methods:

Port of Shipment:

China

Delivery Detail:

Delivery time depends on order quantity.

Product Details
Company Profile
Contact Us

application Beverage

packaging type Bags

packaging material Plastic

automatic grade Semi-Automatic

driven type Electric

Voltage 220V 380V

place of origin China

brand name Genyond

dimension(l*w*h) 727*950*1350mm

warranty 1 Year

After-sales Service Provided Online support

Name Bag in box filling machine

Usage Beverage Packaging

Filling material Syrup

Capacity 40-60BAG/MIN

Processing Types Automatic Filling Sealing Production Line

Material Stainless Steel

Control PLC+ Touch Screen

Model GY-B-100

Moq 1set

Certification ISO CE

Applicable Industries Manufacturing Plant, Food & Beverage Factory, Restaurant, Home Use, Food Shop

Condition New

Weight 114kg

Bag In Box Filling Machine

Main use:

The machine is widely used for bag-in-box filling and capping such liquid materials as grape wine, edible oil, fruit juice, additives, milk, syrup, alcoholic beverages, concentrated seasonings and etc.

Main features and performance:

This filling machine employs a flow meter to measure the filling quantity which shares a perfect filling precision;
It is controlled by PLC and touch screen with accurate precision, advanced structure and stable performance;
The parts contacting with the materials are made of high-quality stainless steel which makes the filling machine enjoys a beautiful appearance, environmental friendliness and easy to dismantle, as well as in conformity with GMP standards;
This BIB filling machine can automatically finish a series of processes including pulling out the cap, vacuum pumping, quantitative filling, cap pressing with high automation;
A nitrogen system can be added according to the client’s requirement;
The electric and pneumatic components are products of world-renowned brands with low failure rate, reliable performance and long service life.

Main technical parameters:

Model	GY-B-100
Filling heads	One
Filling range	2-10L, 10L-30L
Filling speed	220-240 bags/h
Power	Pressure :220V/50HZ Power:380W
Filling precision	Above (within)±0.2%
Air pressure	0.4-0.6Mpa
