1. general introduction

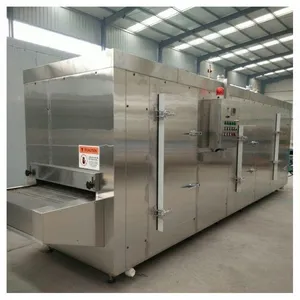

Industrial Tunnel Instant Freezer
This industrial tunnel instant freezer is a kind of individual quick freezing machine with advanced design and excellent performance. It possesses the advantages of energy saving, high efficiency and can preserve the food to the best extent. Its outstanding features are mainly in two aspects: 1. Large freezing area; 2. Wide application. You can freeze the food with different freezing way with this machine, like individual freezing, plate freezing. The industrial tunnel instant freezer uses totally closed air channel structure. The air blows from all direction, thus, improving the freezing efficiency and quality, making the food freezing more perfect.
| Model | Belt size | Machine size |
| SD-S-1000/H | 7000*900mm | 7000*1680*1800mm |
| SD-S-1500/H | 10000*900mm | 10000*1680*1800mm |
| SD-S-2000/H | 13500*900mm | 13500*1680*1800mm |
| SD-S-3000/H | 13500*1350mm | 13500*2080*1800mm |
| SD-S-5000/H | 19800*1350mm | 22000*2080*1800mm |
| SD-S-500/H | 5800*800mm | 5800*1580*1800mm |
2.Application of the industrial tunnel instant freezer:
The industrial tunnel instant freezer is widely used in freezing food in strip , block , flake or pellet shape, such as shrimp, potato chips, asparagus, fish, tubers, dumplings, dumplings, spring rolls, cutted meat, and chicken etc.
3.Features of the industrial tunnel instant freezer:
1. finished product will not stick together, in full compliance with the export of food hygiene standards.
2. uses air convection technic, short freezing time of 3-60 minutes.
3. The air blows from all direction, thus, improving the freezing efficiency and quality, making the food freezing more perfec.
4. Air cooler uses the overall copper tube aluminum set, extending equipment life , improving food hygiene and frozen efficiency .
5. Insulation effect is remarkable, elegant appearance.
