Specifications of gabion cages for slope protection of erosion gullies, gabion cages for bank foundation toe protection, galvanized wire mesh boxes
Lianqi Gabion Cage Mesh Specifications
Standard sizes: 60×80mm, 80×100mm, 100×120mm, 120×150mm, 150*150, 160*160, 180*180. The products use hexagonal mesh holes.
Wire diameter and material of gabion cages
Wire diameter: 2.0 - 4.0mm, the edge wire is 1mm thicker.
Surface treatment of Lianqi Gabion Cages: High galvanizing (30 - 300g/㎡), aluminum-zinc alloy coating (10% - 25% aluminum content) or PVC/PE coating.
Application scenarios

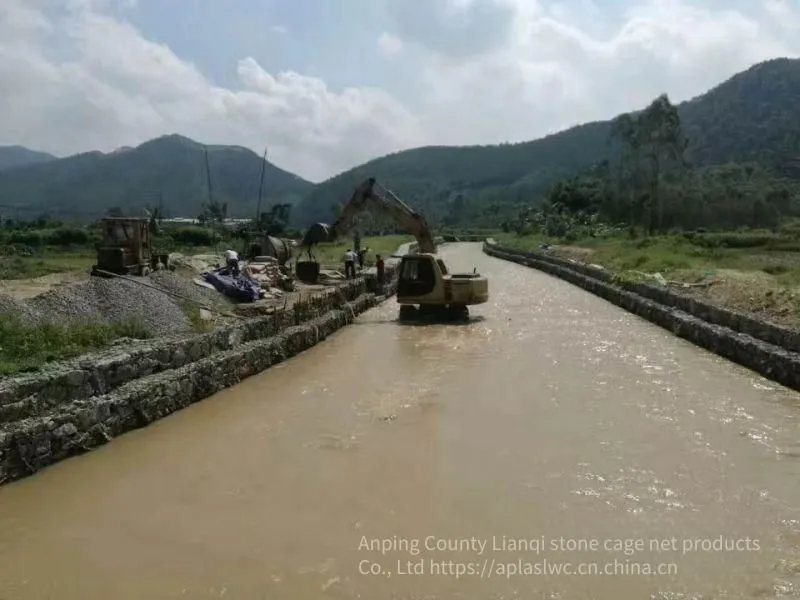

Used for bank foundation toe protection, providing tensile strength (350 - 550MPa) and elongation (≥12%).
The length (e.g., 1.5 - 4 meters) and depth (e.g., 0.5 meters) can be customized to meet the needs of different river banks.
1. Specifications of lead wire cages for erosion gully toe protection

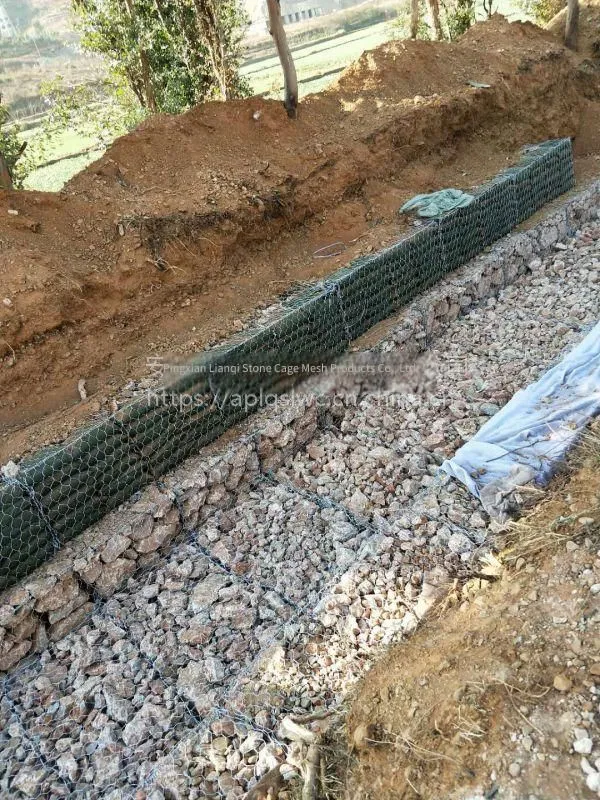

Self-permeable design, promoting water and soil exchange on the bank slope, suitable for ecological protection of erosion gullies.
It can be filled with stones to form a flexible and self-adaptive protection structure.
3. Purchase suggestions
Anti-corrosion treatment: It is recommended to choose zinc-aluminum alloy or high-zinc layer technology for stronger corrosion resistance.
Customized service: Special mesh or edge wire specifications can be requested for erosion gully toe protection. For river bank toe protection, attention should be paid to the standardization of length and depth.
Brand and origin: Manufacturers such as Anping Lianqi Gabion Mesh Products Co., Ltd. in Anping, Hebei, provide a variety of specifications and surface treatment solutions, which can be selected according to needs.
What is the approximate cost of lead wire cages for erosion gully toe protection?
What are the construction steps of lead wire cages for river bank foundation toe protection?
What is the standard cage spacing for lead wire cages in erosion gullies?
