Home > Manufacturing & Processing Machinery > Chemical Equipment & Machinery > Chemical Reactor > Shanghai Genyond Liquid Soap Processing Line Soap Press Machine Small
Shanghai Genyond Liquid Soap Processing Line Soap Press Machine Small
US$ 30600.00
≥1 Set
Key Specifications
Get Latest Price
Type:
soap, Travel Soap Production Line
Capacity:
200kg/h, 100/500/1000/2000/3000 KG/H
place of origin:
Shanghai, China
Payment & Shipping
Payment Methods:
Port of Shipment:
China
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
Shanghai Full Automatic Continous Wax Candle Extruding Extruder Equipment Home Candle Making Machine Production Line Low PriceUS$ 67020.00MOQ: 1 Set -
Automatic Household High Speed Wax Candle Production Line Process Plant Rod Pillar Candle Extruder Making MachineUS$ 67100.00MOQ: 1 Set
-
Fully Automatic Rod Candle Making Machine China Long Candle Making Machines in South AfricaUS$ 67180.00MOQ: 1 Set
-
Automatic Industrial Hot Candle Wax Melting Filler Liquid Water Pouring Filling Making Machine Price Candle Making MachineUS$ 67220.00MOQ: 1 Set
-
High Quality Candle Production Machine Candle Products Making Pressing Machinery With Carved PatternsUS$ 67280.00MOQ: 1 Set
place of origin
Shanghai, China
brand name
Genyond
product type
Soap
weight (kg)
1000
video outgoing-inspection
Provided
machinery test report
Provided
core components
PLC, Gearbox, Motor, Gear
warranty
1 Year
key selling points
Long Service Life
Power (kW)
5
Name
Soap Making Machine
Machine Type
Vacuum Plodder
Product name
Soap
Application
Hotel Soap
Usage
Laundry Soap Stamping Machine
Finally products
Bath Soap
Raw Material
Soap Noddle
After-sales Service Provided
Online support
Product Description
Brief Instruction:
This soap line is used to produce toilet soap with fatty acid content (active content) from 40% to 80%. Material is soap noodles. Capacity is 1000kg/hr. The dimension and pattern of the soap can be made by Customer's requirements.
Raw material :Soap noodle → End-product:Toliet soap /Laundry soap
Processing flow:Raw material → Mixing → Grinding → Plodder → Laundry soap Cutting → Toilet soap Stamping → Toilet soap Freezing → Packing
1. Mixing Agitator Machine
It can mix and stir various raw materials that produce soap and transparent soap fully and evenly,to thin the soap grain and make all sorts of auxiliary material and spice mixed into the soap grain completely.
2. Three-roller Milling Machine(Grinder)
It is used to Mix and grind the soap grain and materials added to improve the density and quality of the soap body.Milling machine equip three rollers in a horizontal direction,raw materials are grinded twice through extruding and grinding by rollers with different speed.
3. Vacuum Duplex Soap Plodder Machine
It is used to refine, exhaust and extrude the after-grinding soap grain to change the molecular arrangement of the soap
body,making them arrange neatly into strips,to be used in molding. This machine adopts the vacuum molding technology,making the (transparent)soap close in structure and not easy to dry.

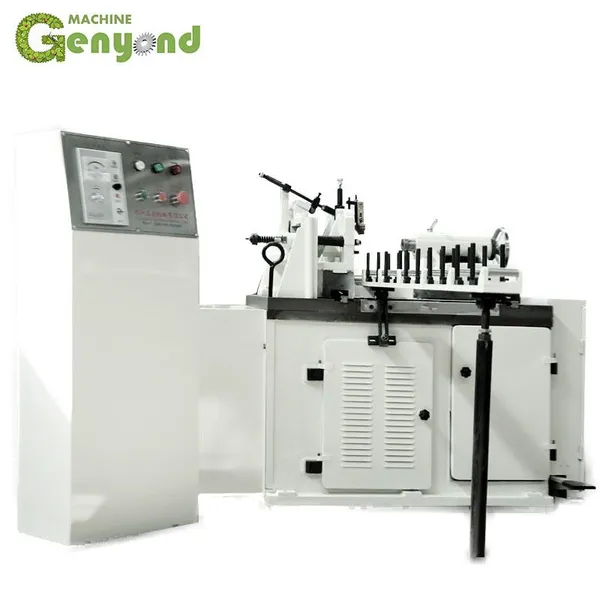

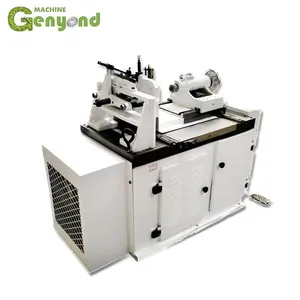

4. Soap Stamping Machine
It used to cut,shape and print the soap,the font of soap are clear, smooth and beautiful.
5. Mold
To control the shape and the weight of the soap.
This soap line is used to produce toilet soap with fatty acid content (active content) from 40% to 80%. Material is soap noodles. Capacity is 1000kg/hr. The dimension and pattern of the soap can be made by Customer's requirements.
Raw material :Soap noodle → End-product:Toliet soap /Laundry soap
Processing flow:Raw material → Mixing → Grinding → Plodder → Laundry soap Cutting → Toilet soap Stamping → Toilet soap Freezing → Packing
1. Mixing Agitator Machine
It can mix and stir various raw materials that produce soap and transparent soap fully and evenly,to thin the soap grain and make all sorts of auxiliary material and spice mixed into the soap grain completely.
2. Three-roller Milling Machine(Grinder)
It is used to Mix and grind the soap grain and materials added to improve the density and quality of the soap body.Milling machine equip three rollers in a horizontal direction,raw materials are grinded twice through extruding and grinding by rollers with different speed.
3. Vacuum Duplex Soap Plodder Machine
It is used to refine, exhaust and extrude the after-grinding soap grain to change the molecular arrangement of the soap
body,making them arrange neatly into strips,to be used in molding. This machine adopts the vacuum molding technology,making the (transparent)soap close in structure and not easy to dry.
4. Soap Stamping Machine
It used to cut,shape and print the soap,the font of soap are clear, smooth and beautiful.
5. Mold
To control the shape and the weight of the soap.
Product Paramenters
Capacity |
100-5000kg/hr |
||||||
Materials |
soap noodle (soap grains), pigment, fragrance |
||||||
Workshop |
above 120 m 2 , L: 20 m, W: 6 m, H: 3.5 m, including operating space, excluding packing machine |
||||||
Power |
45KW, 380V, 50Hz |
||||||
Staff |
3 ~ 6persons |
||||||
Water |
2m3 circulating water |
||||||
Details Images

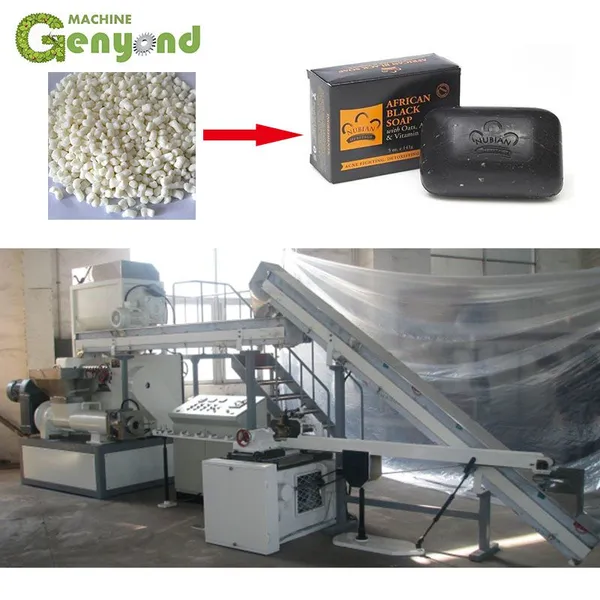

Raw material :Soap noodle → End-product:Toliet soap /Laundry soap
Processing flow: Raw material → Mixing → Grinding → Plodder → Laundry soap Cutting → Toilet soap Stamping → Toilet soap Freezing → Packing
